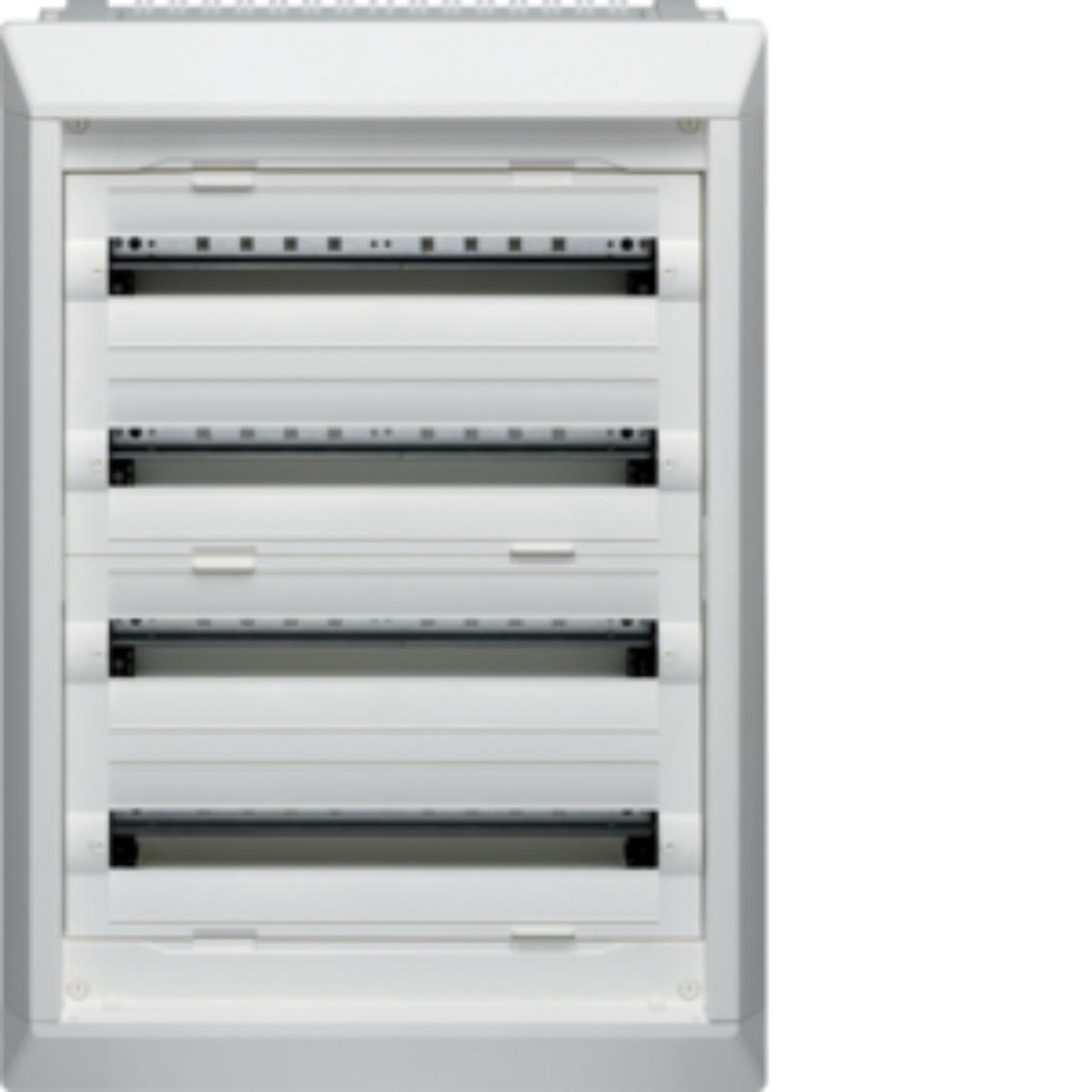

Hager FU42DN Loadcentre, Enclosure NewVegaD, 837x550x150mm, 96 Module, 4 Row, Flush
Code: HAGFU42DN
Unit of measure:
EACH
Description
Hager FU42DN Loadcentre, Enclosure NewVegaD, 837x550x150mm, 96 Module, 4 Row, Flush
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Built-in width | 550 |
| Type of closure | FALSE |
| RAL-number | 9010 |
| Cover model | With notch |
| Transparent cover/door | FALSE |
| Depth | 150 |
| Colour | White |
| Inner depth | 110 |
| Extension possible | TRUE |
| Number of rows | 4 |
| With mounting plate | FALSE |
| Width in number of modular spacings | 24 |
| Height | 837 |
| Housing material | Other |
| Built-in depth | 110 |
| Width | 600 |
| Max. switching power LED | TRUE |
| Built-in height | 837 |
| Type of covering | None |
| Earthing terminal block | FALSE |
| Brand Name | Hager |
| Item Name | Enclosure |
| Number of Modules | 96 Modules |
| IP Rating | IP30 |
| Mounting method | Flush-mounted |
| DIN-rail | FALSE |
| With lock | FALSE |
