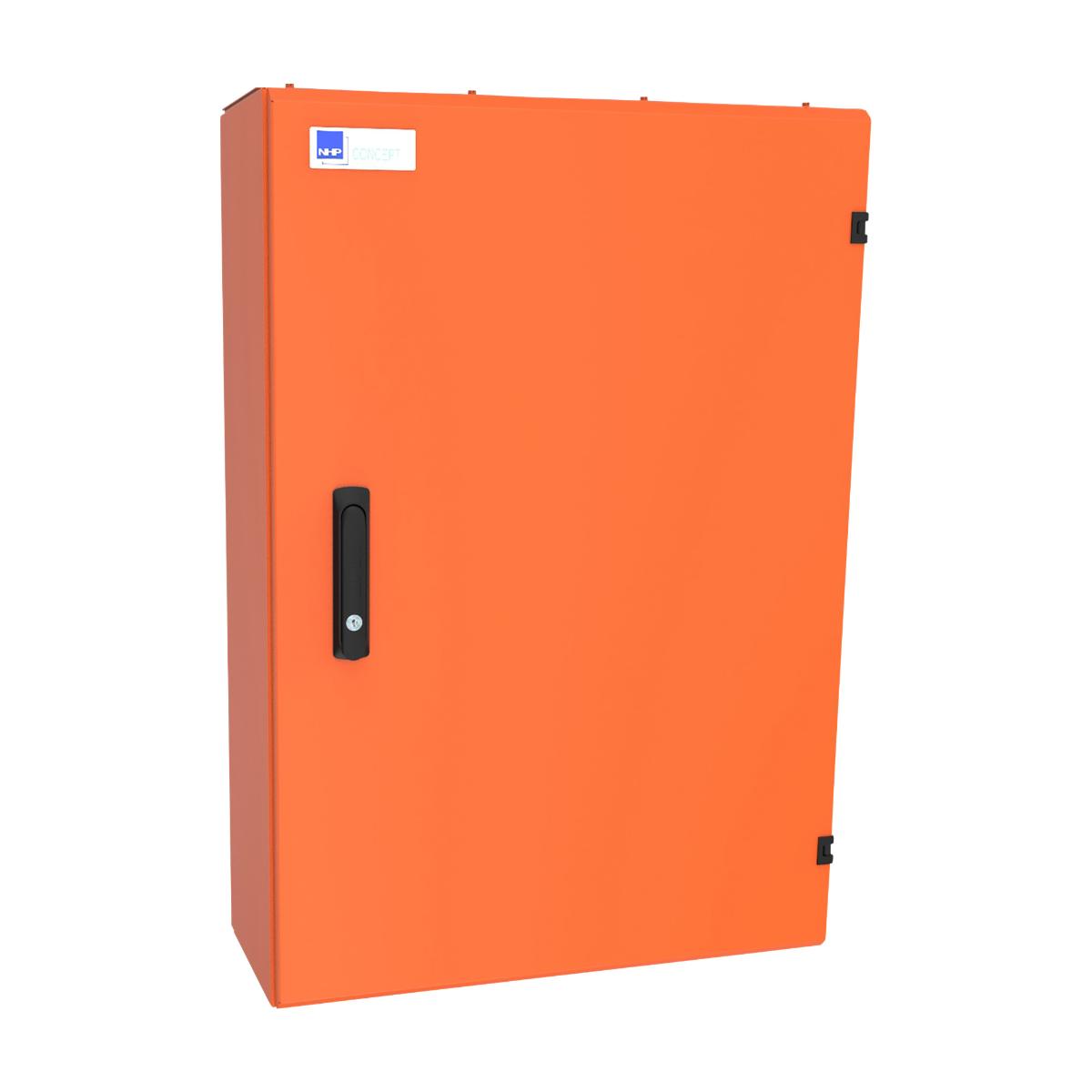

NHP CPR24M250O Concept Premier Panelboard 648mm IP66 DIN-T 24 Way 250A Main Switch Orange
Code: NHPCPR24M250O
Unit of measure:
EACH
Description
NHP CPR24M250O Concept Premier Panelboard 648mm IP66 DIN-T 24 Way 250A Main Switch Orange
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 24 Pole |
| Material housing | Steel |
| Standard | AS/NZS 61439.3 |
| Depth | 240mm |
| Colour | Orange |
| Material thickness | 1.6 mm |
| Rated impulse withstand voltage Uimp | 6kV |
| Impact strength | IK10 |
| Rated current In | 250A |
| Supplier Code | CPR24M250O |
| Number of outgoing ways | 24 |
| Height | 648mm |
| Width | 600mm |
| Type of cover | Door |
| Rated insulation voltage Ui | 500V |
| Number of poles - 18mm pitch | 24 |
| Neutral terminal block | Yes |
| Range | Concept Premier |
| Max. rated operation voltage Ue AC | 415V |
| Spare DIN equipment space (poles) | 18 |
| Earthing terminal block | Yes |
| Thickness | 1.6mm |
| Brand Name | NHP |
| Item Name | Panelboard |
| Number of Modules | 3 Modules |
| Material thickness cover | 1.6 mm |
| IP Rating | IP66 |
| Mounting method | Surface mounted (plaster) |
| ETIM Class | Small distribution board |
| Neutral bar rated current | 250 A |
| With lock | Yes |
| Current | 250A |
