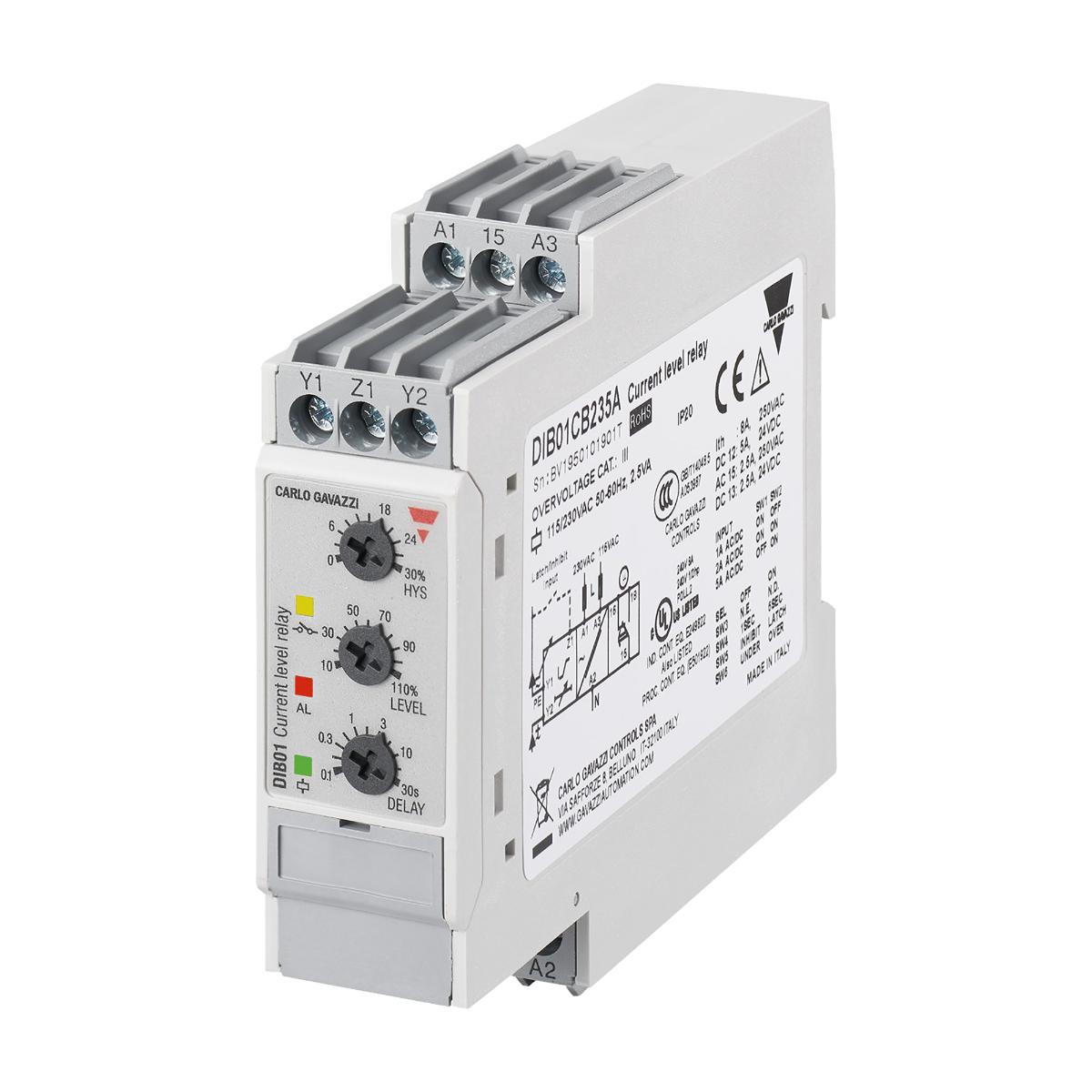

NHP DIB01CD485A Carlo Gavazzi Monitoring Relay Over/Under Current via Int-Shnt 0.1-5A ACDC and 24-48V ACDC 1CO
Code: NHPDIB01CD485A
Unit of measure:
EACH
Description
NHP DIB01CD485A Carlo Gavazzi Monitoring Relay Over/Under Current via Int-Shnt 0.1-5A ACDC and 24-48V ACDC 1CO
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Rated operation current Ie at DC-12 - 24V | 5:00:00AM |
| Type of electric connection | Screw connection |
| Number of contacts as change-over contact | 1 |
| Storage temperature | -30-80°C |
| Voltage type for actuating | AC/DC |
| Material contact | Silver tin-oxide |
| Depth | 99.5mm |
| Weight | 0.15kg |
| Rated control supply voltage Us at AC 50HZ | 24-48V |
| Rated control supply voltage Us at AC 60HZ | 24-48V |
| Brand Name | NHP |
| Suitable for DIN rail mounting | Yes |
| IP Rating | IP20 |
| Rated control supply voltage Us at DC | 24-48V |
| Supplier Code | DIB01CD485A |
| ETIM Class | Current monitoring relay |
| Height | 83.5mm |
| Width | 22.5mm |
| Rated frequency | 45-65 Hz |
