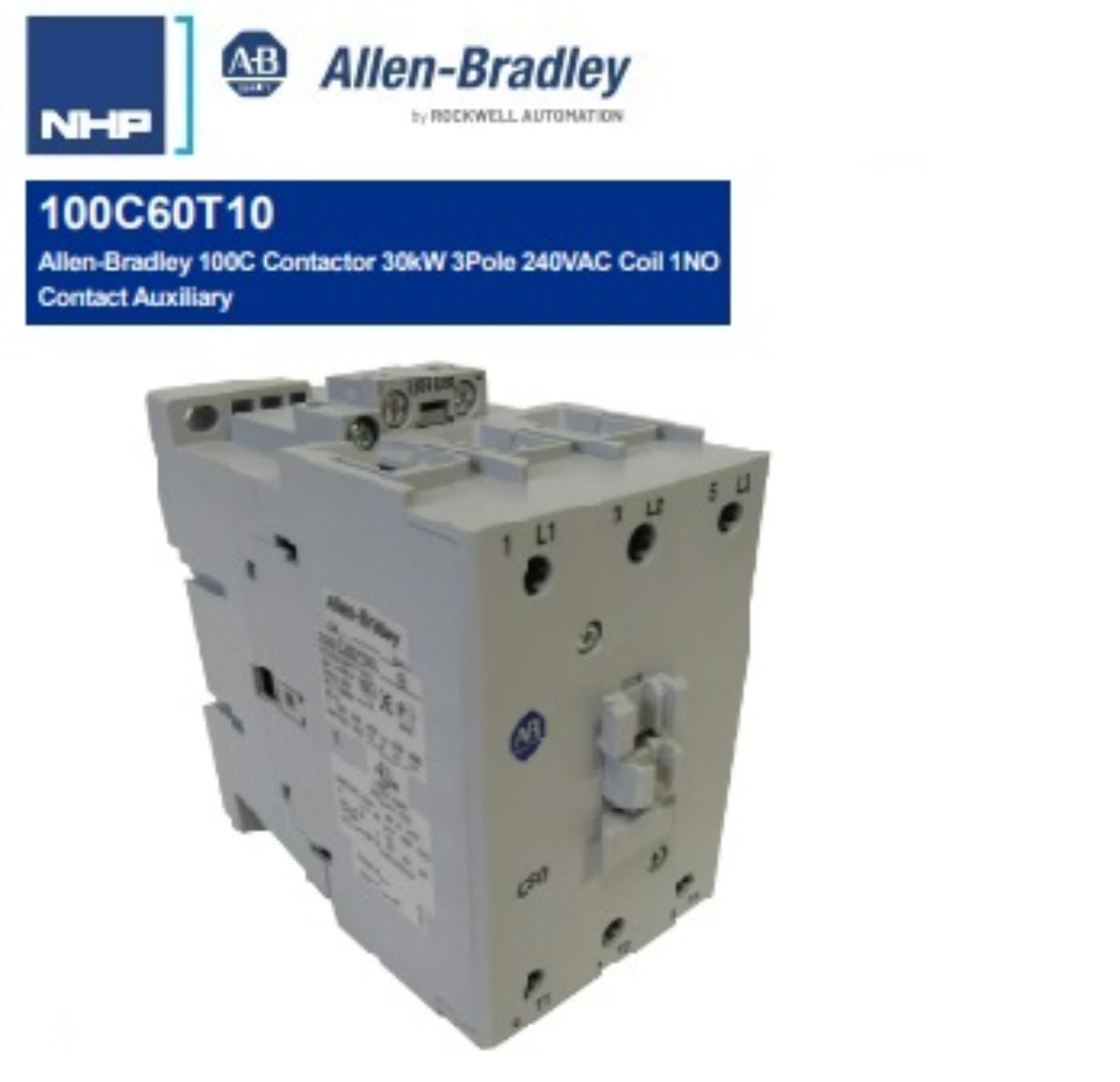

Allen-Bradley 100C60T10, Contactor 30.0kW 3 Pole, 60.0 Amp AC-3, 100C Range,1 N/O Auxilary Contact 240Volt AC Coil DIN-rail/screw Mount
Code: A-B100C60T10
Unit of measure:
EACH
Description
Allen-Bradley 100C60T10, Contactor 30.0kW 3 Pole , 60.0 Amp AC-3 ,100C Range,1 N/O Auxilary Contact 240Volt AC Coil DIN-rail/screw Mount
Contactor 30.0kW 3 Pole , 60.0 Amp AC-3 ,100C Range,1 N/O Auxilary Contact 240Volt AC Coil DIN-rail/screw Mount
Features:
• These energy efficient contactors are designed to control motors and other loads
• Straightforward wiring and installation process ensure quick and easy setup, reducing downtime and increasing productivity.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole |
| Pole Configuration | 3 Pole |
| Range | 100C Range |
| Kilowatt Rating | 30.0kW |
| Brand Name | Allen-Bradley |
| UOM | EA |
| Contact Configuration | 1 N/O Auxilary Contact |
| Length | 122mm |
| Coil Voltage | 240Volt AC Coil |
| UNSPSC | 39121529 |
| Rated Current | 60.0 Amp AC-3 , |
| Height | 126.5mm |
| Width | 81mm |
| Current | 60.0 Amp AC-3 |
