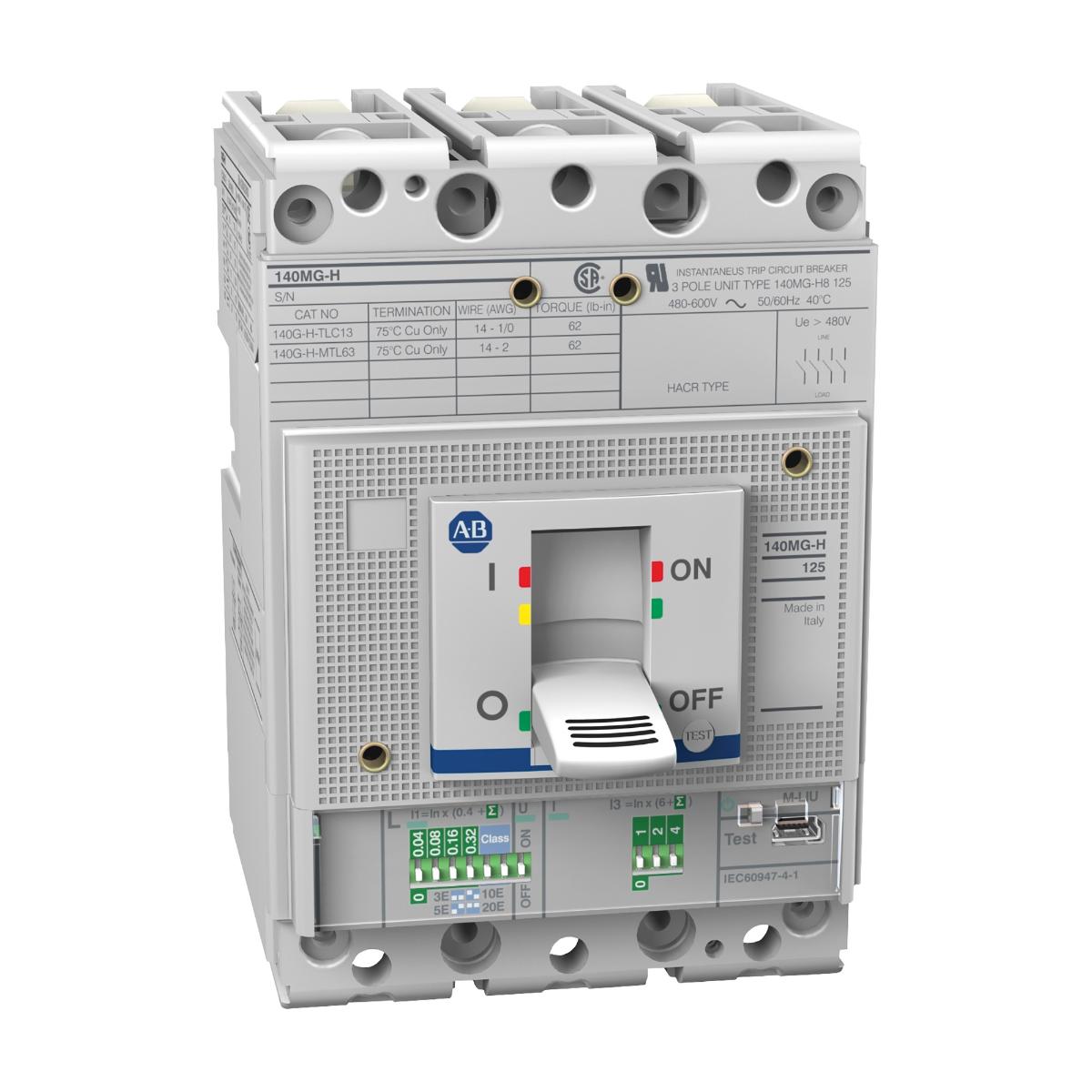

Allen-Bradley 140MGH8ED10 140M Motor Protection Circuit Breaker 70kA 100A
Code: A-B140MGH8ED10
Unit of measure:
EACH
Description
Allen-Bradley 140MGH8ED10 140M Motor Protection Circuit Breaker 70kA 100A
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Type of electrical connection of main circuit | Bolt connection |
| Rated short-circuit breaking capacity lcu at 400V - AC | 70kA |
| Type of control element | Toggle handle |
| Pole Configuration | 3 Pole |
| Max. rated operation voltage Ue | 690V |
| Depth | 82.5mm |
| Weight | 1.2kg |
| Brand Name | Allen-Bradley |
| IP Rating | IP2X |
| Supplier Code | 140MGH8ED10 |
| ETIM Class | Motor protection circuit-breaker |
| Long time overload protection adjustment range | 40-100 A |
| Height | 130mm |
| Rated operation power at AC-3 - 400V | 55kW |
| Width | 90mm |
