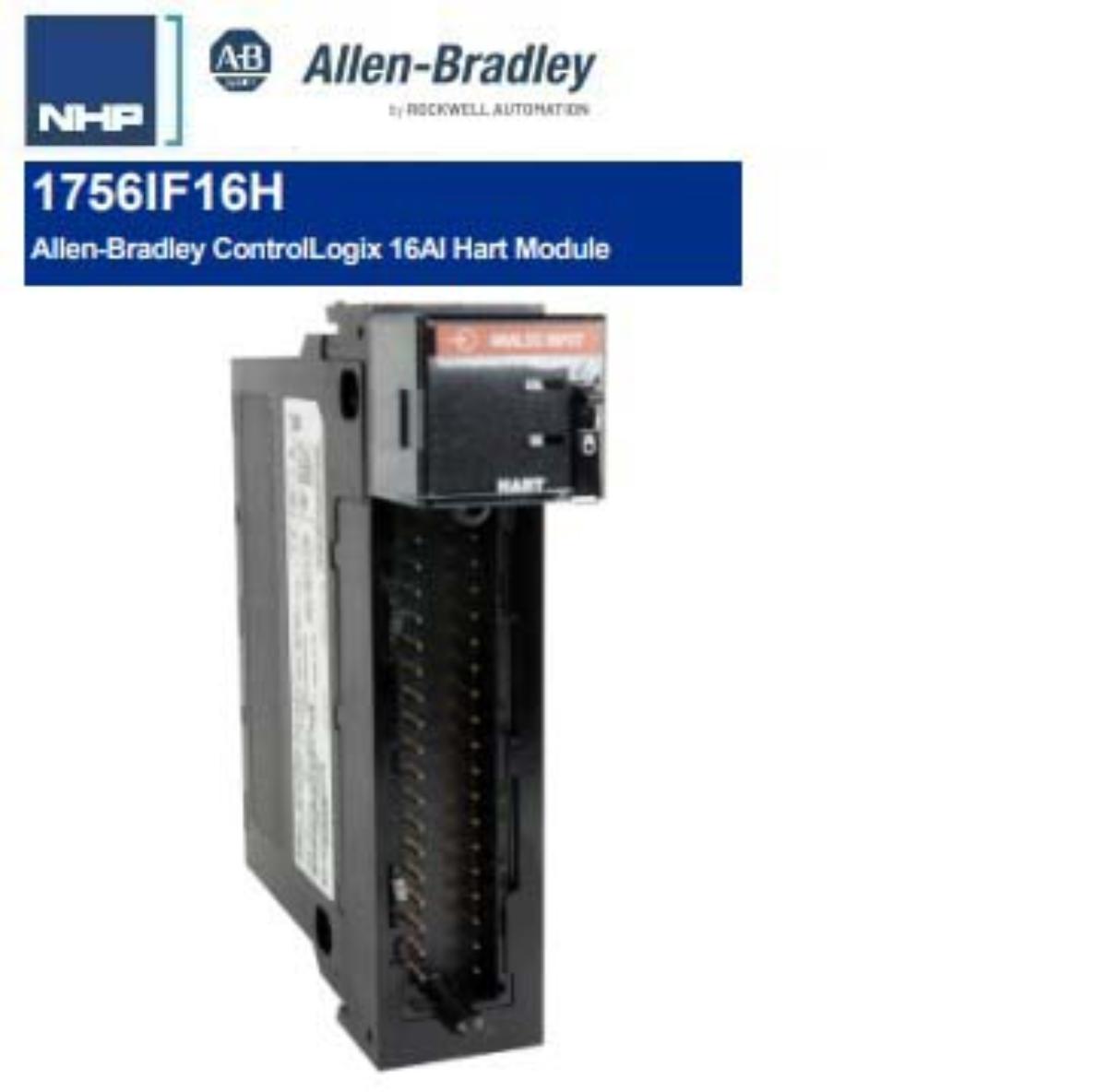

Allen-Bradley 1756IF16H Input Module, ControlLogix HART Series Analog Input, 4…20 mA, 0…20 mA configurable input range 16 Bit Analogue Inputs

Input Module, ControlLogix HART Series Analog Input ,4…20 mA, 0…20 mA configurable input range 16 Bit Analogue Inputs

Features:
• ControlLogix® HART analog I/O modules connect a Logix controller to your process. HART input modules (1756-IF8H, 1756-IF8HK, 1756-IF8IH, 1756-IF8IHK, 1756-IF16H, 1756-IF16HK, 1756-IF16IH, and 1756-IF16IHK) receive signals from process value transmitters and convert them to corresponding measurement values for use in the Logix controller (for example, temperature, flow, pressure, or pH).
• The ControlLogix HART analog I/O modules have built-in HART modems, so there’s no need to install external HART multiplexers or clip-on HART modems. The 1756-IF8H/A and 1756-OF8H/A modules have one HART modem per module. The 1756-IF8H/B, 1756-IF8IH, 1756-IF16H, 1756-IF16IH, and 1756-OF8IH modules have multiple HART modems, one per each channel.
