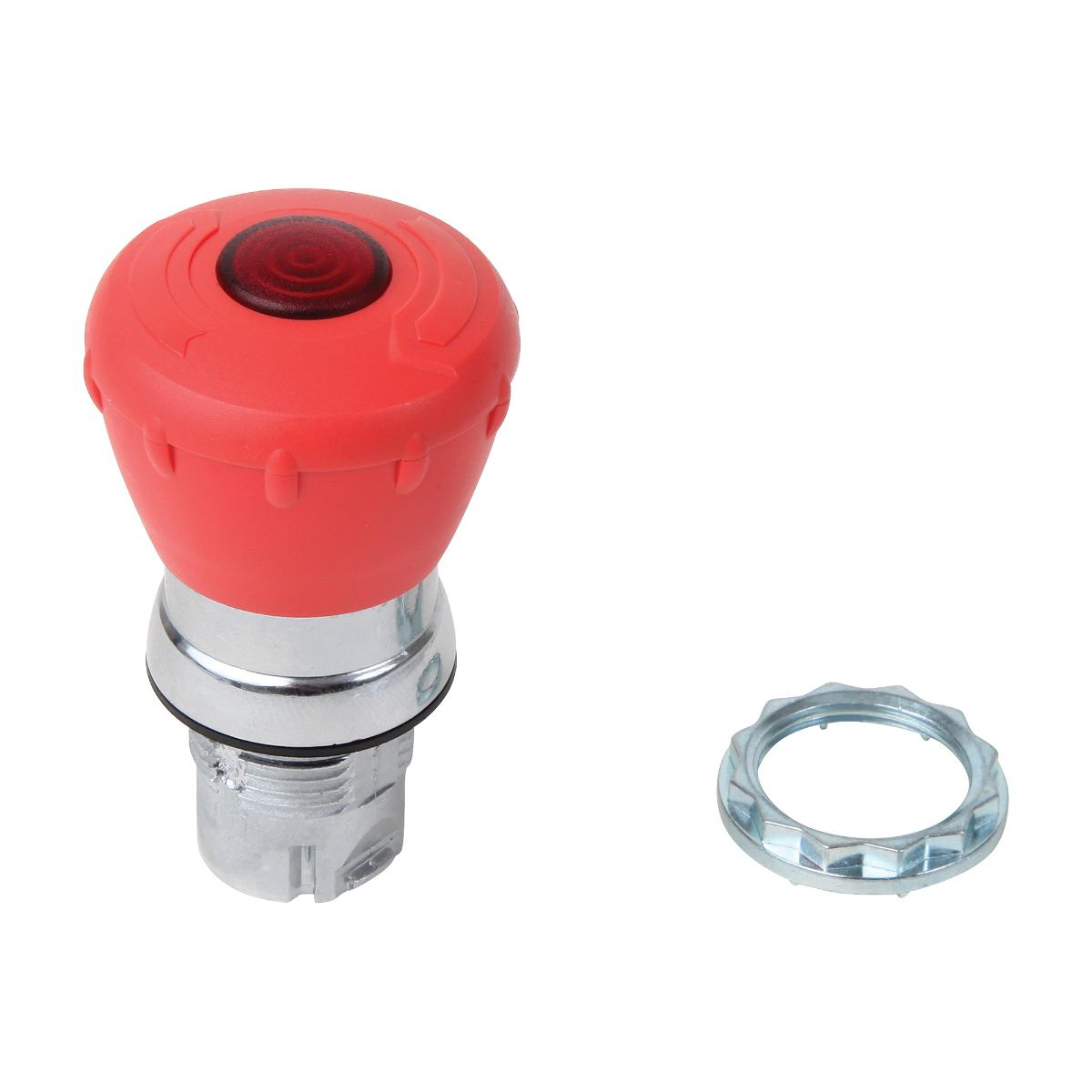

Allen-Bradley 800FMLMT44 800F E Stop 22.5mm Head Only Metal Mushroom Head Twist to Release 40mm Red Illum
Code: A-B800FMLMT44
Unit of measure:
EACH
Description
Allen-Bradley 800FMLMT44 800F E Stop 22.5mm Head Only Metal Mushroom Head Twist to Release 40mm Red Illum
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Max. shock acceleration | 100g |
| Max. vibration frequency - operational | 2000Hz |
| Spring-return | No |
| Colour front ring | Other |
| Mechanical life (service cycles) | 300000 cycles |
| Max. vibration acceleration | 10m/s² |
| Switching function latching | Yes |
| Suitable for illumination | Yes |
| Unlocking method | Turn-release |
| Brand Name | Allen-Bradley |
| Hole diameter | 22.5mm |
| Diameter cap | 40mm |
| Suitable for emergency stop | Yes |
| IP Rating | IP66 |
| Width opening | 30 mm |
| Supplier Code | 800FMLMT44 |
| ETIM Class | Front element for mushroom push-button |
| Height opening | 45 mm |
| Degree of protection (NEMA) | Other |
| Material front ring | Metal |
| Colour button | Red |
| Operating temperature | -25-70°C |
