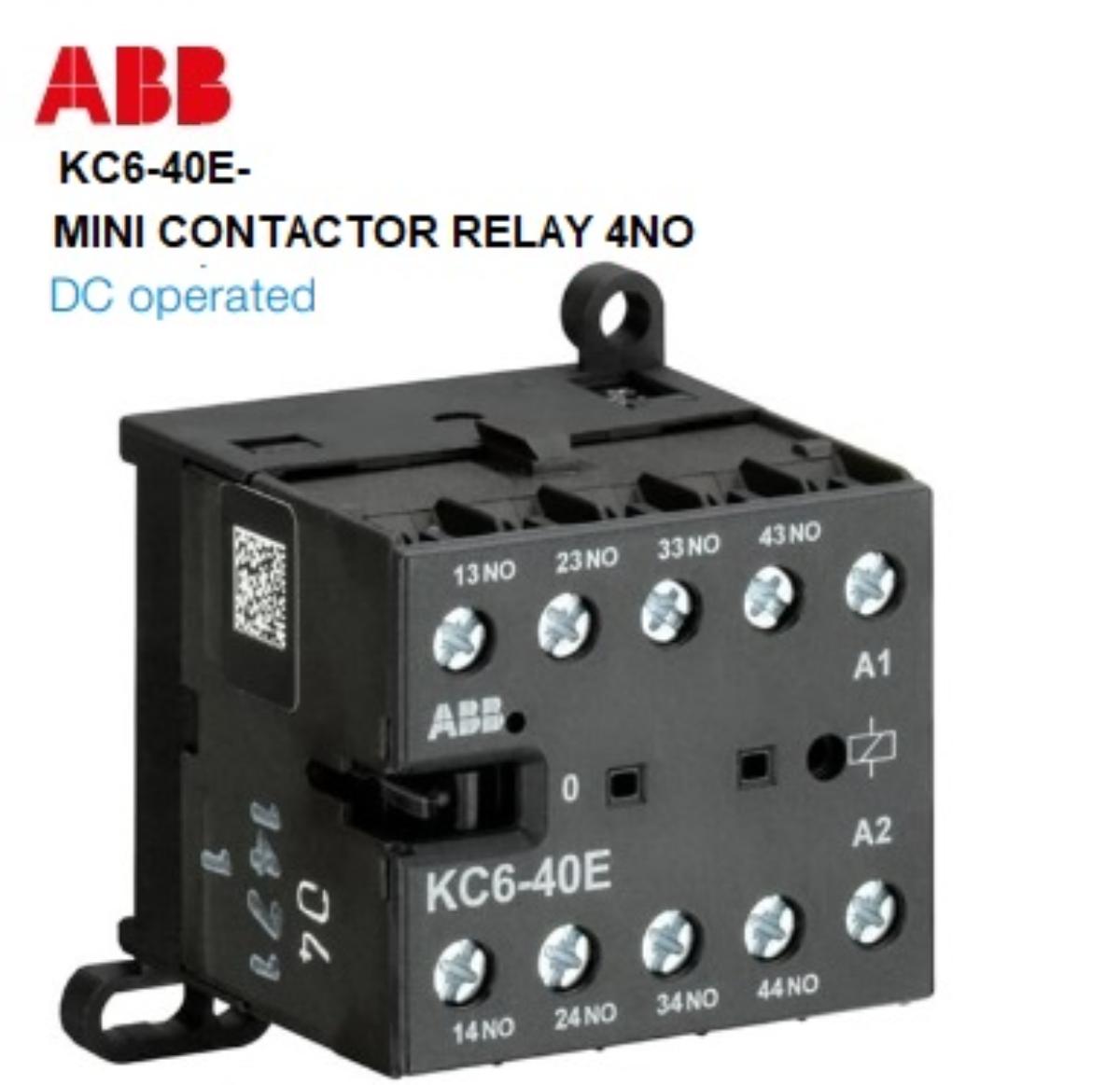

ABB Australia KC640E05 Relay Mini Contactor 4 Pole 4 NO Contacts 220-240VDC
Code: ABBKC640E05
Unit of measure:
EACH
Description
Relay Mini Contactor 4 Pole 4 NO Contacts 220-240VDC
Features:
• KC6 4-pole mini-contactor relays are space optimized control products mainly used for control functions or for small loads up to 4 A.
• Designed for rail or wall mounting
• 4-poles with various contact combinations
• control circuit: DC operated
• low coil consumption (3.5 W at pull-in and at holding)
• hum-free coil
• add-on auxiliary contact blocks for front or side mounting
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Brand Name | ABB Australia |
| Category | Relays & Timers |
| Function Type | Relay |
| Length | 57.5mm |
| Voltage | 220-240VDC |
| Rated Current | 4.0 Amp |
| Height | 46.5mm |
| Range | KC6 Series |
| Contact Configuation | 4NO |
| Width | 52.5mm |
