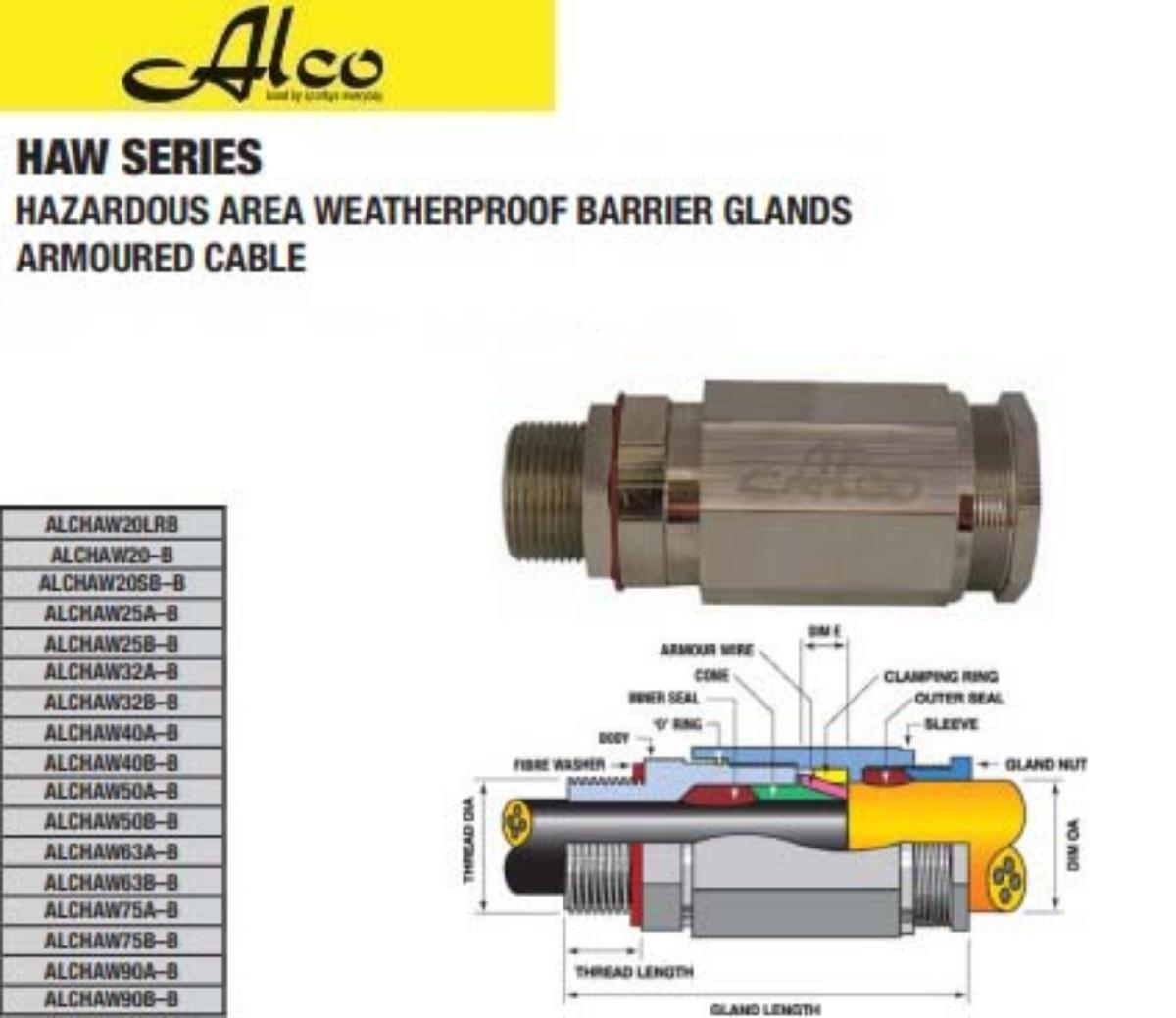

Alco HAW20LRB Gland Hazardous Armoured HAW Series NPB (7.8-12.7mm) M20 x 15mm Thread length, Ex d/e, c/w Washer & Locknut
Code: ALCHAW20LRB
Unit of measure:
EACH
Description
Alco HAW20LRB Gland Hazardous Armoured HAW Series NPB (7.8-12.7mm) M20 x 15mm Thread length, Ex d/e, c/w Washer and Locknut
Gland Hazardous Armoured HAW Series Nickel Plated Brass (NPB) (7.8-12.7mm) M20 x 15mm Thread length, Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, c/w Washer and Locknut
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Finish/Color | Nickel Plated |
| Temperature Rating | -20 to 80 deg C |
| Mounting thread Size (mm) | M20 |
| Cable Type | Armoured cable |
| Category | Hazardous Area Gland |
| Size | 20 mm x 1.5 mm |
| Conductor Size | 5.2 - 8 mm Seal A Inner, 7.8 - 12.7 mm Seal A Outer |
| Dimensions | 64 mm Uncompressed x 53 mm Compressed x 7 mm Exposed Length |
| Standard | AUS Ex 03.3904, Ex d, I/IIC, Ex e, I/II, DIP A21, AS/NZS 60079, AS/NZS 61241.1, AS 1939-1990 |
| Material | Nickel Plated Brass (NPB) |
| Thread Size | 15 mm Length |
| Brand Name | Alco |
| Item Name | Cable Gland |
| Series | HAW Series |
| Type | Hazardous, Weatherproof |
| Tightening Torque | 26 N/m |
| Hexagonal Dimension | 25 mm Across Flat x 27.1 mm Across Corner |
| Cable acceptance details – overall diameter (mm) | 7.8-12.7mm |
| IP Rating | IP66/68 (30m) |
| UNSPCS | 39121431 |
| Seal Material | Thermoset Elastomer |
| Finish | Nickel Plated |
| Environmental Conditions | IP66/68 |
| Mounting thread Length (mm) | 15mm Thread length |
