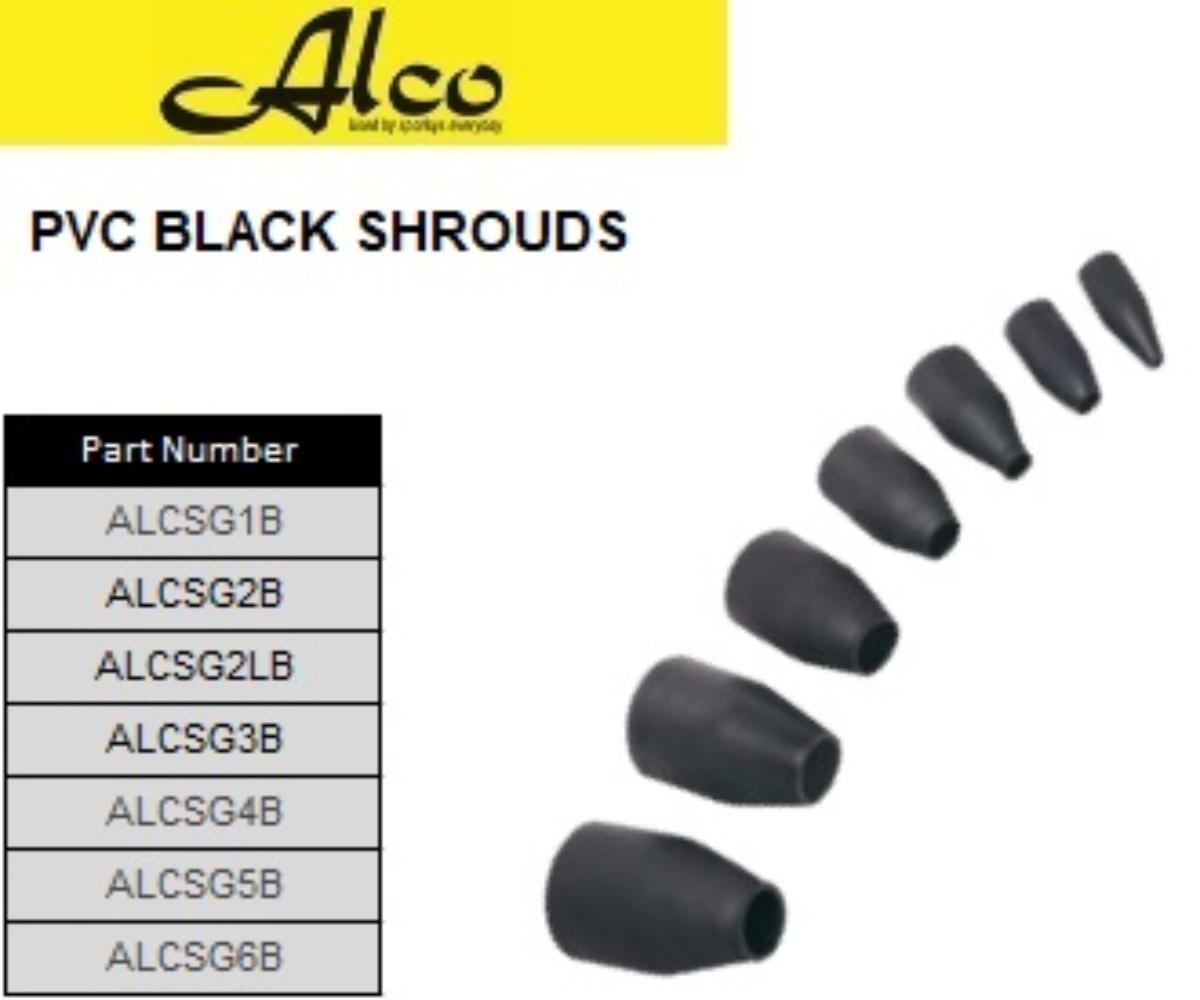

Alco SG2LB Shroud PVC Black Size 2L 12mm Cable Dia. X 35mm Inside Dia. X 87mm (L), Box of 30
Code: ALCSG2LB
Unit of measure:
EACH
Description
Shroud PVC Black Size 2L 12mm Cable Dia. X 35mm Inside Dia. X 87mm (L), Box of 30
Features:
• Assist in providing additional protection to cable glands to improve IP rating
• Act as an extra guard against corrosion and the weather
• Suitable for use with all types of polymeric jacketed cable
• Compatible with all Alco cable gland ranges
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Temperature Rating | 260 deg C |
| Category | Industrial Gland |
| Dimensions | 35 mm ID x 38 mm OD x 87 mm Length |
| Other Physical Dimension | 12 mm Cable Diameter x 55 mm Parallel Length |
| Standard | RoHS |
| Material | PVC |
| Colour | Black |
| Brand Name | Alco |
| Item Name | Cable Gland Shroud |
| EAN/UPC | 2000000024431 |
| Series | SG Series |
| Cable acceptance details – overall diameter (mm) | 12mm Cable Dia. X 35mm Inside Dia. X 87mm (L) |
| Comes with Nut (Y/N) | N |
| UNSPCS | 39121400 |
| Packaging | 30/Box |
