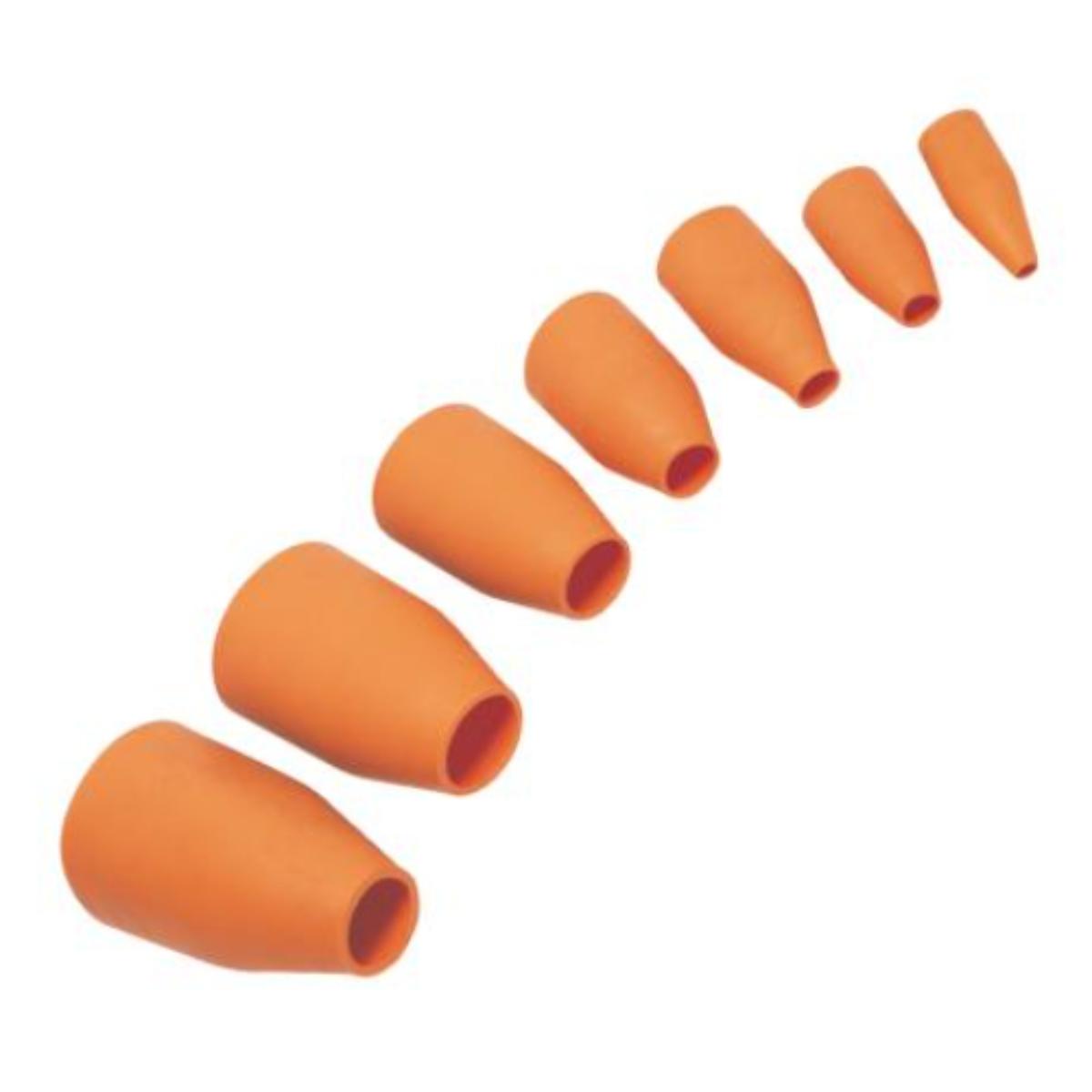

Alco SG6 Shroud PVC Orange 38.0mm Cable Diameter, 126mm Overall length, Inside Diameter 75mm
Code: ALCSG6
Unit of measure:
EACH
Description
Alco SG6 Shroud PVC Orange 38.0mm Cable Diameter, 126mm Overall length, Inside Diameter 75mm
Shroud PVC Orange Size 6 for 38.0mm Cable Diameter, 126mm Overall length, Inside Diameter 75mm, 0°C to +75°C, Box of 5
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Tensile Strength | 12MPa |
| Category | Cable Gland Shroud |
| Relative Density | 1.3g/cm³ |
| Material | PVC |
| Shore A Hardness | 73 ± 2 units |
| Colour | Orange |
| Suitable for | All Types of Polymeric Jacketed Cable |
| Volume Resistivity | 2x1013Ωcm |
| Brand Name | Alco |
| Box Qty | 5 |
| Item Name | Cable Gland Shroud |
| UOM | Metric |
| Length | 126mm |
| Inside Diameter | 75mm |
| UNSPCS | 39121400 |
| Temperature Range | 0 to 75°C |
| Cable Diameter | 38mm |
| Outside Diameter | 78mm |
| barcode | 9318733015613 |
