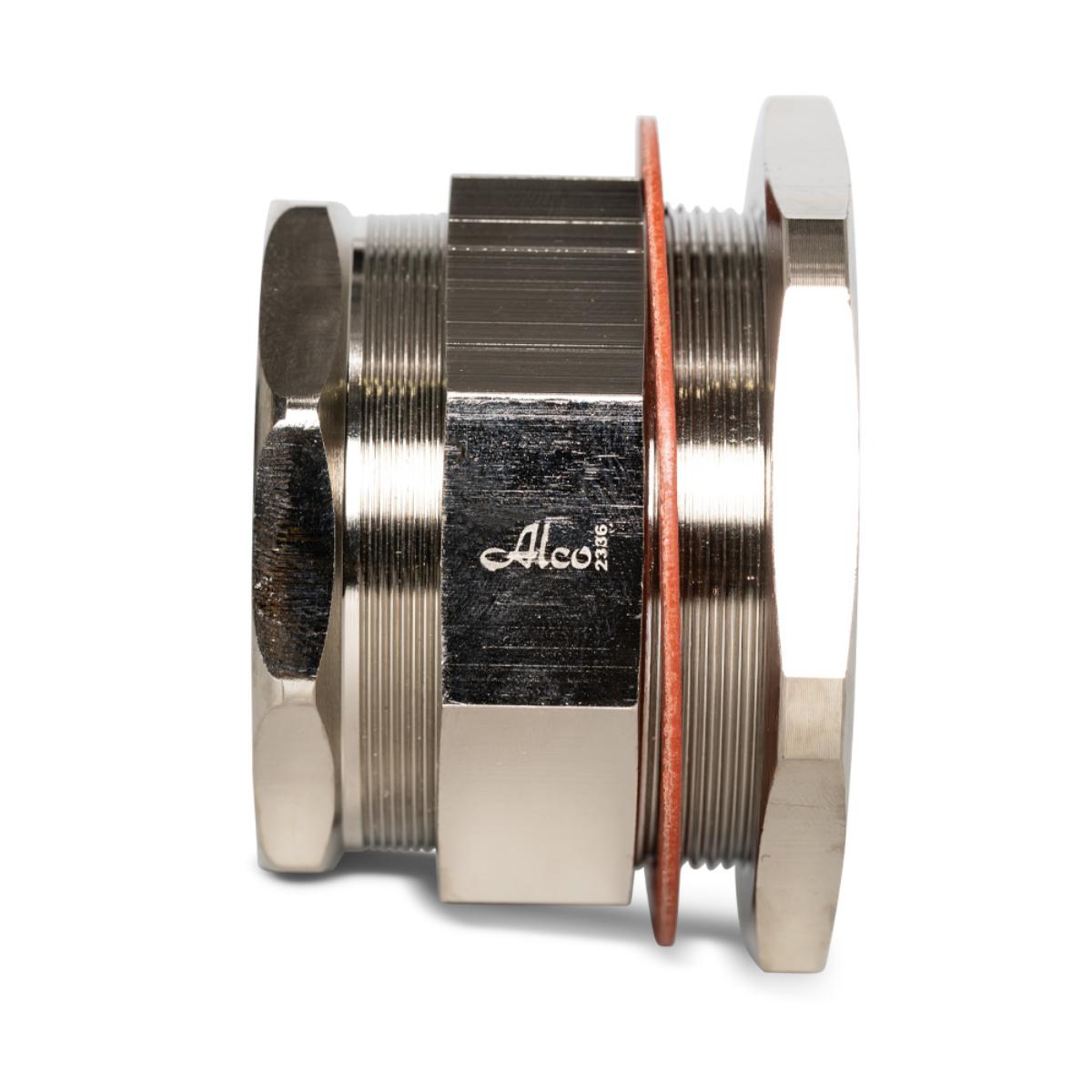

Alco UW63 Gland Industrial GP Unarmoured UW Series NPB (41.5-52.0mm) M63x19mm Thread length c/w Locknut
Code: ALCUW63
Unit of measure:
EACH
Description
Alco UW63 Gland Industrial GP Unarmoured UW Series NPB (41.5-52.0mm) M63x19mm Thread length c/w Locknut
Gland Industrial General Purpose Unarmoured UW Series. Nickel Plated Brass (NPB) Weatherproof IP66/IP68, (41.5-52.0mm) Cable OD M63x19mm Thread length c/w Locknut
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mounting thread Size (mm) | M63 |
| Cable Type | Unarmoured |
| Category | Cable Gland |
| Size | 63 mm x 1.5 mm |
| Compliance Standards and Approvals | AS 1939-1990 |
| Uncompressed Gland Length | 56.5mm |
| Ambient air temperature for operation | -20 to 80°C (Air) |
| Box Qty | 2 |
| Torque Rating | 132Nm |
| Comes with Nut (Y/N) | Yes |
| UNSPCS | 39121431 |
| Seal Material | TPE |
| Finish | Nickel Plated |
| Across Flats Diameter | 67.5mm |
| Finish/Color | Nickel Plated |
| Across Points Diameter | 72.5mm |
| Material | Nickel Plated Brass |
| Brand Name | Alco |
| Item Name | Cable Gland |
| UOM | Metric |
| IP Rating | IP66/68 |
| Pitch | 1.5mm |
| Compressed Gland Length | 45mm |
| Mounting thread Length (mm) | 19mm |
| Application | Indoor or Outdoor |
