Description

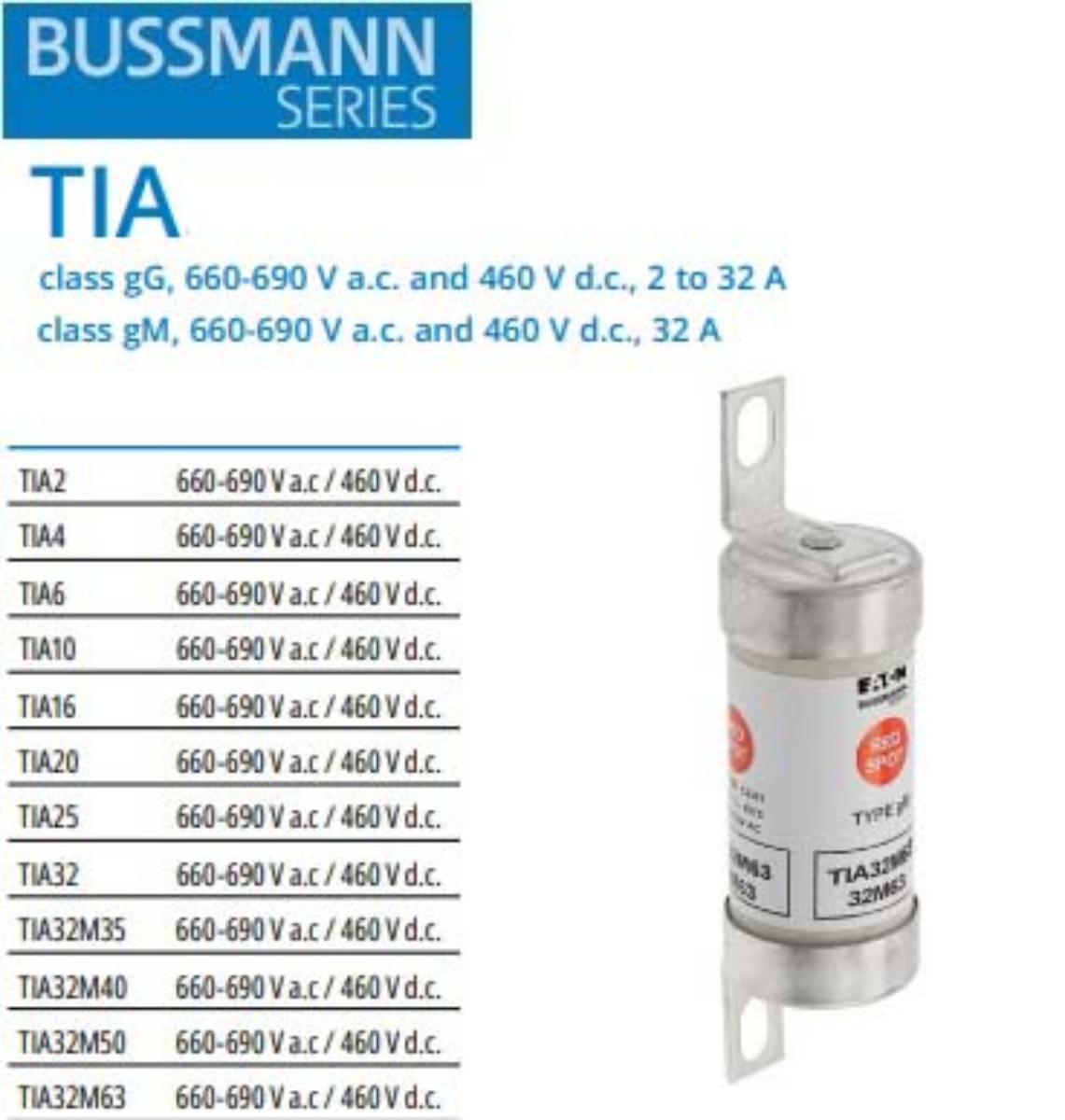

Bussmann TIA32M50 Fuse Cartridge Fuse Link HRC Bolt-In Offset Tag, TIA 32 Amp Motor Start 50 Amp 23mm x 73mm Fixing Centres, 690VAC
Features:
• The element of an HRC fuse is similar to that of a regular fuse.
• It is manufactured from a metal such as silver that is designed to melt at a predetermined temperature.
• When the fuse is operating within it's normal current range, the heat in the element is dissipated without causing any damage to the element.
• HRC Fuses do not deteriorate with age, providing reliable operation.
• Use in fuse-holder RS32/63/RSM, 400293.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Fuses |
| Size | 23mm x 73mm Fixing Centres |
| Utilisation Category | Class gM |
| Fuse Type | HRC |
| Range | TIA |
| Brand Name | Bussmann |
| Mounting | Bolt-In Offset Tag |
| Box Qty | 10 |
| Length | 84mm |
| UNSPCS | 39121606 |
| Breaking Capacity AC (kA) | 80kA |
| Rated Current | 32 Amp Motor Start 50 Amp |
| Width | 23mm |
| Standards and Approvals | BS88: Part 6 |
