Description

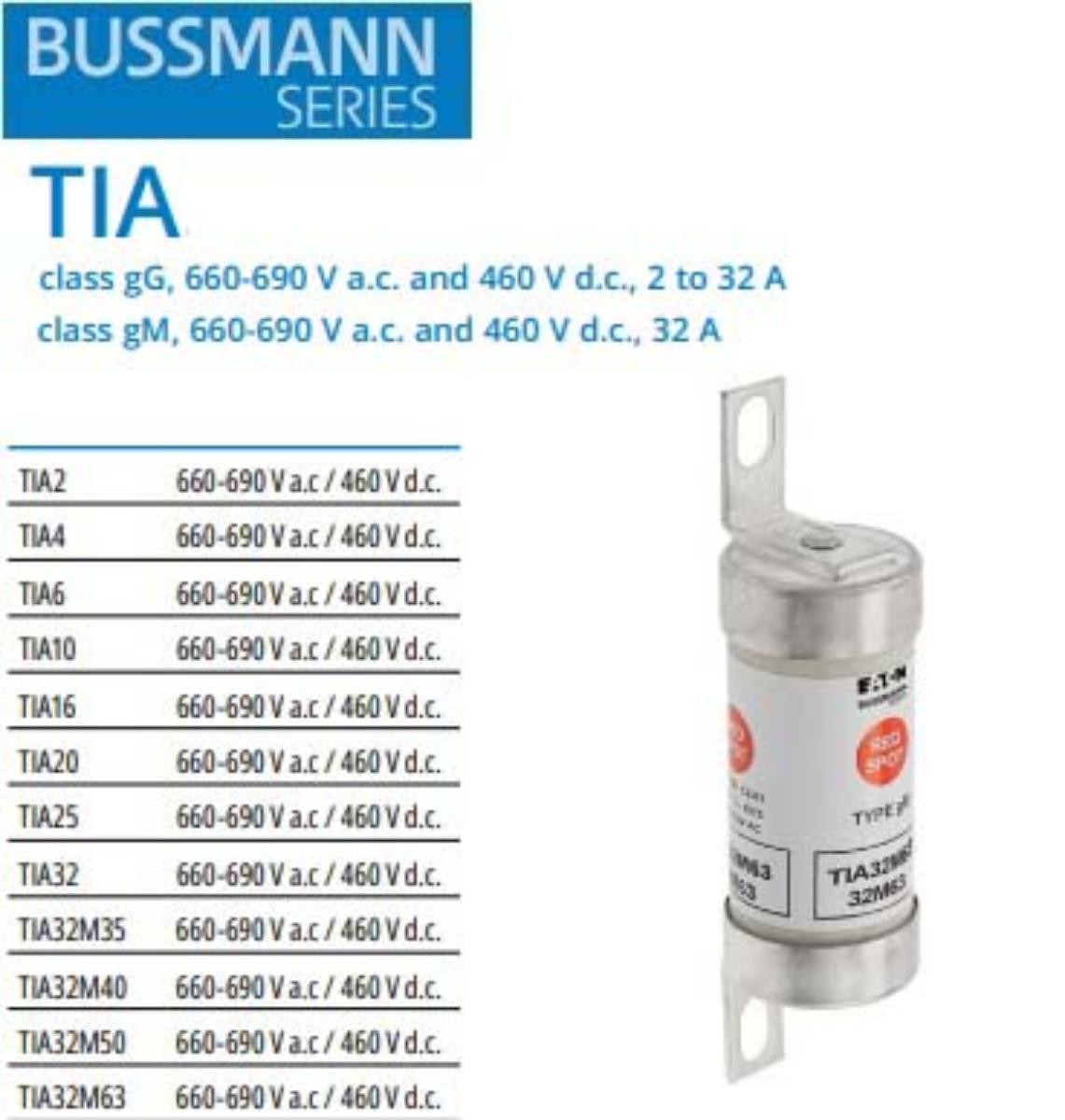

Bussmann TIA32M63 Fuse Cartridge Fuse Link HRC Bolt-In Offset Tag, TIA 32 Amp Motor Start 63 Amp 23mm x 73mm Fixing Centres, 690VAC
Features:
• The element of an HRC fuse is similar to that of a regular fuse.
• It is manufactured from a metal such as silver that is designed to melt at a predetermined temperature.
• When the fuse is operating within it's normal current range, the heat in the element is dissipated without causing any damage to the element.
• HRC Fuses do not deteriorate with age, providing reliable operation.
• Use in fuse-holder RS32/63/RSM, 400293.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Fuses |
| Fuse construction type according to IEC 60269 | A2 |
| Colour code | None |
| Size | 23mm x 73mm Fixing Centres |
| Utilisation Category | Class gM |
| Fuse Type | HRC |
| Type of fuse status indicator | None |
| Box Qty | 10 |
| Rated current | 32 Amp Motor Start 63 Amp |
| Centre-to-centre distance of connections | 73 |
| Breaking capacity | 80 |
| UNSPCS | 39121606 |
| Breaking Capacity AC (kA) | 80kA |
| Width | 23mm |
| Standards and Approvals | BS88: Part 6 |
| Rated voltage AC | 660 |
| Mounting holes | M5 |
| Fuse system according to IEC 60269 | Fuse system E |
| Range | TIA |
| Brand Name | Bussmann |
| Mounting | Bolt-In Offset Tag |
| Length | 84mm |
| Type of current | AC/DC |
| Rated voltage DC | 460 |
| Utilization category | gM (motor protection) |
