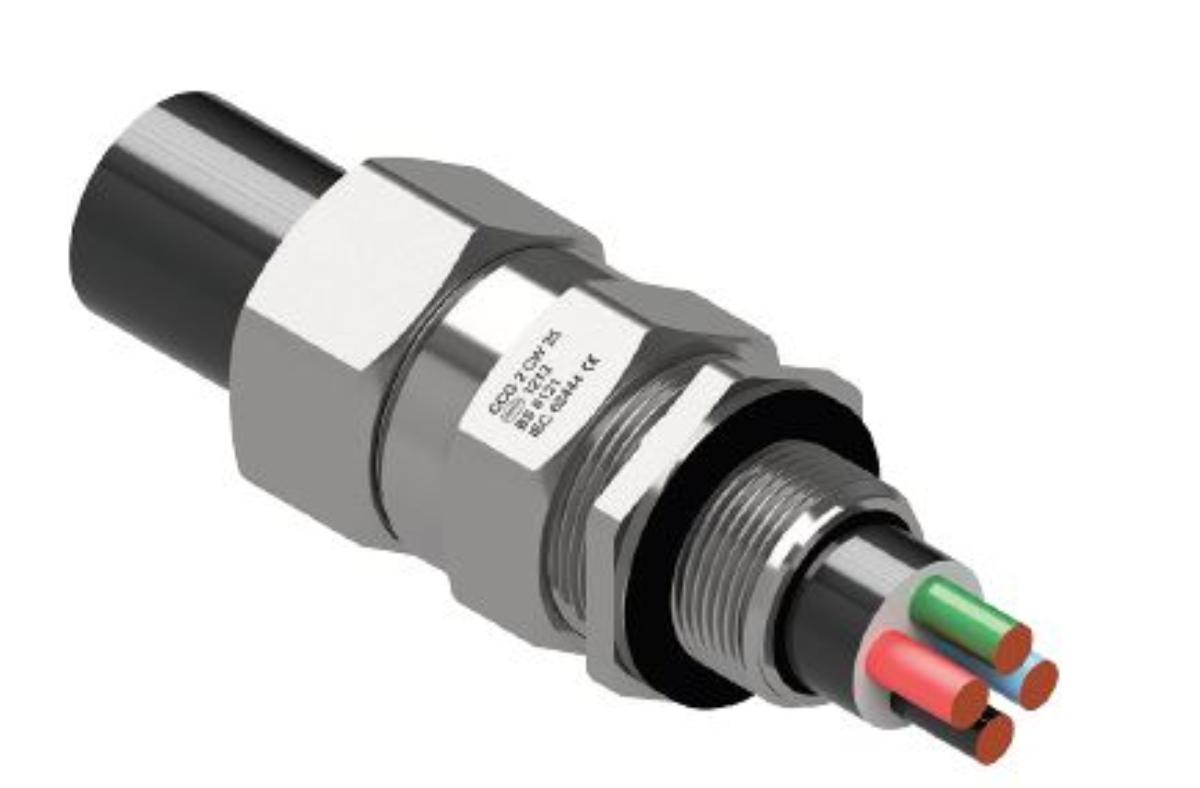

CCG 051202 Type CW Metal Gland, Suit 20.5mm - 26.5mm O/D Armoured (SWA) Cables, Weatherproof, IP66, M25 Thread, Nickel Plated Brass, With 25mm Locknut
Code: CCG051202
Unit of measure:
EACH
Description
CCG 051202 Type CW Metal Gland, Suit 20.5mm - 26.5mm O/D Armoured (SWA) Cables, Weatherproof, IP66, M25 Thread, Nickel Plated Brass, With 25mm Locknut
Features:
• Indoor And Outdoor Use
• Seals The Cable Sheath To IP66/68.
• Specially Formulated Elastomeric Seals.
• Precision Manufactured From High Quality Brass
• Available In Aluminium Or Stailnless Stell On Request
• Complete With Heavy Duty Locknut
• Complete With Thread Sealing Gasket
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Finish/Color | Nickel Plated |
| Size | 25mm |
| Standard | BS 6121 Part 1 1989, SANS/SABS 1213 |
| Material | Brass |
| Weight | 216.9g |
| Colour | Silver |
| Brand Name | CCG |
| Item Name | Metal Gland |
| Box Quantity | 1 |
| IP Rating | IP66 |
| Length | 66mm |
| UNSPCS | 39121300 |
| Finish | Nickel Plated |
| Width | 39mm |
