Description

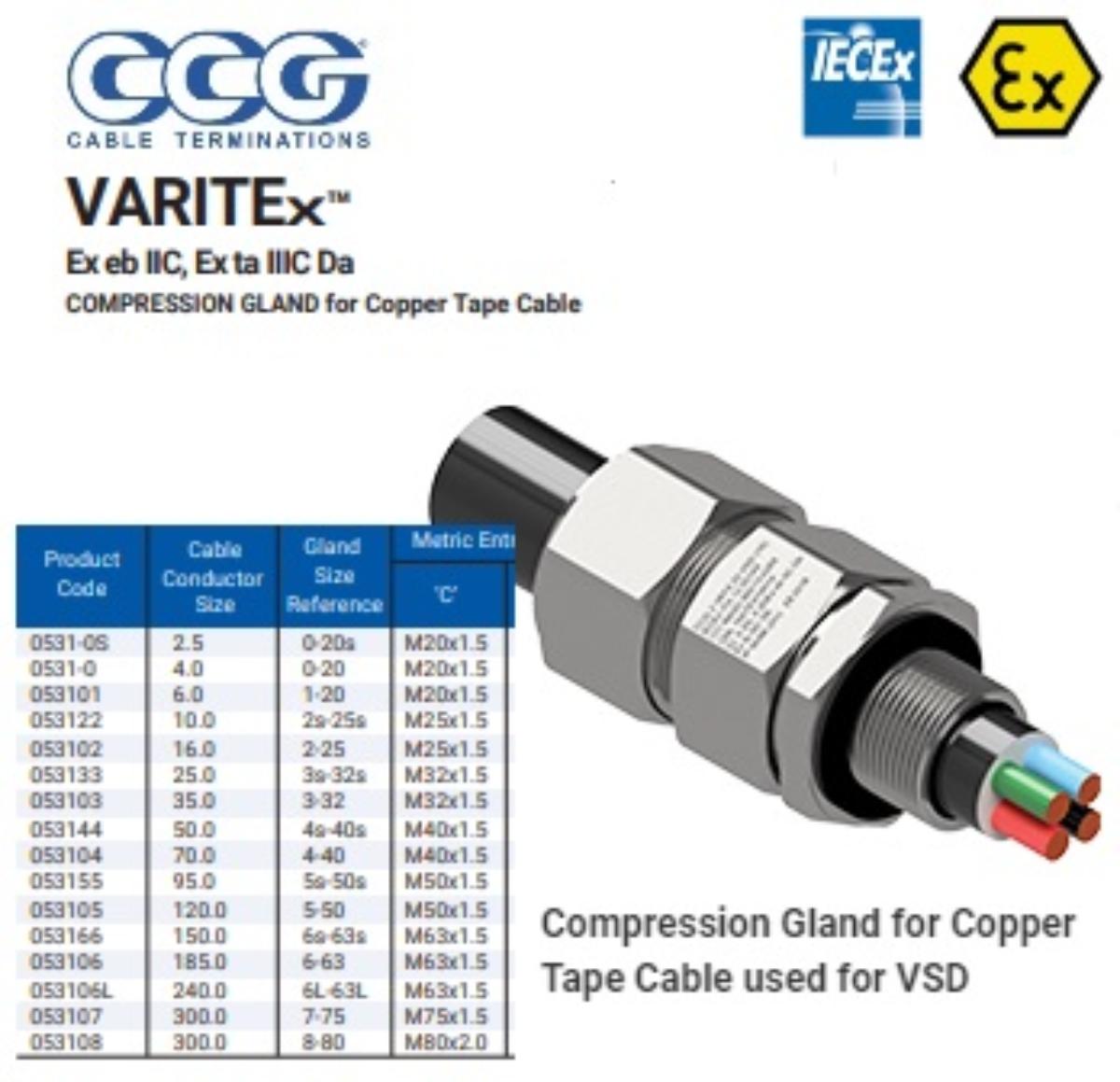

CCG 053133, Gland Hazardous Unarmoured Copper (CU) Tape VARITEX™ Series Nickel Plated Brass (NPB) Size 3s (23.0-28.0mm) M32 x 1.5, 15mm Thread length Ex eb IIC, Ex ta IIIC Da , Supplied with Sealing Washer (parallel threads Only ) and a Heavy Duty locknut.
Features:
• Gland Hazardous Unarmoured Copper (CU) Tape VARITEX™ Series Nickel Plated Brass (NPB) Size 3s (23.0-28.0mm) M32 x 1.5, 15mm Thread length Ex eb IIC, Ex ta IIIC Da, Supplied with Sealing Washer (parallel threads only) and a Heavy Duty locknut.
• For indoors, outdoors, Group II, III, Zone 1, 2, 21 and 22 hazardous areas.
• Two piece handling, no loose parts.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mounting thread Size (mm) | M32 x 1.5 |
| Brand Name | CCG |
| Series | VARITEX™ Series |
| Box Qty | 10 |
| Cable Type | Copper Tape Cable |
| Code of Protection | IECEx: IEC 60079 Part 0, 7, 31 IECEx CML 18.0018X |
| UOM | EA |
| IP Rating | IP66 |
| Comes with Nut (Y/N) | Y |
| Material | Nickel Plated Brass (NPB) |
| Ambient air temperature for operation | Standard Seals: -60°C to +95°C /100°C (HDPE/ Nylon Sealing Gasket) |
| Standards and Approvals | IEC/BS EN 62444 CML 14CA364 |
