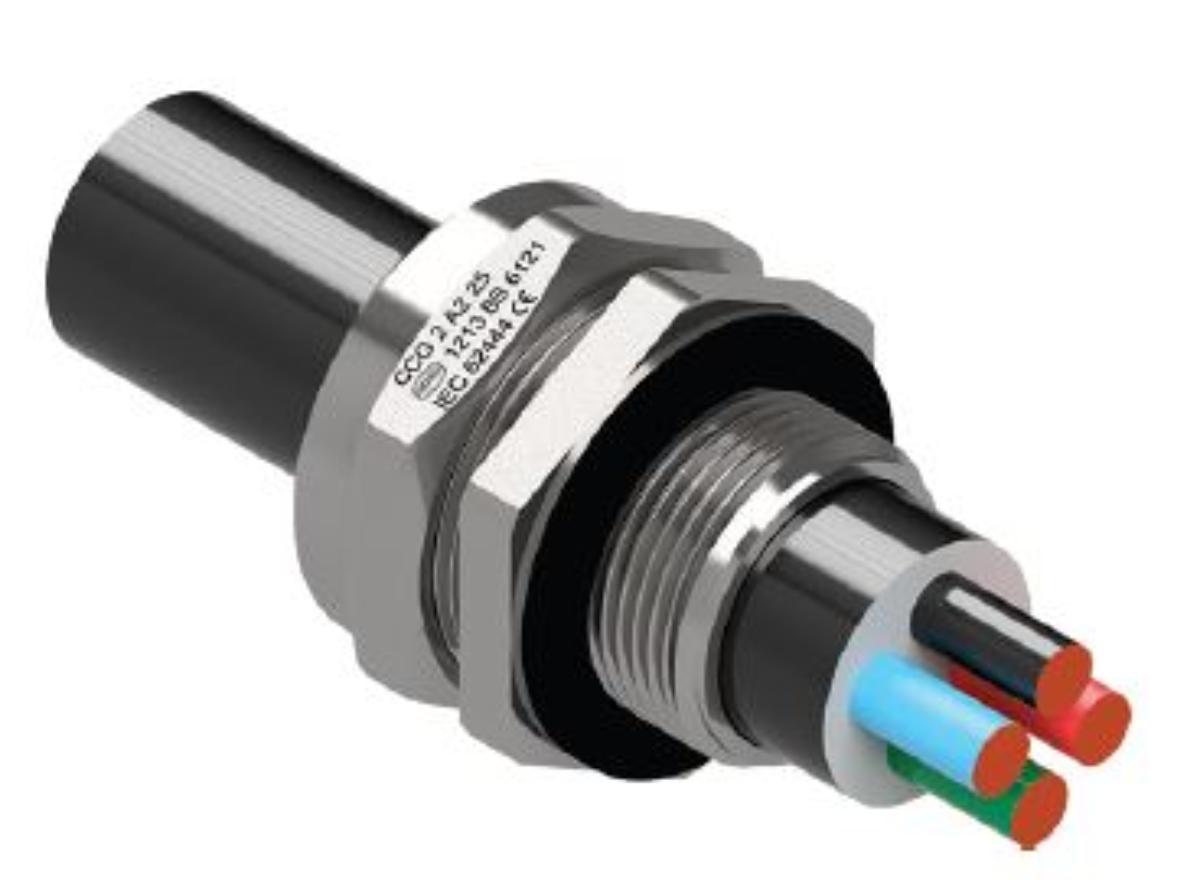

CCG 0535-0, Gland Industrial ,Unarmoured A2 Series Size 0-20s 7.0 - 11.5mm Cable OD Nickel Plated Brass (NPB) IP66/68 M20x1.5 10mm Thread length, Supplied with Washer and a Heavy Duty locknut.
Code: CCG0535-0
Unit of measure:
EACH
Description
CCG 0535-0, Gland Industrial ,Unarmoured A2 Series Size 0-20s 7.0 - 11.5mm Cable OD Nickel Plated Brass (NPB) IP66/68 M20x1.5 10mm Thread length, Supplied with Washer and a Heavy Duty locknut.
Gland Industrial ,Unarmoured A2 Series Size 0-20s 7.0 - 11.5mm Cable OD Nickel Plated Brass (NPB) IP66/68 M20x1.5 10mm Thread length, Supplied with Washer and a Heavy Duty locknut.
Features:
• For indoor and outdoor use.
• Specially formulated elastomeric seals.
• Complete with thread sealing gasket.
• Complete with heavy-duty locknut.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Finish/Color | Nickel Plated |
| Mounting thread Size (mm) | M20x1.5 |
| Cable Type | Unarmoured Single Compression |
| Size | Size 0-20s |
| Standard | BS 6121:PART 1, EN 50262, SANS 62444, SANS, 1213, IEC 60529, CML 14CA364, MASC 11-303, 2109/4596, S787/D586, CML 15Y728, MASC 11-263, ABS14-SG1246753-2-PDA, DNV-GL TAE000000Z, LU 3045 |
| Material | Nickel Plated Brass (NPB) |
| Ambient air temperature for operation | -65°C to +120°C |
| Weight | 57.9g |
| Colour | Silver |
| Brand Name | CCG |
| Box Qty | 10 |
| Series | A2 Series |
| Item Name | Metal Gland |
| UOM | EA |
| Box Quantity | 1 |
| IP Rating | IP66/68 |
| Length | 30mm |
| Comes with Nut (Y/N) | Supplied with Washer and a Heavy Duty locknut. |
| UNSPCS | 39121300 |
| Mounting thread Length (mm) | 10mm Thread length |
| Finish | Nickel Plated |
| Width | 27mm |
| Standards and Approvals | IEC/BS EN 62444 CML 14CA364 |
