Description

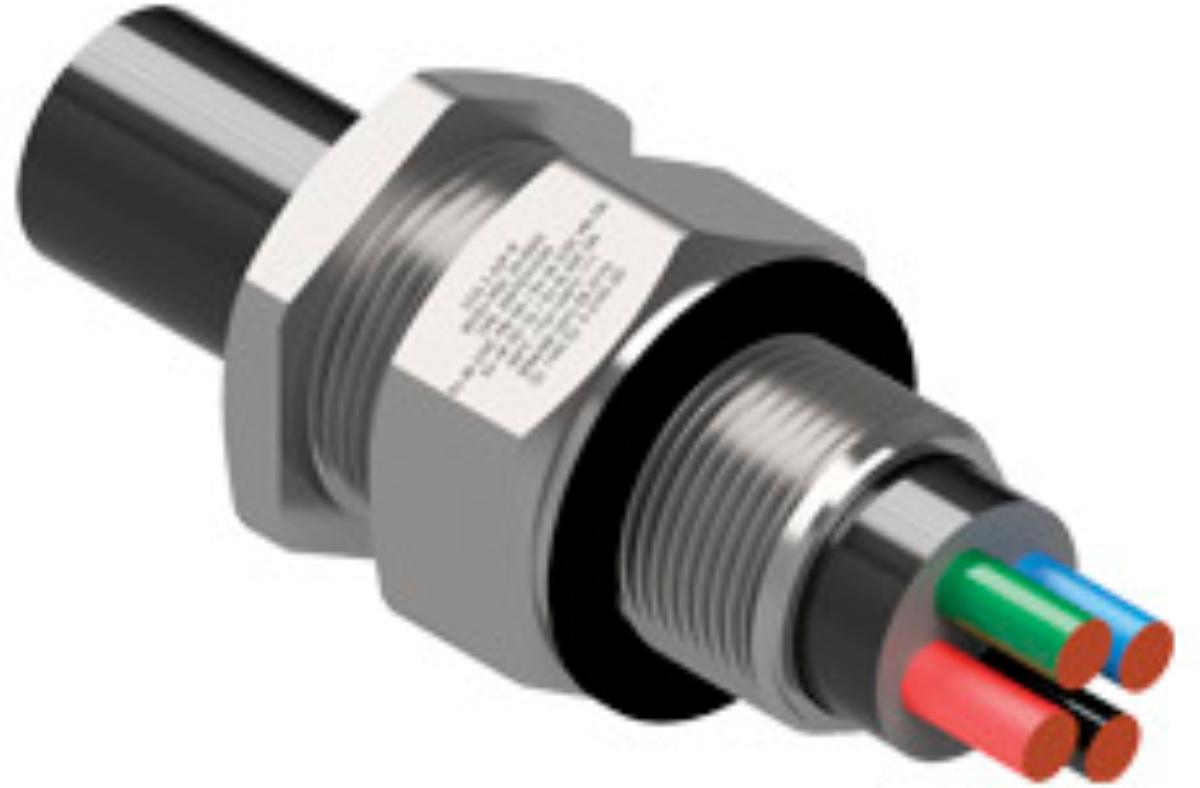

CCG 59022, Gland Hazardous ,Unarmoured A2F-R Series Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC Size 2s-25s 11.5 - 17.0mm Cable OD Nickel Plated Brass (NPB) IP66/68 M25x1.5 15mm Thread length
Gland Hazardous ,Unarmoured A2F-R Series Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC Size 2s-25s 11.5 - 17.0mm Cable OD Nickel Plated Brass (NPB) IP66/68 M25x1.5 15mm Thread length.
Features:
• Passes the IECEx / UKEX / ATEX 100% pull test, so no additional cable clamping is required.
• For indoor, outdoor, Group I, II, III, Zone 1, 2, 20, 21 and 22 hazardous areas.
• Fitted with a specially formulated elastomeric displacement seal, giving superior cable retention, explosion protection and IP rating.
• Precision manufactured from high quality brass (Marine Grade Electroless Nickel Plated™) available in aluminium or stainless steel 316/316L on request. (Note: Aluminium not suitable for Group I applications.).
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Mounting thread Size (mm) | M25x1.5 |
| Cable Type | Unarmoured Single Compression with displacement seal |
| Code of Protection | Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC, Ex nR IIC |
| Size | Size 2s-25s |
| Material | Nickel Plated Brass (NPB) |
| Ambient air temperature for operation | Standard Seals: 60°C to +95°C /100°C (HDPE/ Nylon Sealing Gasket) Extreme Temp. Seals: -60°C to +160°C (PTFE Sealing Gasket) |
| Colour | Silver |
| Brand Name | CCG |
| Box Qty | 10 |
| Series | A2F-R Series |
| Type | A2F-R |
| UOM | EA |
| IP Rating | IP66/68 |
| Comes with Nut (Y/N) | Supplied with a thread sealing gasket (parallel threads only |
| UNSPCS | 39121300 |
| Seal Material | Standard Thermoset Elastomer or Extreme Temperature Seals |
| Mounting thread Length (mm) | 15mm Thread length |
| Standards and Approvals | IECEx MSC 20.0002 |
