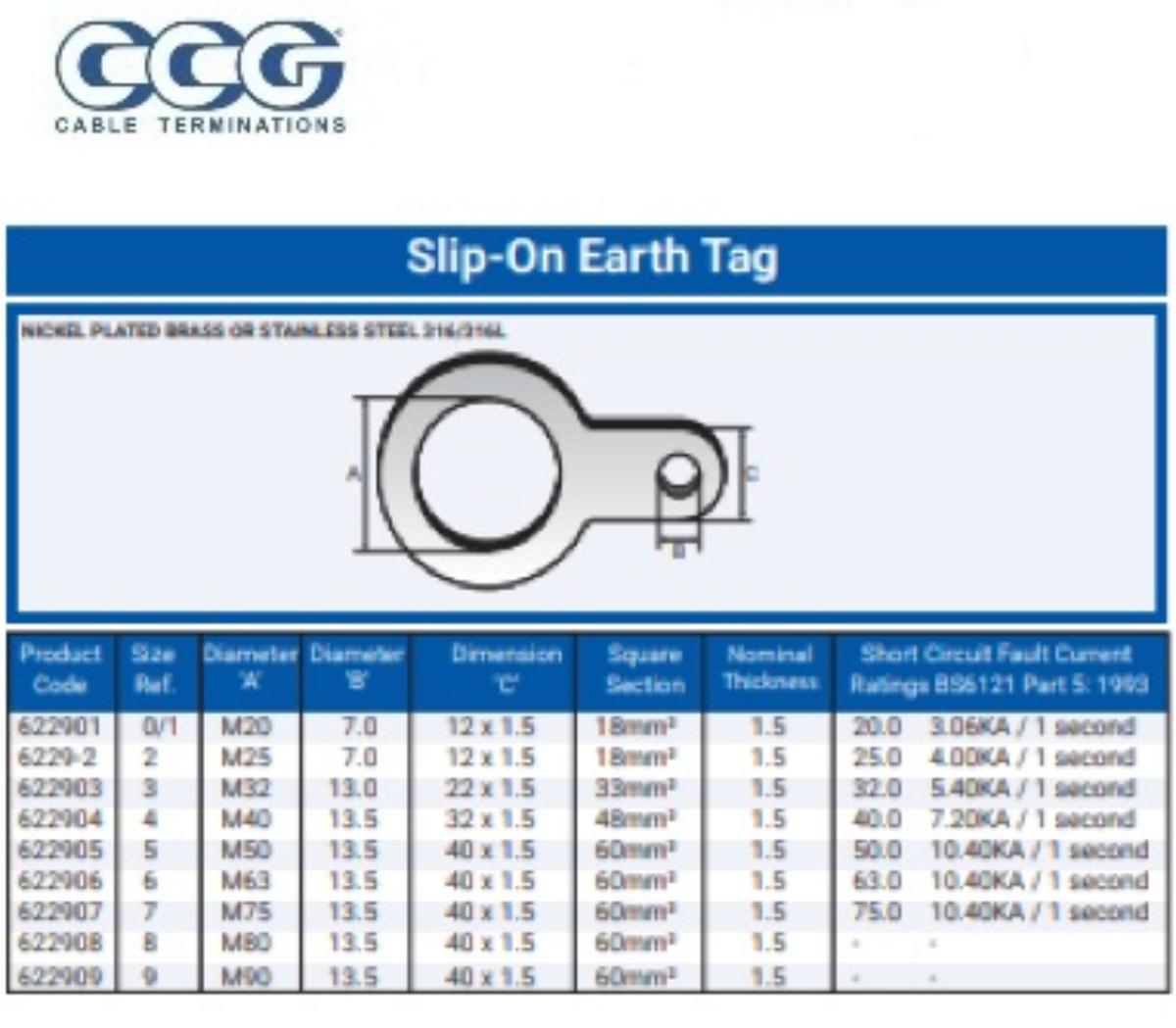

CCG 622902, Earth Tag Slip-On Size 2 Nickel Plated Brass (NPB) M25 c/w 7mm Earth Bolt Diameter 4.00KA / 1 second Short Circuit Fault Current
Code: CCG622902
Unit of measure:
EACH
Description
CCG 622902, Earth Tag Slip-On Size 2 Nickel Plated Brass (NPB) M25 c/w 7mm Earth Bolt Diameter 4.00KA / 1 second Short Circuit Fault Current
Earth Tag Slip-On Size 2 Nickel Plated Brass (NPB) M25 c/w 7mm Earth Bolt Diameter 4.00KA / 1 second Short Circuit Fault Current
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Finish/Color | Nickel Plated |
| Size | M25 |
| Dimensions | 1.5 mm Thickness |
| Other Physical Dimension | 25 mm Reference Cable Entry Size x 7 mm Earth Link Connection Hole Size x 12 mm Nominal Collar Diameter x 18 sq-mm Square Section |
| Material | Nickel Plated Brass (NPB) |
| Colour | Silver |
| Brand Name | CCG |
| Box Qty | 100 |
| Item Name | Earth Tag |
| EAN/UPC | 2000000034553 |
| UOM | EA |
| Type | Slip-On |
| Comes with Nut (Y/N) | N |
| UNSPCS | 39121400 |
| Finish | Nickel Plated |
