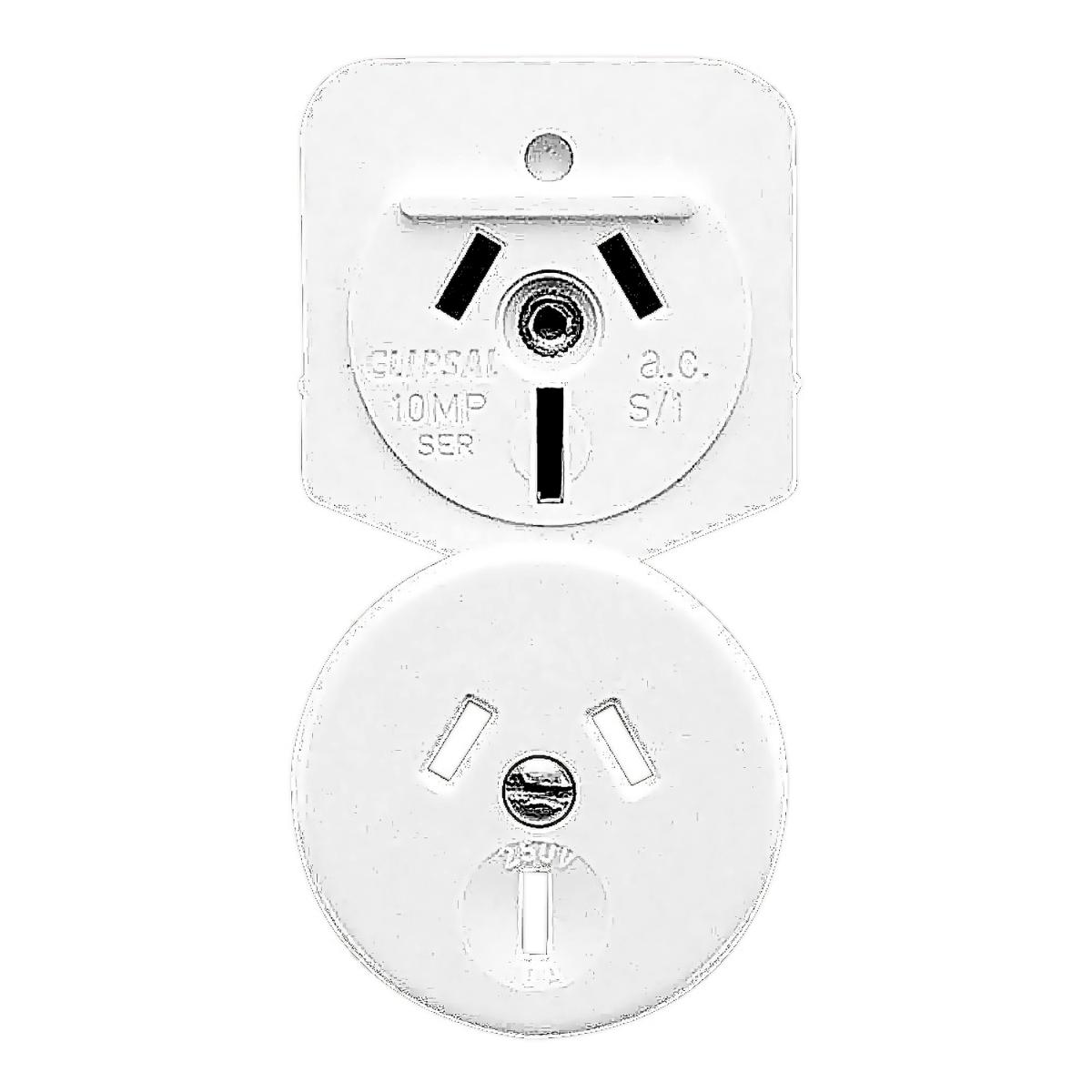

Clipsal 10MP-WE Standard Series, Automatic Socket Mech, 10A, Panel Mount, White
Code: CLI10MPWE
Unit of measure:
EACH
Description
Switch Socket Outlet
Brand Name: Clipsal
Type: Automatic Single
Range: Standard
Size: 43 mm Length x 42 mm Width x 33 mm Depth
Voltage: 250 VAC
Current: 10 A
Gang: 1
Number of Poles: 1
Mounting Centres: 84 mm
Mounting Type: Panel
Color: White Electric
Fascia: 42 mm dia
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Colour code | WE |
| Standard | AS 3100, AS/NZS 3112, AS 3109, AS/NZS 3122, S/1 Certified |
| [In] rated current | 10 A |
| Depth | 33mm |
| Colour | White Electric |
| Gang | 1 Gang |
| Voltage | 250V |
| Supplier Code | 10MP-WE |
| Width | 42mm |
| Cover type | complete housing |
| Fixing mode | by screws |
| [Ue] rated operational voltage | 250 V AC |
| Quantity per set | set of 1 |
| Pole Configuration | 1 Pole |
| Marking | without marking |
| Range | Standard Series |
| Standards | AS/NZS 3100 |
| Brand Name | Clipsal |
| Item Name | Switch Socket Outlet |
| Device mounting | flush |
| Length | 43mm |
| Fixing center | 84mm |
| Local signalling | without light indicator |
| Socket additional information | with hinged lid |
| Current | 10A |
| Product or component type | socket-outlet |
