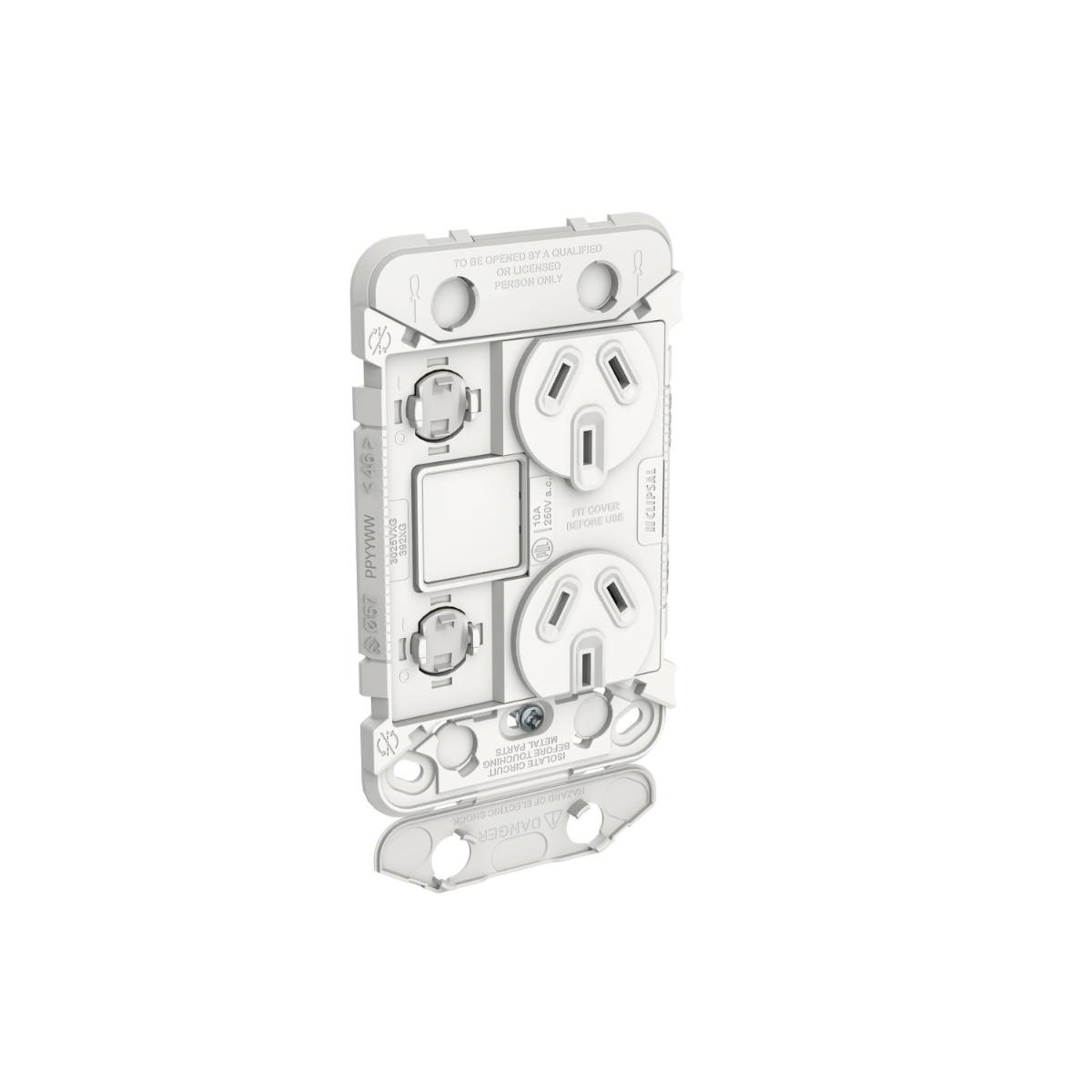

Clipsal 3025VXUAG Double Switch Power Point Grid with 1 extra switch, Clipsal Iconic, Vertical Mount, 250V, 10A, Less Mechanism, White
Code: CLI3025VXUAG
Unit of measure:
EACH
Description
Clipsal 3025VXUAG Iconic Series GPO, Double, Powerpoint, Switchplug Combination, Grid Only, With Empty Extra Switch Space, Single Pole, Flush, Vertical, 250V 10A, 3 Pin
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 10-95 % |
| Poles | 2 Pole |
| Mount | Flush |
| Embedding depth | 24mm |
| Installation direction | vertical |
| Ambient air temperature for operation | 0-45 °C |
| Rockers | 2 Rocker |
| Number of power socket outlets | 2 |
| Gang | 1 Gang |
| Supplier Code | 3025VXUAG |
| Connection Type | Wired In |
| Number of Pins | 3 Pin |
| Terminals | 3 Terminal |
| Ground lug position | straight 180° position |
| Type of packing | polybag |
| Finish/Color | Matte |
| Screwdriver shape | Philips No 2 |
| Fixing mode | by screw |
| Quantity per set | set of 10 |
| Clamping connection capacity | 1 x 2.5...4 x 2.5mm² for rigid cable(s) |
| Range | Clipsal Iconic |
| Weight | 94g |
| Number of rocker | 2 |
| Device mounting | flush |
| Electrical durability | 12000 cycles |
| Item Name | Gridplate |
| Number of Terminals | 3 Terminals |
| Range compatibility | Clipsal Iconic cover frame |
| Device presentation | mechanism with fixing frame |
| Box Quantity | 10 |
| Current | 10A |
| Connections - terminals | 3 screw terminals |
| Colour tint | ash grey |
| Shape | Rectangular |
| Standard | AS/NZS 3112 |
| Depth | 31mm |
| Outlet poles configuration | 2P + E with shutter |
| Colour | White |
| Rated current | 10 A at 250 V AC 50 Hz |
| Voltage | 250V |
| Sale per indivisible quantity | 1 |
| Carton Quantity | 50 |
| Height | 115mm |
| Finish | Matte |
| Width | 71mm |
| Outlet standard | Australian |
| Wire stripping length | 16mm |
| Material | POM (polyoxymethylene): shutter |
| Outlet standard deviation | Australian/New Zealand |
| Standards | AS/NZS 3112 |
| Product certifications | RCM |
| Brand Name | Clipsal |
| Surface finish | matt |
| Sockets | 2 Socket |
| Length | 115mm |
| Net weight | 0.094 kg |
| Outlet standard description | with earthing contact |
| Product or component type | switched socket |
