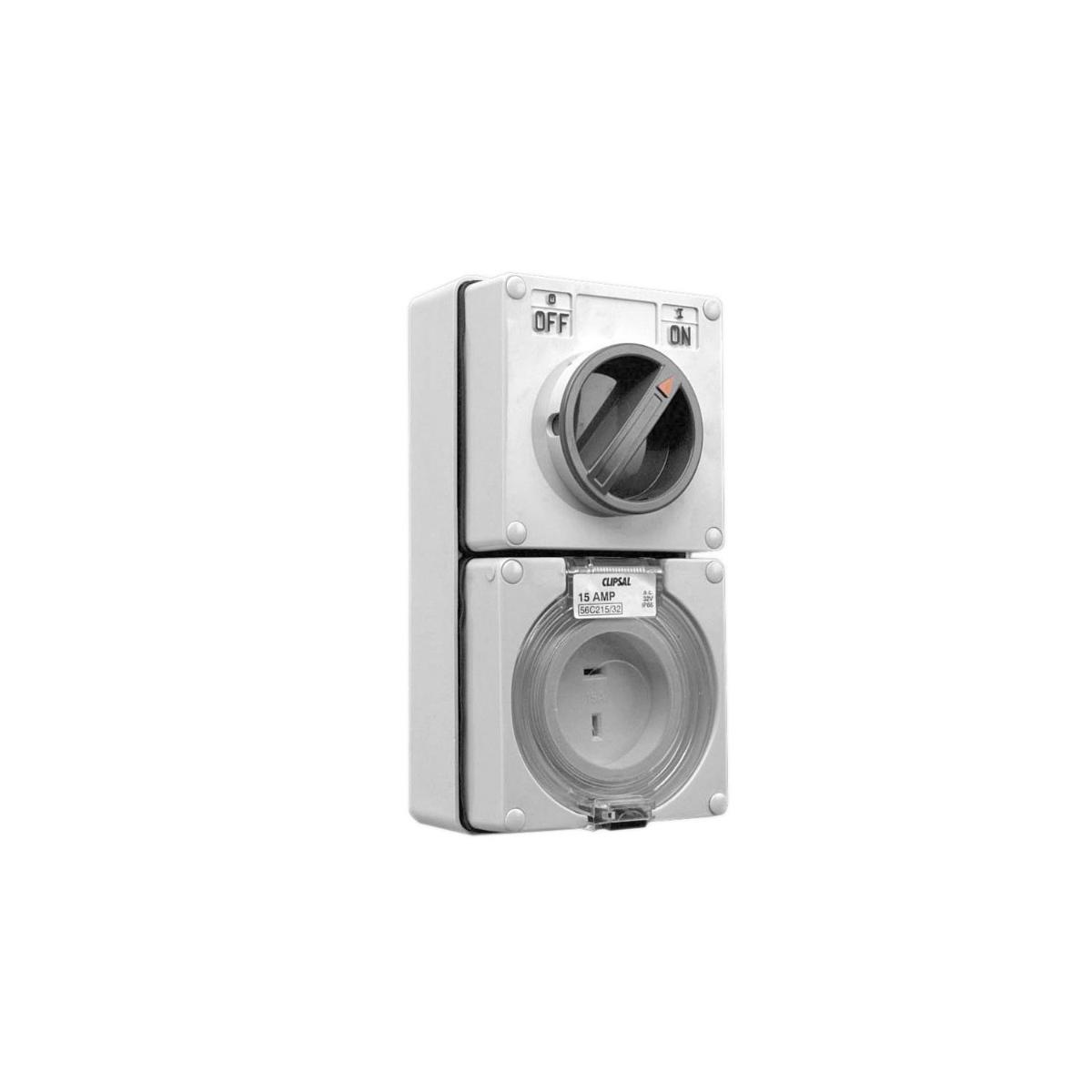

Clipsal 56C215/32-GY Switched Socket Outlet, Clipsal - 56 Series, 32V, 15A, 2 Polarised PIN, IP66, 1 Pole, Grey
Code: CLI56C215/32GY
Unit of measure:
EACH
Description
Clipsal 56C215/32-GY 56 Series Switched Socket Outlet - 15a - 2 Pin - 1 Pole Switch - 32v - Grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 1 Pole |
| Mount | Surface |
| Ambient air temperature for operation | -25-75 °C |
| Electrical connection | industrial connector |
| Number of power socket outlets | 1 protective cover |
| Gang | 1 Gang |
| Supplier Code | 56C215/32-GY |
| Connection Type | Screw Terminal |
| Number of Pins | 2 Pin |
| Targeted country | Australia |
| Protection type | without protection |
| IP degree of protection | IP66 conforming to AS 60529 |
| Range | 56 Series |
| Weight | 720g |
| Device mounting | surface |
| Item Name | Switchplug Combination |
| Box Quantity | 1 |
| Market segment | industry |
| Current | 15A |
| Connections - terminals | screw terminals cable(s) 1.5-6mm² |
| Phase | 1 Phase |
| Shape | Rectangular |
| Colour code | GY |
| Standard | AS/NZS3123, AS 60529, AS/NZS3120, AS/NZS3133, AS60529 |
| [In] rated current | 15 A |
| Depth | 83mm |
| Colour | Grey |
| Voltage | 32V |
| UNSPCS | 39121400 |
| Height | 204mm |
| Carton Quantity | 12 |
| Poles description | 1P + N |
| Width | 101mm |
| Plug- socket category | low voltage |
| Plug- socket- control station shape | straight |
| Contacts material | pins: phosphor bronze |
| Device application | power supply |
| [Ue] rated operational voltage | 32 V AC 50 Hz |
| Pole Configuration | 1 Pole |
| Material | polycarbonate: cover |
| Outlet standard deviation | Australian/New Zealand |
| Standards | AS/NZS 3133 |
| Brand Name | Clipsal |
| Number of Modules | 1 |
| Sockets | 1 |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Product or component type | socket-outlet |
