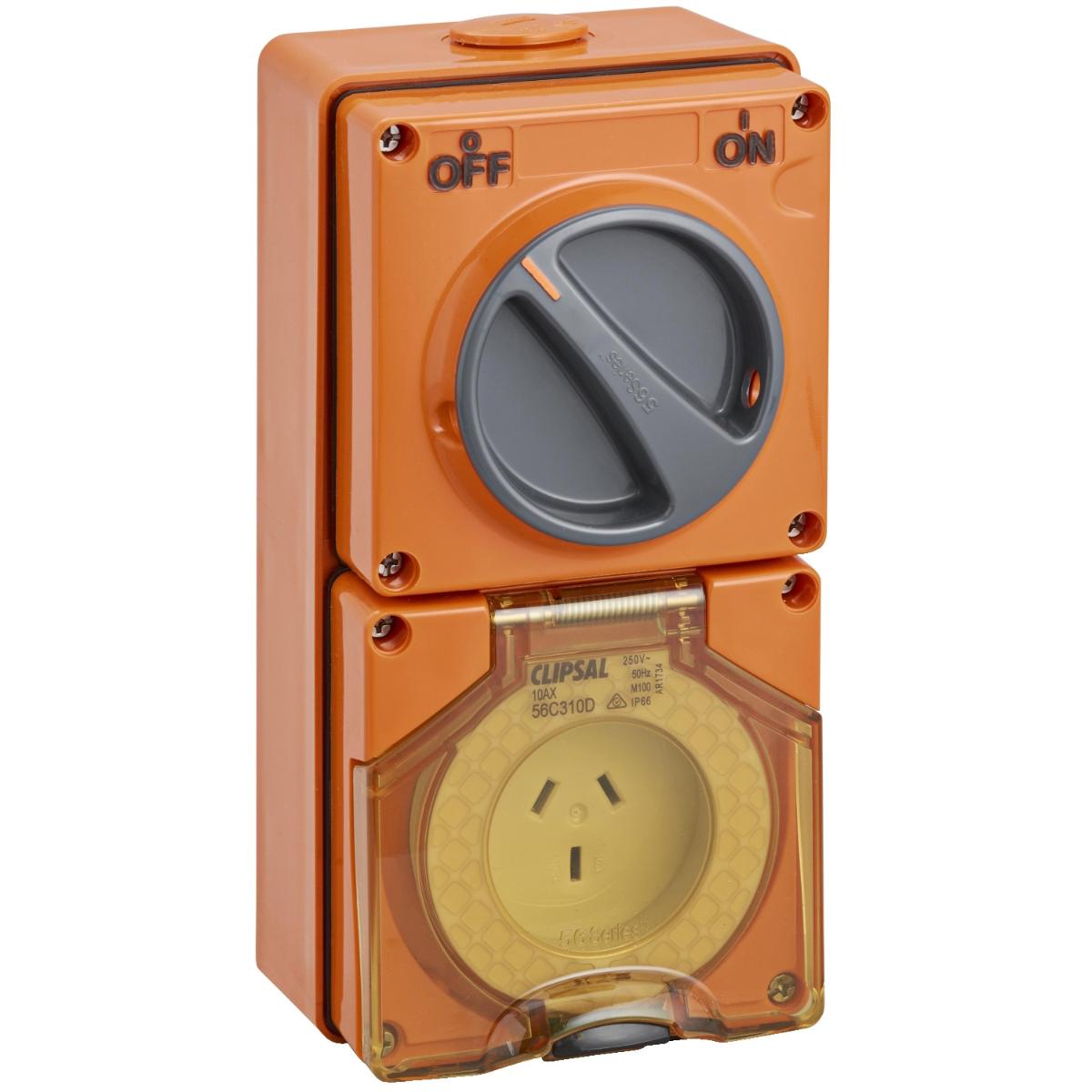

Clipsal 56C310HD-RO 56 Series Switched Socket Outlet - 10a - 3 Pin - 1p - 250v - Orange

Code: CLI56C310HDRO

Unit of measure: EACH

Description

Clipsal 56C310HD-RO 56 Series Switched Socket Outlet - 10a - 3 Pin - 1p - 250v - Orange

Looking for something specific? Search with keywords to help filter your required specifications.

Poles	1 Pole
Phase	1 Phase
Shape	Rectangular
Colour code	RO
Mount	Surface
Standard	AS/NZS3123, AS 60529, AS/NZS3120, AS/NZS3133, AS60529
[In] rated current	10 A
Depth	108 mm
Ambient air temperature for operation	-25-75 °C
Colour	Orange
Electrical connection	industrial connector
Gang	1 Gang
Number of power socket outlets	1 protective cover
Supplier Code	56C310HD-RO
Voltage	250V
Connection Type	Screw Terminal
Number of Pins	3 Pin
UNSPCS	39121400
Plug, socket, control station shape	straight
Carton Quantity	12
Height	204mm
Poles description	1P + N + E
Width	101mm
Number of poles	3
Targeted country	Australia
Plug, socket category	low voltage
Protection type	without protection
Contacts material	pins: phosphor bronze
Device application	power supply
[Ue] rated operational voltage	250 V AC 50 Hz
Material	PC + PET: cover
Range	Clipsal - 56 Series
Outlet standard deviation	Australian/New Zealand
Weight	1kg
Brand Name	Clipsal
Item Name	Switchplug Combination
Device mounting	surface
Number of Modules	1
Box Quantity	1
Sockets	1
IP Rating	IP66 conforming to AS 60529
Frequency	50Hz
Product brand	Clipsal
Current	10A
Connections - terminals	screw terminals cable(s) 1.5-16 mm²
Product or component type	socket-outlet
