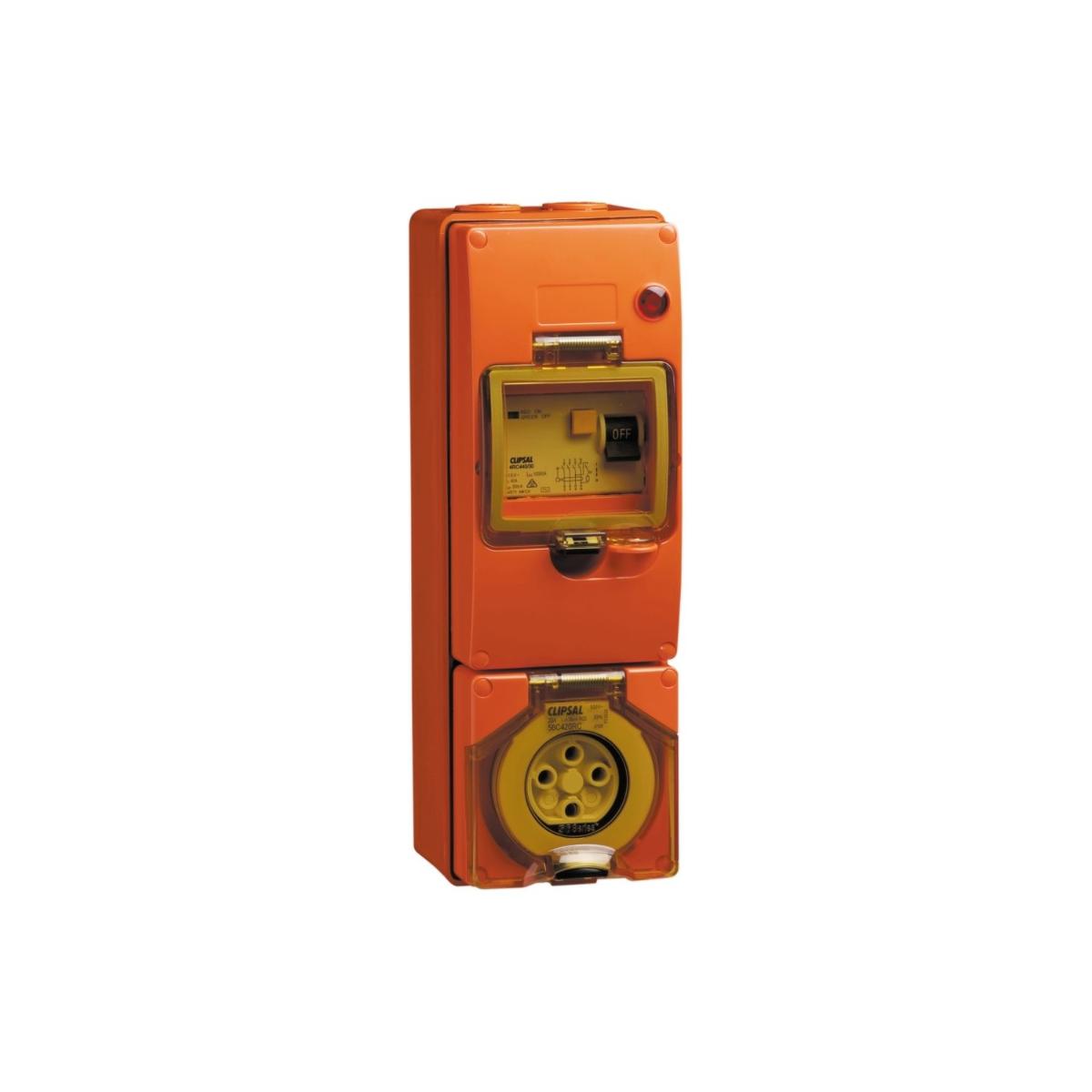

Clipsal 56C420RC-RO RCD Protected Switched Socket Outlet, Clipsal - 56 Series, 500V, 20A, 4 Round PIN, IP66, 30mA, Orange
Code: CLI56C420RCRO
Unit of measure:
EACH
Description
Clipsal 56C420RC-RO 56 Series Switched Socket Ip66 Rcd 4 Pin 20 A - Restance Orange
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole |
| Phase | 3 Phase |
| Shape | Rectangular |
| Colour code | RO |
| Mount | Surface |
| Standard | AS/NZS3112, AS/NZS 3100 |
| [In] rated current | 20 A |
| Ambient air temperature for operation | -25-75 °C |
| Installation direction | vertical |
| Depth | 110mm |
| Colour | Orange |
| Number of power socket outlets | 1 protective cover |
| Gang | 3 Gang |
| Supplier Code | 56C420RC-RO |
| Connection Type | Screw Terminal |
| Voltage | 500V |
| Number of Pins | 4 Pin |
| Height | 294mm |
| Carton Quantity | 12 |
| Width | 101mm |
| Targeted country | Australia |
| Network number of phases | 3 phases |
| Device application | power supply |
| [Ue] rated operational voltage | 500 V AC 50 Hz |
| Control type | push-button |
| Pole Configuration | 4 Pole |
| Material | PC + PET |
| IP degree of protection | IP66 |
| Range | 56 Series |
| Weight | 1.6kg |
| Brand Name | Clipsal |
| Device mounting | surface |
| Item Name | Switchplug Combination |
| Number of Modules | 3 Modules |
| Box Quantity | 1 |
| Sockets | 1 |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Net weight | 1.6 kg |
| Market segment | small commercial |
| Current | 20A |
| Earth-leakage protection class | class A |
| Product or component type | socket-outlet with residual current device |
| Connections - terminals | screw terminals cable(s) 1.5-16mm² |
