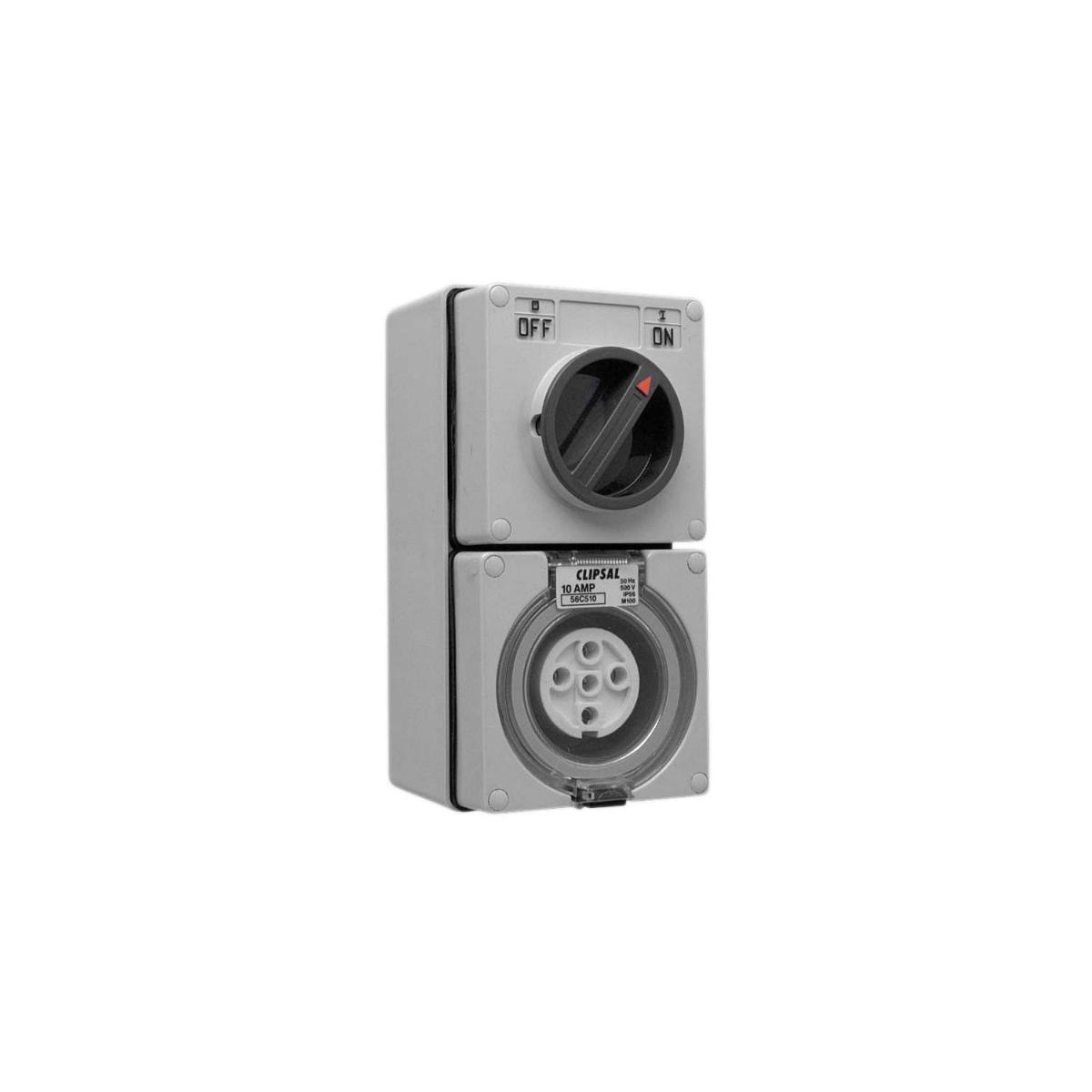

Clipsal 56C510-RW Switched Socket Outlet, Clipsal - 56 Series, 500V, 10A, 5 Round PIN, IP66, 3 Pole, White
Code: CLI56C510RW
Unit of measure:
EACH
Description
Clipsal 56C510RW 56 Series Switchplug Combination, Switched Socket Outlet, IP66, 415V, 3 Phase, 10A, 5 Round Pins, Surface Mount, 204mm H x 101mm W x 108mm D, Resistant White
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Phase | 3 Phase |
| Shape | Rectangular |
| Colour code | RW |
| Mount | Surface |
| Standard | AS/NZS3123, AS 60529, AS/NZS3120, AS/NZS3133, AS60529 |
| [In] rated current | 10 A |
| Ambient air temperature for operation | -25-75 °C |
| Depth | 108mm |
| Colour | White |
| Electrical connection | industrial connector |
| Number of power socket outlets | 1 protective cover |
| Gang | 1 Gang |
| Supplier Code | 56C510-RW |
| Connection Type | Screw Terminal |
| Voltage | 500V |
| Number of Pins | 5 Pin |
| UNSPCS | 39121400 |
| Height | 204mm |
| Carton Quantity | 12 |
| Number of modules | 1 |
| Poles description | 3P + N + E |
| Width | 101mm |
| Plug- socket category | low voltage |
| Plug- socket- control station shape | straight |
| Targeted country | Australia |
| Protection type | without protection |
| Contacts material | pins: phosphor bronze |
| Device application | power supply |
| [Ue] rated operational voltage | 500 V AC 50 Hz |
| Pole Configuration | 5 Pole |
| Material | PC + PET: cover |
| IP degree of protection | IP66 conforming to AS 60529 |
| Outlet standard deviation | Australian/New Zealand |
| Range | 56 Series |
| Standards | AS/NZS 3133 |
| Weight | 1.13kg |
| Brand Name | Clipsal |
| Device mounting | surface |
| Item Name | Outlet Switch |
| Box Quantity | 1 |
| Sockets | 1 Socket |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Market segment | industry |
| Current | 10A |
| Product or component type | socket-outlet |
| Connections - terminals | screw terminals cable(s) 1.5-6mm² |
