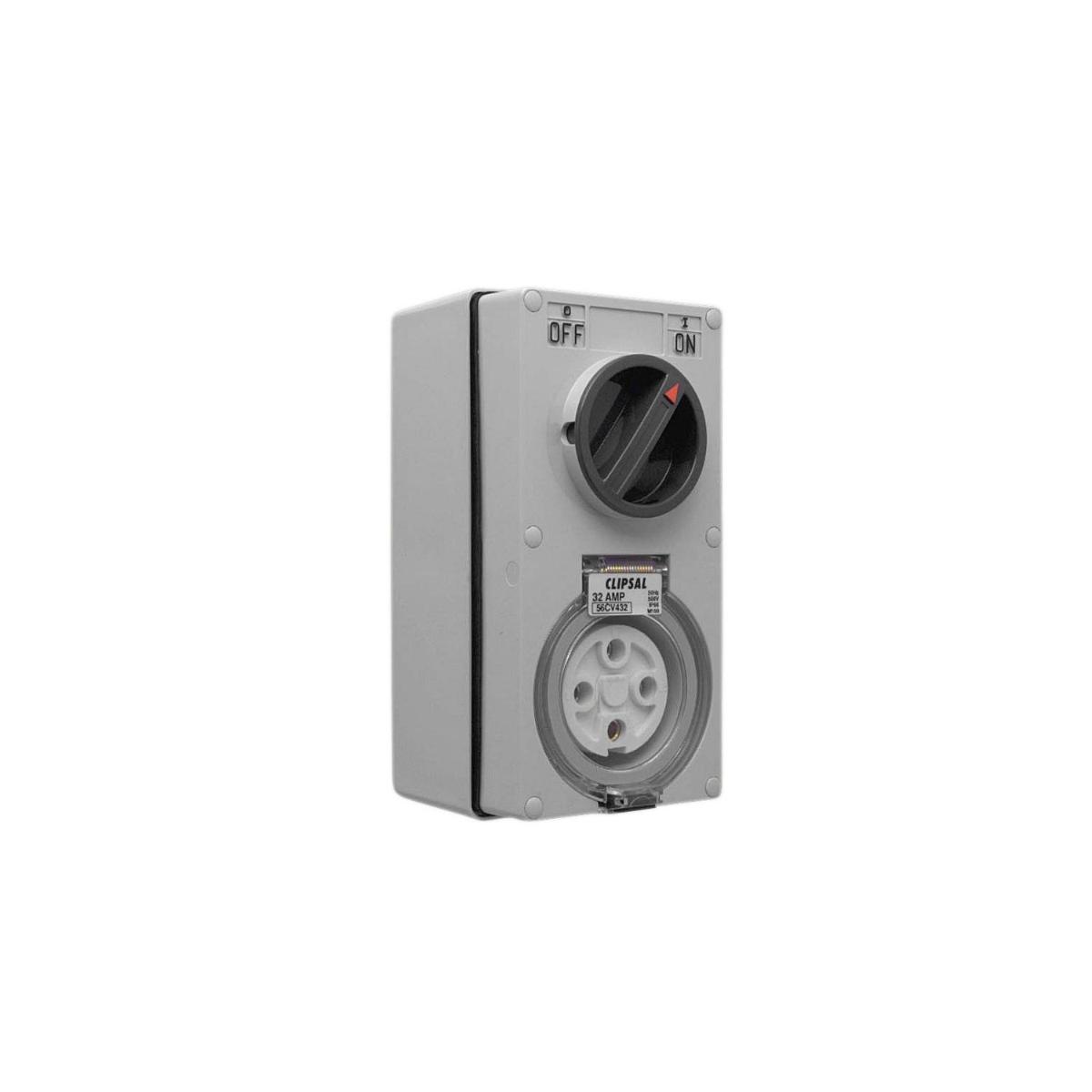

Clipsal 56CV432-GY Switched Socket Outlet, Clipsal - 56 Series, 500V, 32A, 4 Round PIN, IP66, 3 Pole, Vertical, Grey
Code: CLI56CV432GY
Unit of measure:
EACH
Description
Clipsal 56CV432-GY 56 Series Switched Socket Outlet - 32a - 4 Pin - 3 Pole Switch - 500v - Grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole |
| Phase | 3 Phase |
| Colour code | GY |
| Mount | Surface |
| Standard | AS/NZS3123, AS 60529, AS/NZS3133, AS/NZS3112, AS4417 |
| [In] rated current | 32 A |
| Ambient air temperature for operation | -25-75 °C |
| Depth | 108mm |
| Colour | Grey |
| Electrical connection | industrial connector |
| Number of power socket outlets | 1 protective cover |
| Gang | 1 Gang |
| Supplier Code | 56CV432-GY |
| Connection Type | Screw Terminal |
| Voltage | 500V |
| Number of Pins | 4 Pin |
| UNSPCS | 39121400 |
| Height | 204mm |
| Poles description | 3P + E |
| Width | 101mm |
| Plug- socket category | low voltage |
| Plug- socket- control station shape | straight |
| Targeted country | Australia |
| Protection type | without protection |
| Contacts material | pins: phosphor bronze |
| Device application | power supply |
| [Ue] rated operational voltage | 500 V AC 50 Hz |
| Pole Configuration | 4 Pole |
| Material | polycarbonate: cover |
| IP degree of protection | IP66 conforming to AS 60529 |
| Outlet standard deviation | Australian/New Zealand |
| Range | 56 Series |
| Standards | AS/NZS 3123 |
| Weight | 1.08kg |
| Brand Name | Clipsal |
| Device mounting | surface |
| Item Name | Switchplug Combination |
| Number of Modules | 3 |
| Box Quantity | 1 |
| Sockets | 1 |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Market segment | utility |
| Current | 32A |
| Product or component type | socket-outlet |
| Connections - terminals | screw terminals cable(s) 4-16mm² |
