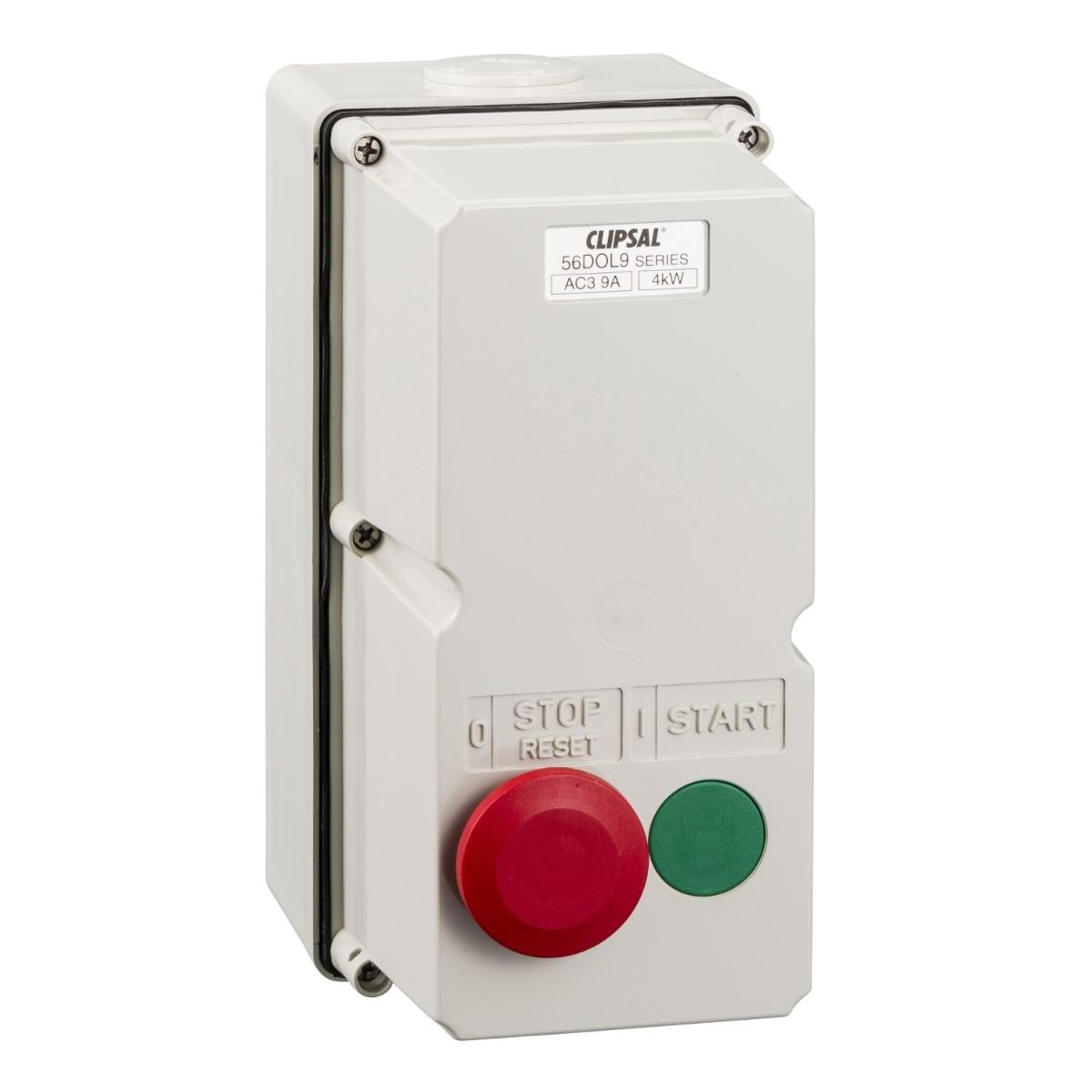

Clipsal 56DOL9/6-GY DOL Motor Starter, Clipsal - 56 Series, 4kW, 415V, 2 Push Button, LRD10, Grey
Code: CLI56DOL9/6GY
Unit of measure:
EACH
Description
Clipsal 56DOL9/6GY 56 Series Direct On Line Starter, DOL Starter, Stop/Start, IP66, 4KW, 240V, With LRD10 4-6A Overload, Surface Mount, 204mm H x 101mm W, Grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Product destination | 2 push-button |
| [Us] rated supply voltage | 240 V AC 50 Hz |
| Phase | 3 Phase |
| Shape | Rectangular |
| Colour code | GY |
| Overload current | 4...6 A |
| Wattage | 4KW |
| Mount | Surface |
| Standard | AS/NZS 3100, AS/NZS 3133 |
| Suitability for isolation | no |
| Ambient air temperature for operation | -25-75 °C |
| Colour | Grey |
| Gang | 1 Gang |
| Motor starter type | direct on line |
| Supplier Code | 56DOL9/6-GY |
| Connection Type | Screw Terminal |
| Voltage | 240V |
| Height | 204mm |
| Carton Quantity | 9 |
| Width | 101mm |
| Targeted country | Australia |
| Network number of phases | 3 phases |
| Network type | AC |
| Control type | push-button |
| Material | Polycarbonate |
| IP degree of protection | IP66 conforming to AS 60529 |
| Range | Series 56 |
| Standards | AS/NZS 3100 |
| Weight | 1.4kg |
| Brand Name | Clipsal |
| Item Name | DOL Starter |
| Number of Modules | 2 Modules |
| Box Quantity | 1 |
| IP Rating | IP66 |
| Tightening torque | 0.8 N.m |
| Frequency | 50Hz |
| Net weight | 1.42 kg |
| Market segment | small commercial |
| Current | 9A |
| [Ie] rated operational current | 9 A |
| Rated operational power in W | 4 kW at 240 V (AC-3) |
| Product or component type | switch |
| Connections - terminals | screw terminal stranded |
