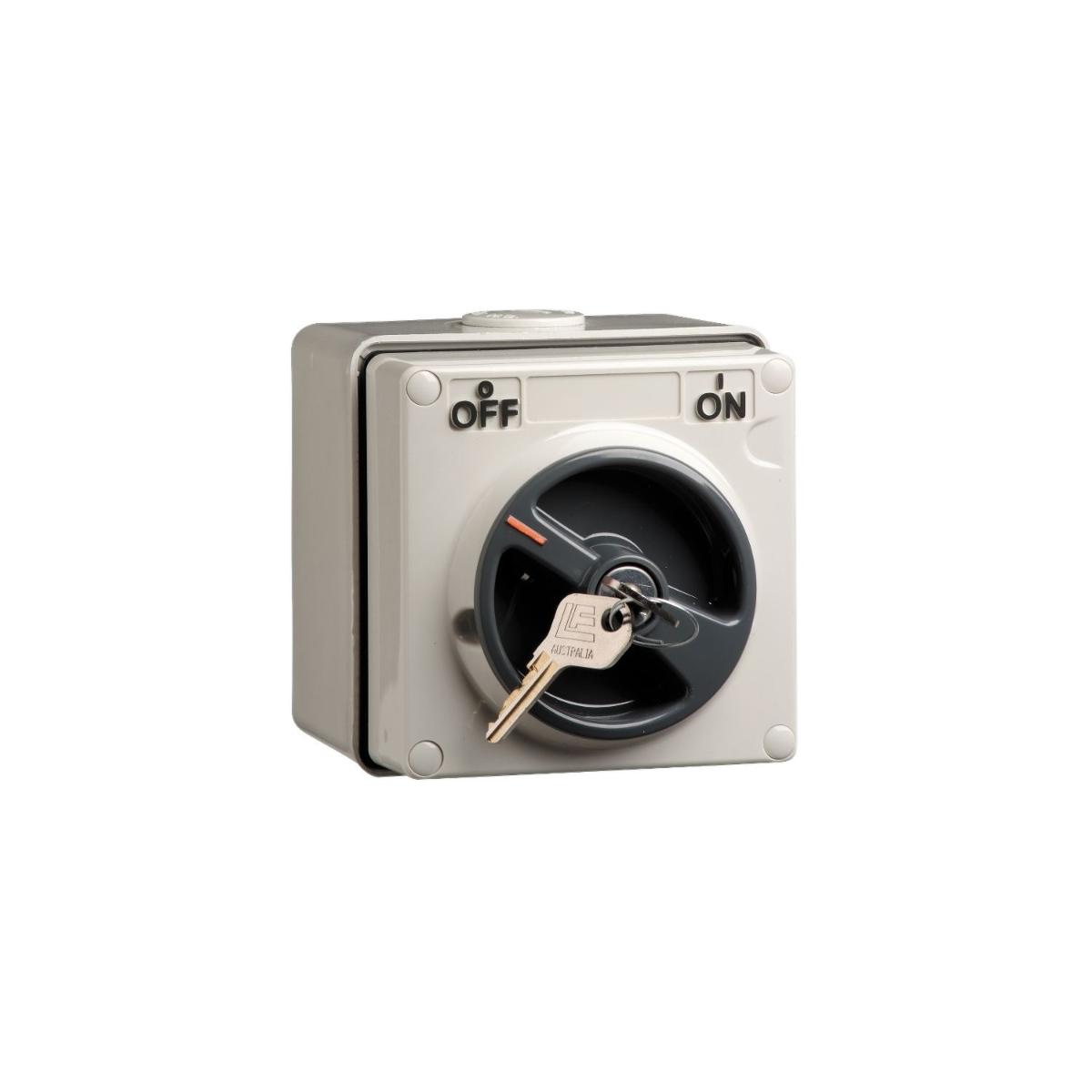

Clipsal 56K1SW120CK-GY Switch, Clipsal - 56 Series, 1 Pole, 250VAC, 20A, Common Key Lock, Off Locking Position, Grey
Code: CLI56K1SW120CKGY
Unit of measure:
EACH
Description
Clipsal 56K1SW120CK-GY 56 Series - Switch - Common Keylock - 1 Pole - 20a - 250v - Grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 1 Pole |
| Mount | Surface |
| Ambient air temperature for operation | -25-75 °C |
| Gang | 1 Gang |
| Supplier Code | 56K1SW120CK-GY |
| Connection Type | Screw Terminal |
| Breaking Capacity | 20 kA |
| [Icw] rated short-time withstand current | 1.2 kA for 1 s |
| Targeted country | Australia |
| Fixing mode | by screws |
| Control type | rotary knob |
| IP degree of protection | IP66 conforming to AS 60529 |
| Range | 56 Series |
| Weight | 0.55kg |
| Device mounting | surface |
| Item Name | Key Switch |
| Device presentation | basic element with full cover plate |
| Box Quantity | 1 |
| Marking location | marking on surface |
| Local signalling | without |
| Tightening torque | 0.8 N.m |
| Switch function | 1-pole |
| Market segment | utility |
| Current | 20A |
| Legend | On/Off |
| Phase | 1 Phase |
| Shape | Rectangular |
| [Icm] rated short-circuit making capacity | 1 kA |
| Colour code | GY |
| Standard | AS/NZS 3123, AS/NZS 3947.3, AS/NZS 3133 |
| Suitability for isolation | yes |
| Motor M-rating AS3133 | M250 at 250 V |
| Depth | 112mm |
| Colour | Grey |
| Rated current | 20 A |
| Voltage | 250V |
| Height | 107mm |
| Carton Quantity | 24 |
| Poles description | 1P |
| Width | 101mm |
| Actuator | key |
| Device application | control |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Pole Configuration | 1 Pole |
| Material | PC (polycarbonate) |
| Marking | ON-OFF |
| Standards | AS/NZS 3133 |
| Brand Name | Clipsal |
| Rotary handle padlocking | 2 padlocks 8-8mm |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Number of Modules | 1 Modules |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Net weight | 0.55 kg |
| Handle colour | grey |
| Product or component type | switch |
