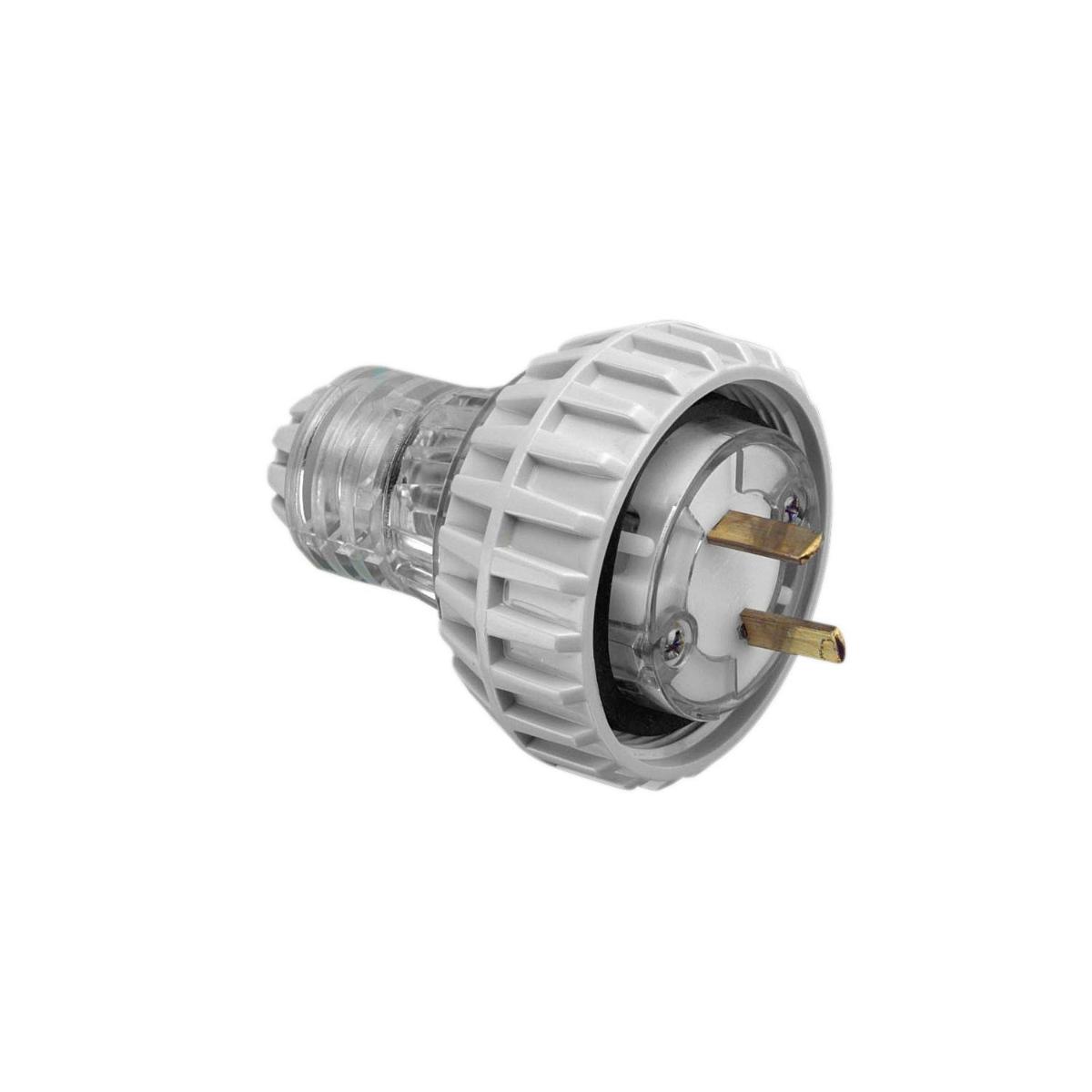

Clipsal 56P215/32-GY Plug Top, Clipsal - 56 Series, Straight, 2 Polarised PIN, 15A, 32V, IP66, Grey
Code: CLI56P215/32GY
Unit of measure:
EACH
Description
Clipsal 56P215/32-GY 56 Series Plug - 2 Pin - 15a - 32v
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 1 Pole + N |
| Phase | 1 Phase |
| Shape | Cylindrical |
| Colour code | GY |
| Mount | Lead |
| Standard | AS/NZS3123, AS 60529, AS/NZS3120, AS/NZS3133, EN 60309 |
| [In] rated current | 15 A |
| Ambient air temperature for operation | -25-75 °C |
| Depth | 112.5mm |
| Colour | Grey |
| Supplier Code | 56P215/32-GY |
| Connection Type | Screw Terminal |
| Voltage | 32V |
| Number of Pins | 2 Pin |
| UNSPCS | 39121402 |
| Height | 67mm |
| Carton Quantity | 75 |
| Width | 67mm |
| Plug- socket category | low voltage |
| Outlet standard | industrial |
| Plug- socket- control station shape | straight |
| Wire stripping length | 35mm |
| Quality labels | RCM |
| Targeted country | Australia |
| Contacts material | pins: brass |
| Device application | power supply |
| [Ue] rated operational voltage | 32 V DC conforming to EN 60309-2 |
| Material | polycarbonate: housing |
| IP degree of protection | IP66 conforming to AS 60529 |
| Range | 56 Series |
| Standards | AS/NZS 3112 |
| Weight | 0.12kg |
| Brand Name | Clipsal |
| Item Name | Plug Top |
| Box Quantity | 5 |
| Angle | Straight |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Net weight | 0.12 kg |
| Thread type | M20 |
| Pin arrangement | E |
| Cable entry | cable gland |
| Market segment | utility |
| Current | 15A |
| Connections - terminals | screw terminal 1.5-1.5mm² |
| Product or component type | plug |
