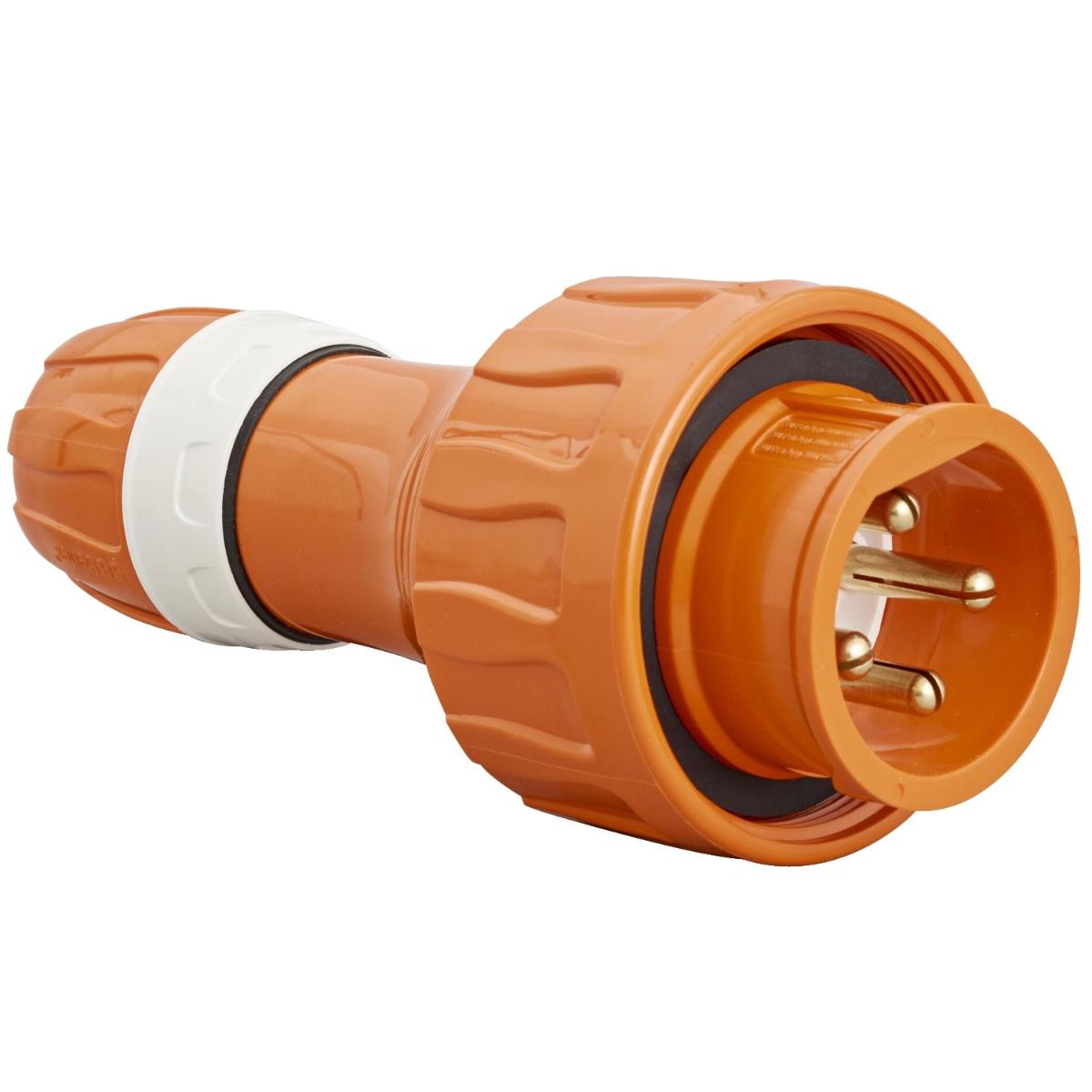

Clipsal 56P420-RO 56 Series Plug - 4 Pin - 20a - 500v
Code: CLI56P420RO
Unit of measure:
EACH
Description
Clipsal 56P420-RO 56 Series Plug - 4 Pin - 20a - 500v
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Colour code | RO |
| [In] rated current | 20 A |
| Ambient air temperature for operation | -25-75 °C |
| Depth | 167 mm |
| Colour | Orange |
| Supplier Code | 56P420-RO |
| Voltage | 500V |
| UNSPCS | 39121402 |
| Plug, socket, control station shape | straight |
| Height | 78mm |
| Poles description | 3P + E |
| Width | 78mm |
| Outlet standard | industrial |
| Targeted country | Australia |
| Plug, socket category | low voltage |
| cable entry | cable gland |
| Contacts material | pins: brass |
| Device application | power supply |
| [Ue] rated operational voltage | 500 V AC 50 Hz conforming to EN 60309-2 |
| Material | Plastic |
| Duration | 7 h |
| Range | Clipsal - 56 Series |
| Standards | AS/NZS 3123 |
| Brand Name | Clipsal |
| Item Name | Plug Top |
| Voltage colour | black |
| IP Rating | IP66 conforming to AS 60529 |
| Net weight | 0.36 kg |
| Pin arrangement | L |
| Thread type | M25 |
| Product brand | Clipsal |
| Current | 20A |
| Connections - terminals | screw terminal 1-6 mm² |
| Product or component type | plug |
