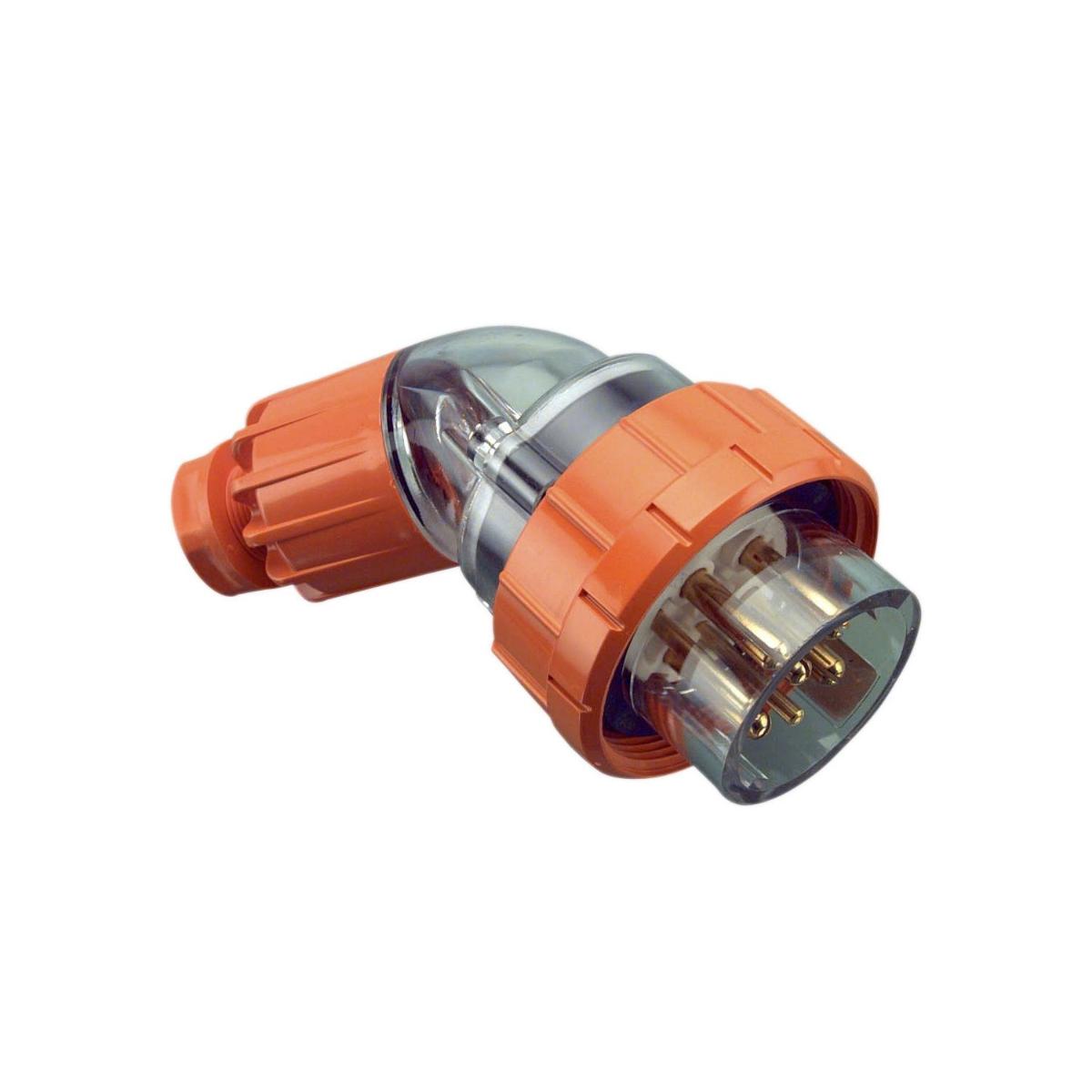

Clipsal 56PA710-RO Angled Plug, Clipsal - 56 Series, IP66, 500V 10A - 7 Round Pins, Orange
Code: CLI56PA710RO
Unit of measure:
EACH
Description
Clipsal 56PA710-RO 56 Series Plug - 7 Pin - 10a - 500v - Angled
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole + N + E |
| Phase | 3 Phase |
| Shape | Cylindrical |
| Colour code | RO |
| Mount | Lead |
| Standard | AS/NZS3123, AS 60529, AS/NZS3120, AS/NZS3133, EN 60309 |
| [In] rated current | 10 A |
| Ambient air temperature for operation | -25-75 °C |
| Depth | 158mm |
| Colour | Orange |
| Supplier Code | 56PA710-RO |
| Connection Type | Screw Terminal |
| Voltage | 500V |
| Number of Pins | 7 Pin |
| Height | 78mm |
| Carton Quantity | 20 |
| Poles description | 3P + N + E |
| Width | 126.5mm |
| Plug- socket category | low voltage |
| Outlet standard | industrial |
| Plug- socket- control station shape | angled |
| Wire stripping length | 12mm |
| Targeted country | Australia |
| Contacts material | pins: brass |
| Device application | power supply |
| [Ue] rated operational voltage | 500 V AC 50 Hz conforming to EN 60309-2 |
| Duration | 7 h |
| Material | PBT (polybutylene terephthalate): housing |
| IP degree of protection | IP66 conforming to AS 60529 |
| Range | 56 Series |
| Standards | AS/NZS 3123 |
| Weight | 0.36kg |
| Brand Name | Clipsal |
| Item Name | Plug Top |
| Voltage colour | black |
| Box Quantity | 1 |
| Angle | Angled |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Net weight | 0.36 kg |
| Thread type | M25 |
| Pin arrangement | W |
| Cable entry | cable gland |
| Market segment | utility |
| Current | 10A |
| Connections - terminals | screw terminal 1-6mm² |
| Product or component type | plug |
