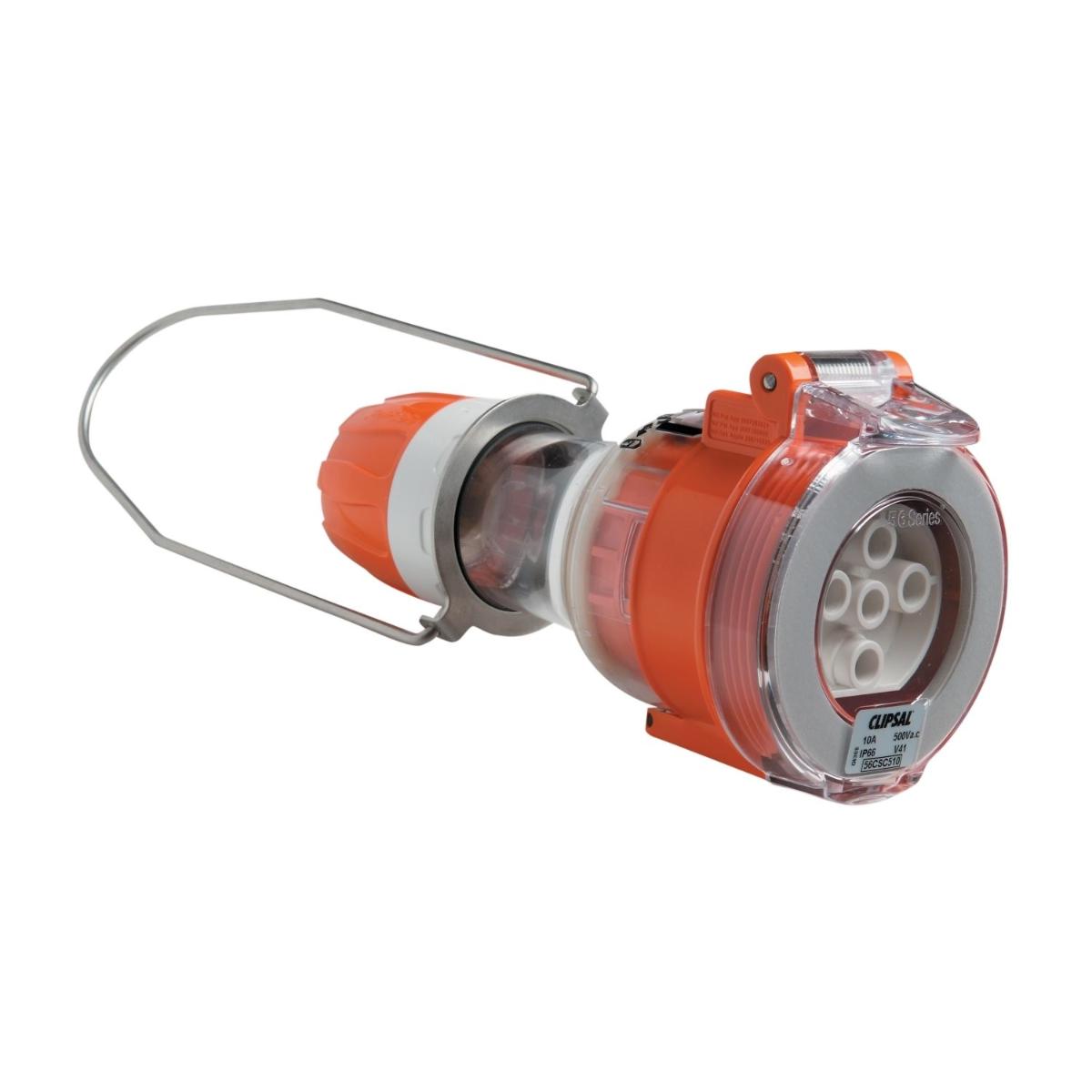

Clipsal 56PO520-EO Pendant Outlet, Clipsal - 56 Series, IP66, 500V 20A - 5 Round Pins, Orange
Code: CLI56PO520EO
Unit of measure:
EACH
Description
Clipsal 56PO520EO 56 Series Pendant Outlet, Unswitched, IP66, 415V, 3 Phase, 20A, 5 Round Pins, 90mm H x 90mm W x 209mm D, Electrical Orange
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole + N + E |
| Mount | Lead |
| Ambient air temperature for operation | -25-75 °C |
| Mounting mode | external mounting |
| Socket-outlet type | R |
| Supplier Code | 56PO520-EO |
| Connection Type | Screw Terminal |
| Number of Pins | 5 Pin |
| Targeted country | Australia |
| Duration | 7 h |
| IP degree of protection | IP66 conforming to AS 60529 |
| Range | 56 Series |
| Weight | 0.36kg |
| Item Name | Pendant Outlet |
| Box Quantity | 1 |
| Socket number | 1 |
| Cable entry | cable gland |
| Market segment | small commercial |
| Current | 20A |
| Connections - terminals | screw terminals 1-6mm² |
| Phase | 3 Phase |
| Colour code | EO |
| Standard | AS/NZS 3120, EN 60309-2, AS 3100 |
| [In] rated current | 20 A |
| Depth | 209mm |
| Colour | Orange |
| Mounting support | pendant |
| Voltage | 500V |
| Height | 90mm |
| Poles description | 3P + N + E |
| Width | 90mm |
| Plug- socket category | low voltage |
| Outlet standard | industrial |
| Plug- socket- control station shape | straight |
| Contacts material | sleeves: brass |
| Device application | power supply |
| [Ue] rated operational voltage | 500 V AC 50 Hz conforming to EN 60309-2 |
| Material | polycarbonate: housing |
| Standards | AS/NZS 3120 |
| Brand Name | Clipsal |
| Cable outer diameter | 7-16mm |
| Voltage colour | black |
| Sockets | 1 Socket |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Net weight | 0.36 kg |
| Thread type | M25 |
| Product or component type | pendant outlet |
