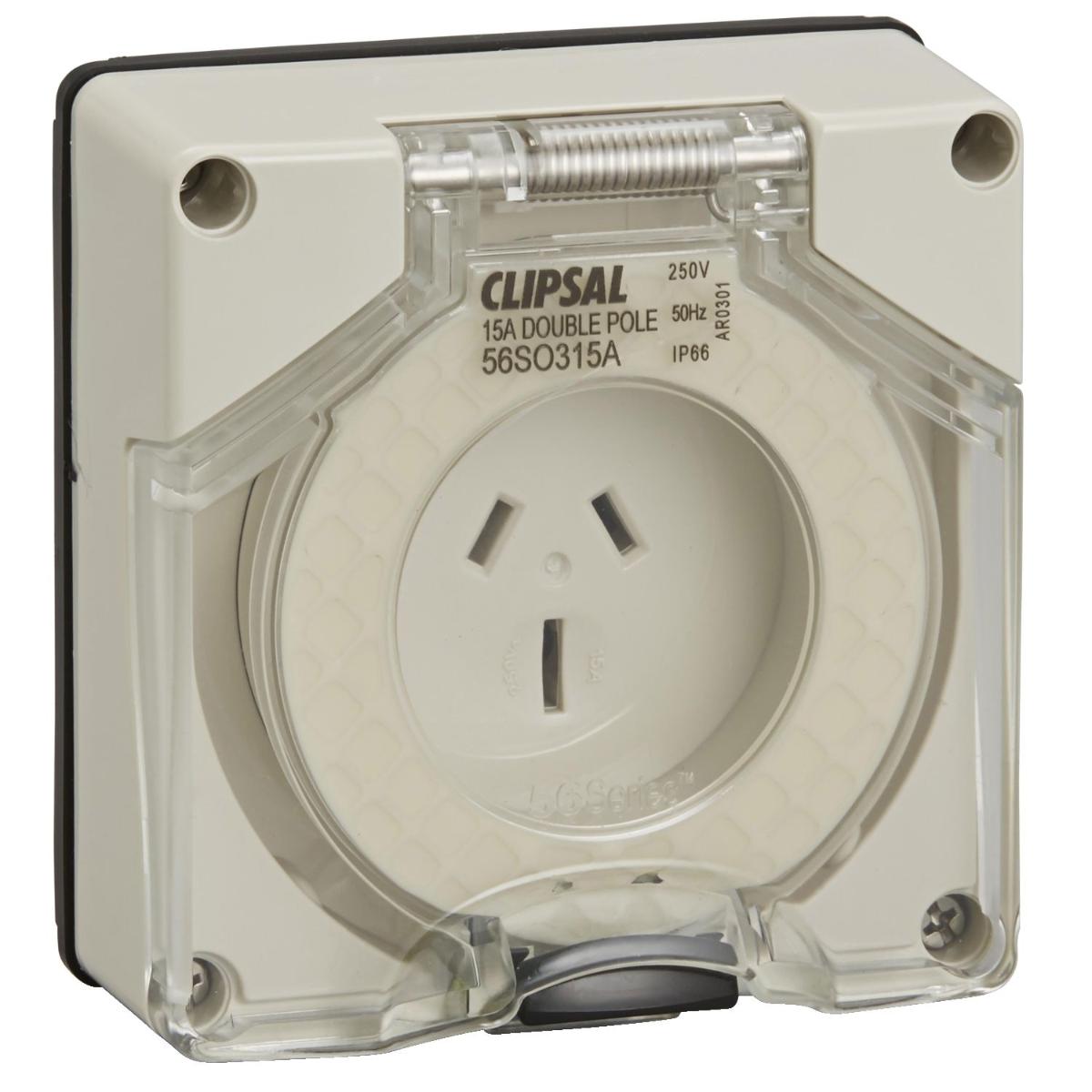

Clipsal 56SO315ALE-GY Socket Outlet, Clipsal - 56 Series, Surface Auto 3 Pole 15A Less Enclosure, Grey
Code: CLI56SO315ALEGY
Unit of measure:
EACH
Description
Clipsal 56SO315ALE-GY 56 Series Socket - 3 Pin - 15a - 250v - Auto Switched - Less Enclosure - Grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 2 Pole |
| Mount | Surface |
| Ambient air temperature for operation | -25-75 °C |
| Mounting mode | external mounting |
| Socket-outlet type | B |
| Supplier Code | 56SO315ALE-GY |
| Connection Type | Screw Terminal |
| Number of Pins | 3 Pin |
| Targeted country | Australia |
| Duration | 6 h |
| Range | 56 Series |
| Weight | 0.22kg |
| Device mounting | surface |
| Item Name | Socket Outlet |
| Box Quantity | 1 |
| Tightening torque | 0.8 N.m |
| Socket number | 1 |
| Market segment | small commercial |
| Current | 15A |
| Connections - terminals | screw terminals 2.5-6mm² rigid or stranded cable |
| Phase | 1 Phase |
| Shape | Rectangular |
| Colour code | GY |
| Standard | EN 60309-2, AS/NZS 4417.1, AS/NZS 3112, AS/NZS 3947 |
| [In] rated current | 15 A |
| Depth | 64mm |
| Colour | Grey |
| Voltage | 250V |
| UNSPCS | 39121400 |
| Height | 107mm |
| Carton Quantity | 45 |
| Poles description | 1P + N + E |
| Width | 101mm |
| Plug- socket category | low voltage |
| Outlet standard | industrial |
| Contacts material | screws: brass |
| Device application | power supply |
| [Ue] rated operational voltage | 250 V AC 50 Hz conforming to EN 60309-2 |
| Pole Configuration | 2 Pole |
| Material | polycarbonate: cover |
| Outlet standard deviation | Australian/New Zealand |
| Standards | AS/NZS 3112 |
| Brand Name | Clipsal |
| Number of Modules | 1 Modules |
| Voltage colour | blue |
| Sockets | 1 |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Net weight | 0.22 kg |
| Product or component type | socket-outlet |
