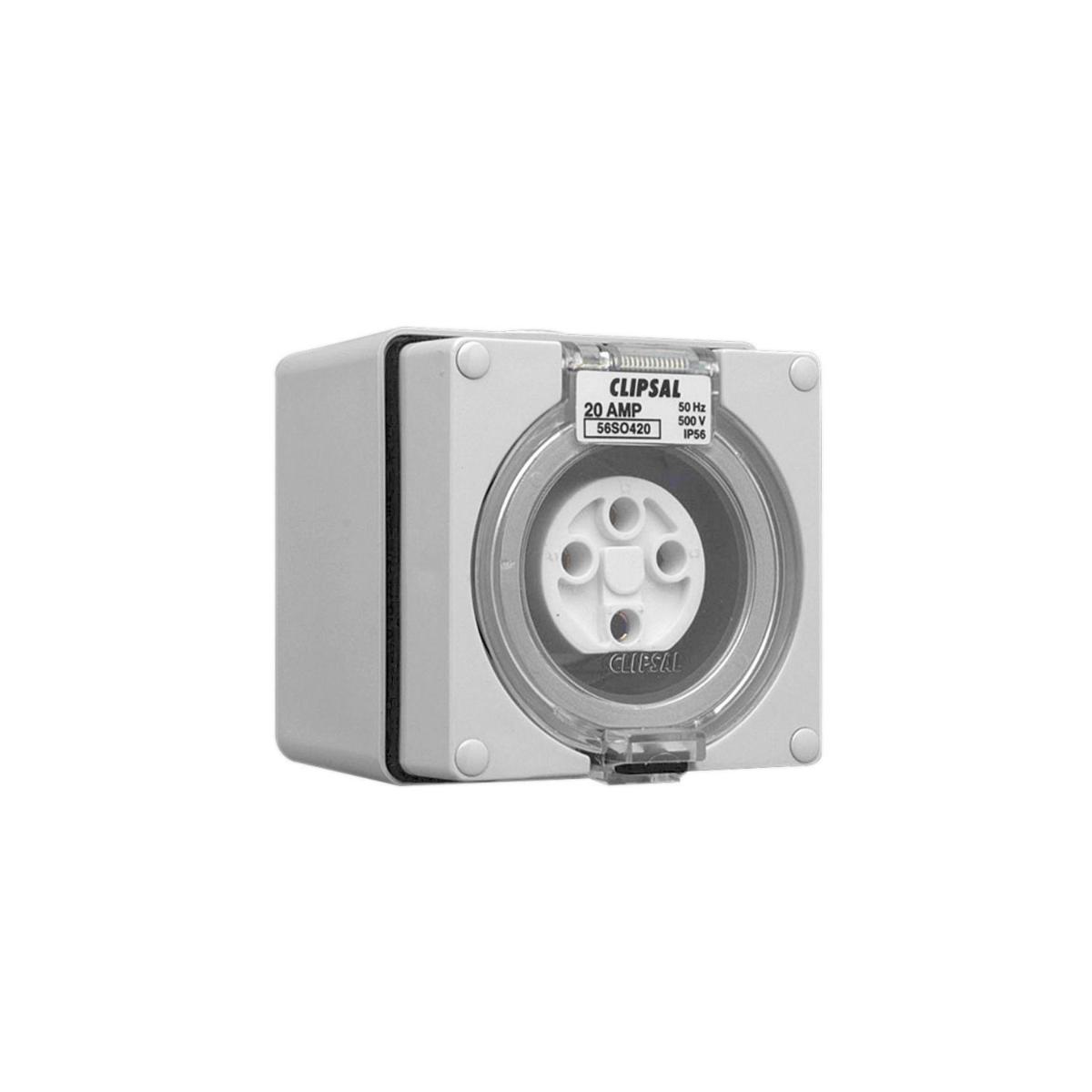

Clipsal 56SO420-RO Surface Socket, Clipsal - 56 Series, IP66, 500V 20A - 4 Round Pins, Orange
Code: CLI56SO420RO
Unit of measure:
EACH
Description
Clipsal 56SO420-RO 56 Series Socket - 4 Pin - 20a - 500v - Orange
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole + E |
| Colour code | RO |
| Mount | Surface |
| Standard | AS/NZS 3112 |
| [In] rated current | 20 A |
| Ambient air temperature for operation | -25-75 °C |
| Depth | 102mm |
| Colour | Orange |
| Mounting mode | external mounting |
| Socket-outlet type | L |
| Supplier Code | 56SO420-RO |
| Connection Type | Screw Terminal |
| Voltage | 500V |
| Height | 107mm |
| Poles description | 3P + E |
| Width | 101mm |
| Plug- socket category | low voltage |
| Outlet standard | industrial |
| Targeted country | Australia |
| Contacts material | screws: brass |
| Device application | power supply |
| [Ue] rated operational voltage | 500 V AC 50 Hz conforming to EN 60309-2 |
| Duration | 7 h |
| Material | PC + PET: cover |
| Outlet standard deviation | Australian/New Zealand |
| Range | 56 Series |
| Standards | AS/NZS 3112 |
| Weight | 0.6kg |
| Brand Name | Clipsal |
| Device mounting | surface |
| Voltage colour | black |
| Sockets | 1 Socket |
| Tightening torque | 0.8 N.m |
| Net weight | 0.6 kg |
| Socket number | 1 |
| Market segment | utility |
| Current | 20A |
| Connections - terminals | screw terminals 2.5-6mm² rigid or stranded cable |
| Product or component type | socket-outlet |
