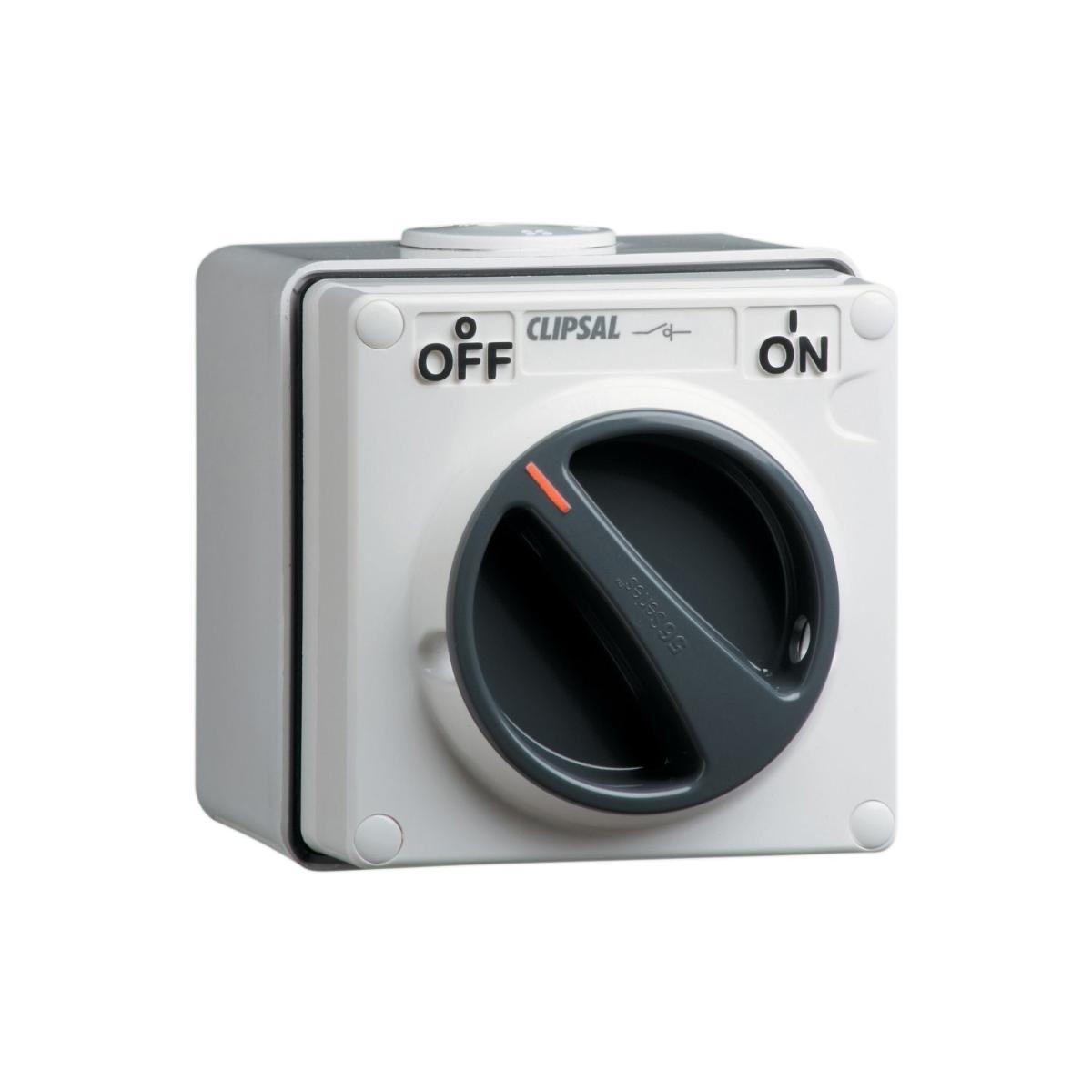

Clipsal 56SW220-CG Surface Switch, Clipsal - 56 Series, 1 Gang, 2 Pole, 500VAC, 20A, Grey
Code: CLI56SW220CG
Unit of measure:
EACH
Description
Clipsal 56SW220-CG Switch Surface Pvc Ip66 1 Gang Double Pole 20a. 56sw220-gy Replaces Wism116-dp
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 2 Pole |
| Legend | On/Off |
| Phase | 2 Phase |
| Shape | Rectangular |
| [Icm] rated short-circuit making capacity | 1 kA |
| Colour code | CG |
| Mount | Surface |
| Standard | AS/NZS 3133, AS/NZS 3947.3, AS/NZS 3120 |
| Depth | 108mm |
| Colour | Grey |
| Rated current | 20 A |
| Gang | 1 Gang |
| Supplier Code | 56SW220-CG |
| Voltage | 500V |
| Connection Type | Screw Terminal |
| Carton Quantity | 24 |
| Height | 107mm |
| Width | 101mm |
| [Icw] rated short-time withstand current | 1.2 kA for 1 s |
| Fixing mode | by screws |
| [Ue] rated operational voltage | 500 V AC |
| Pole Configuration | 2 Pole |
| Control type | rotary knob |
| Material | PC (polycarbonate) |
| Marking | ON-OFF |
| Range | Series 56 |
| Ways | 1 Way |
| Standards | AS/NZS 3947-3 |
| Weight | 0.508kg |
| Brand Name | Clipsal |
| Device mounting | surface |
| Item Name | Surface Switch |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Device presentation | basic element with full cover plate |
| Number of Modules | 1 Modules |
| Box Quantity | 1 |
| IP Rating | IP66 |
| Marking location | marking on surface |
| Local signalling | without |
| Switch function | 2-pole |
| Frequency | 50Hz |
| Current | 20A |
