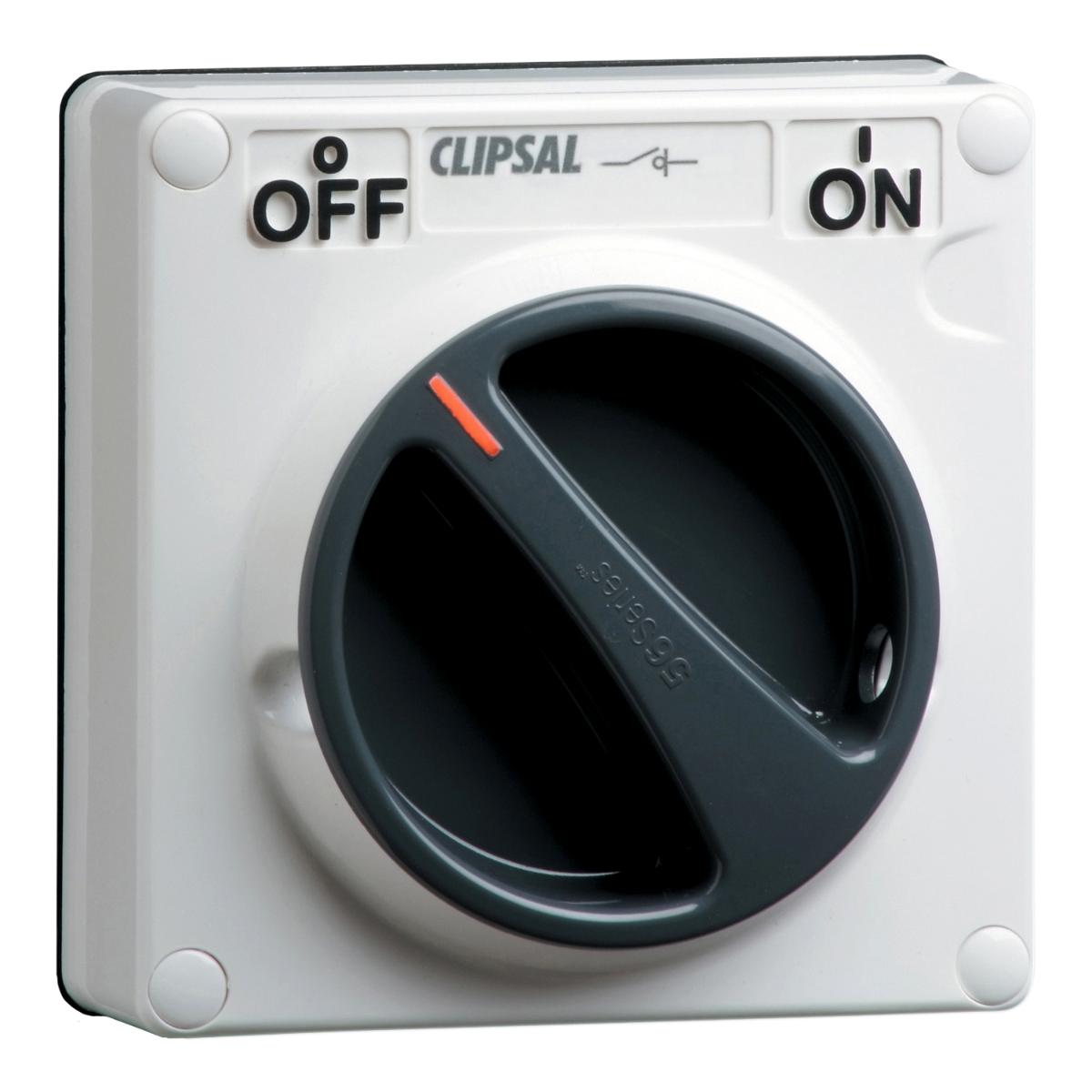

Clipsal 56SW250LE-GY Surface Switch, Clipsal - 56 Series, IP66 1 Gang Double Pole 50A Less Enclosure, Grey
Code: CLI56SW250LEGY
Unit of measure:
EACH
Description
ISOLATOR IP66 1G DP 50A 1WAY L/E GREY
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| [Icm] rated short-circuit making capacity | 2.1 kA |
| Colour code | GY |
| Suitability for isolation | yes |
| Motor M-rating AS3133 | M250 at 250 V |
| Ambient air temperature for operation | -25-75 °C |
| Depth | 72mm |
| Colour | Grey |
| Rated current | 50 A |
| Supplier Code | 56SW250LE-GY |
| Breaking capacity | 50 kA |
| Height | 107mm |
| Poles description | 2P |
| Width | 101mm |
| [Icw] rated short-time withstand current | 1.5 kA for 1 s |
| Targeted country | Australia |
| Device application | control |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Control type | rotary knob |
| Material | PC (polycarbonate) |
| Pole Configuration | 2 Pole |
| Marking | ON-OFF |
| IP degree of protection | IP66 conforming to AS 60529 |
| Range | 56 Series |
| Standards | AS/NZS 3133 |
| Brand Name | Clipsal |
| Device mounting | surface |
| Rotary handle padlocking | 2 padlocks 8-8mm |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Device presentation | basic element with full cover plate |
| Marking location | marking on surface |
| Local signalling | without |
| Tightening torque | 0.8 N.m |
| Switch function | 2-pole |
| Net weight | 0.001 kg |
| Market segment | utility |
| Handle colour | grey |
| Product or component type | switch |
