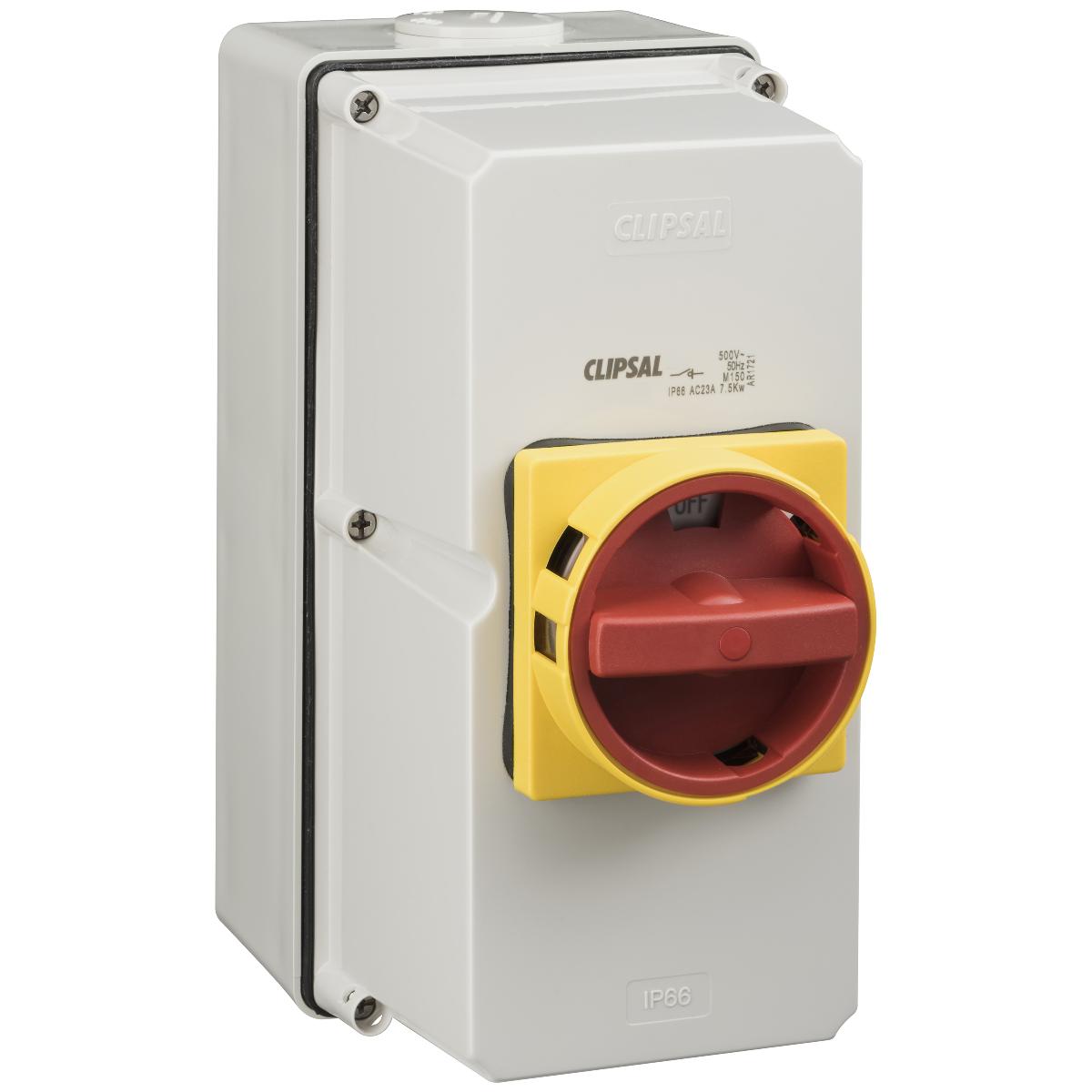

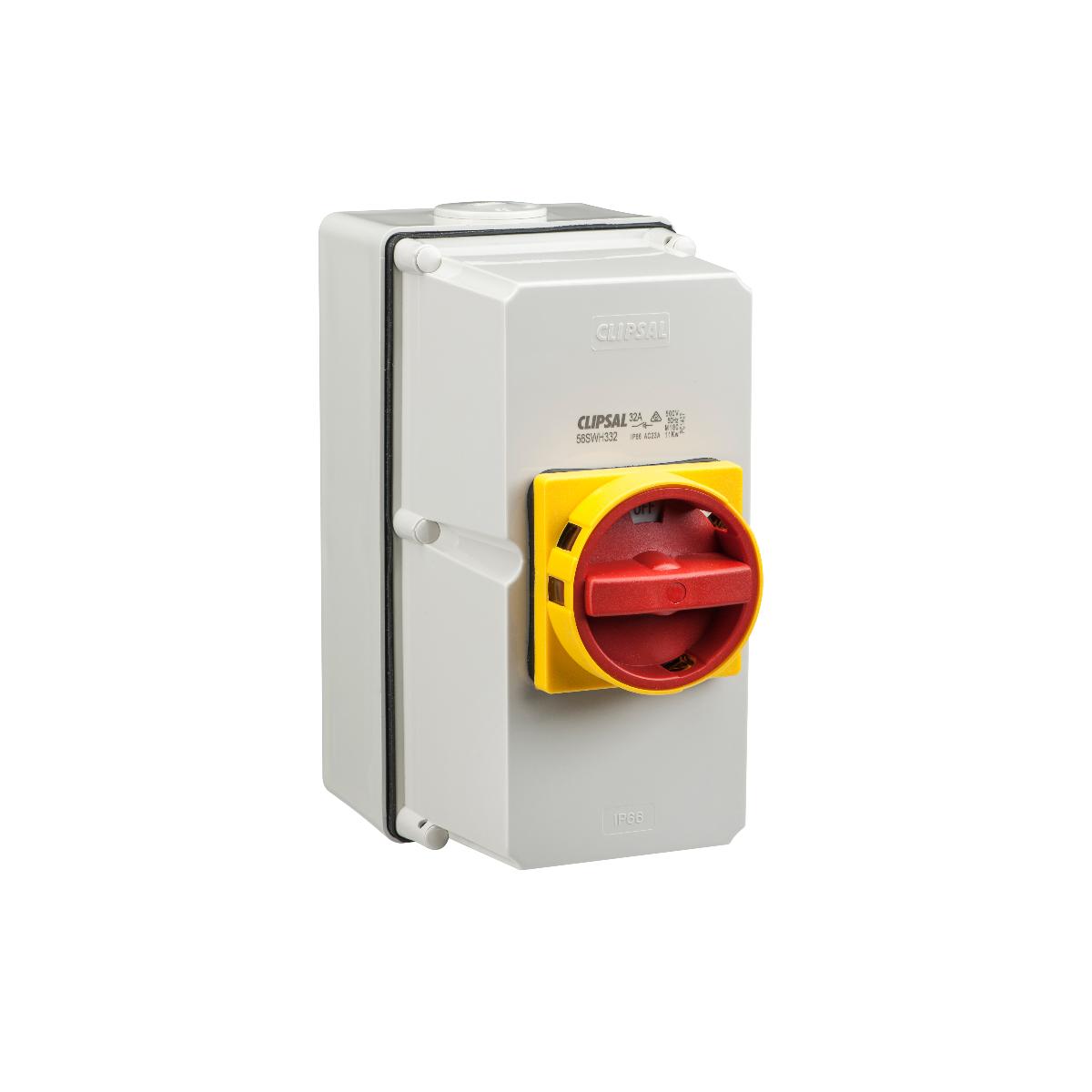

Clipsal 56SWH363-GY 56 Series Switch, Isolator, Rotary Operator,Heavy Duty, IP66, 415V, 3 Phase, 1 Way, 63A, Surface Mount, 204mm H x 101mm W x 172mm D, Grey
Code: CLI56SWH363GY
Unit of measure:
EACH
Description
Clipsal 56SWH363-GY 56 Series Switch, Isolator, Rotary Operator,Heavy Duty, IP66, 415V, 3 Phase, 1 Way, 63A, Surface Mount, 204mm H x 101mm W x 172mm D, Grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole |
| Phase | 3 Phase |
| Shape | Rectangular |
| Mount | Surface |
| Standard | AS/NZS 3133, AS/NZS 3947.3, AS/NZS 3120 |
| Depth | 172mm |
| Colour | Grey |
| Gang | 1 Gang |
| Supplier Code | 56SWH363-GY |
| Voltage | 500V |
| Connection Type | Screw Terminal |
| Height | 204mm |
| Width | 101mm |
| Material | Polycarbonate |
| Range | 56 Series |
| Ways | 1 Way |
| Weight | 1.14kg |
| Brand Name | Clipsal |
| Item Name | Surface Switch |
| Number of Modules | 2 Modules |
| Box Quantity | 1 |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Current | 63A |
