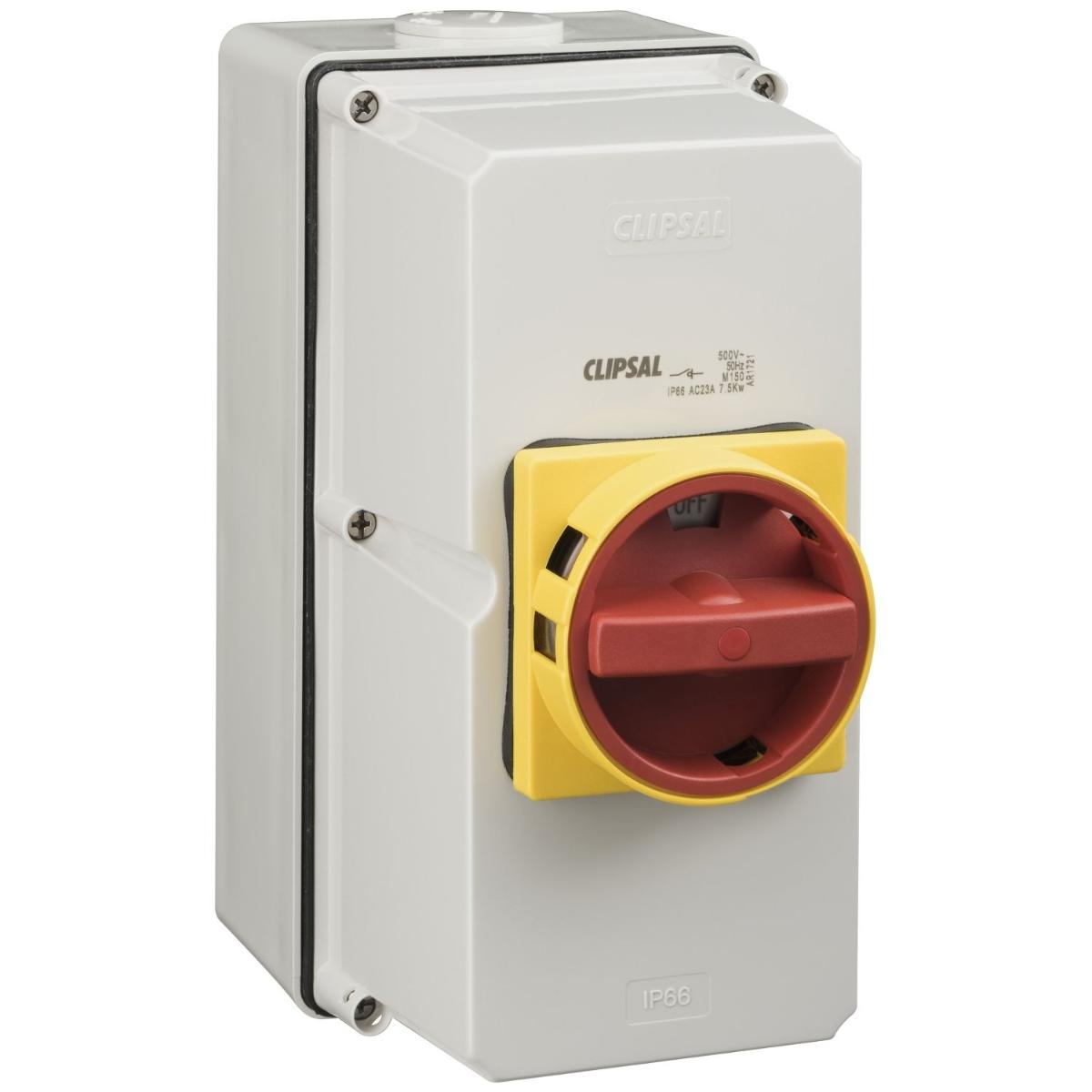

Clipsal 56SWH440-GY Surface Switch, Clipsal - 56 Series, 1 Gang, 4 Pole, 690VAC, 40A, Heavy Duty, Grey
Code: CLI56SWH440GY
Unit of measure:
EACH
Description
Clipsal 56SWH440-GY 56 Series - Switch - 2 Gang Base Mount - 4 Pole - 40a - 500v - Grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 4 Pole |
| Mount | Surface |
| Ambient air temperature for operation | -25-75 °C |
| Gang | 1 Gang |
| Supplier Code | 56SWH440-GY |
| Connection Type | Screw Terminal |
| Breaking Capacity | 40 kA |
| Targeted country | Australia |
| Fixing mode | by screws |
| Control type | rotary knob |
| IP degree of protection | IP66 conforming to AS 60529 |
| Range | 56 Series |
| Ways | 1 Way |
| Weight | 1.1kg |
| Device mounting | surface |
| Item Name | Surface Switch |
| Device presentation | basic element with full cover plate |
| Box Quantity | 1 |
| Local signalling | without |
| Tightening torque | 0.8 N.m |
| Switch function | 4-pole |
| Market segment | utility |
| Current | 40A |
| Phase | 3 Phase |
| Shape | Rectangular |
| Colour code | GY |
| Standard | AS/NZS 3133, AS/NZS 3947.3, AS/NZS 3120 |
| Suitability for isolation | yes |
| Motor M-rating AS3133 | M220 at 690 V |
| Depth | 172mm |
| Colour | Grey |
| Rated current | 40 A |
| Voltage | 500V |
| Height | 204mm |
| Poles description | 4P |
| Width | 101mm |
| Device application | control |
| [Ue] rated operational voltage | 500 V AC 50 Hz |
| Pole Configuration | 4 Pole |
| Material | PC (polycarbonate) |
| Marking | without marking |
| Standards | AS/NZS 3133 |
| Brand Name | Clipsal |
| Rotary handle padlocking | 2 padlocks 8-8mm |
| Number of Modules | 2 Modules |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Net weight | 1.24 kg |
| Handle colour | red |
| Product or component type | switch |
