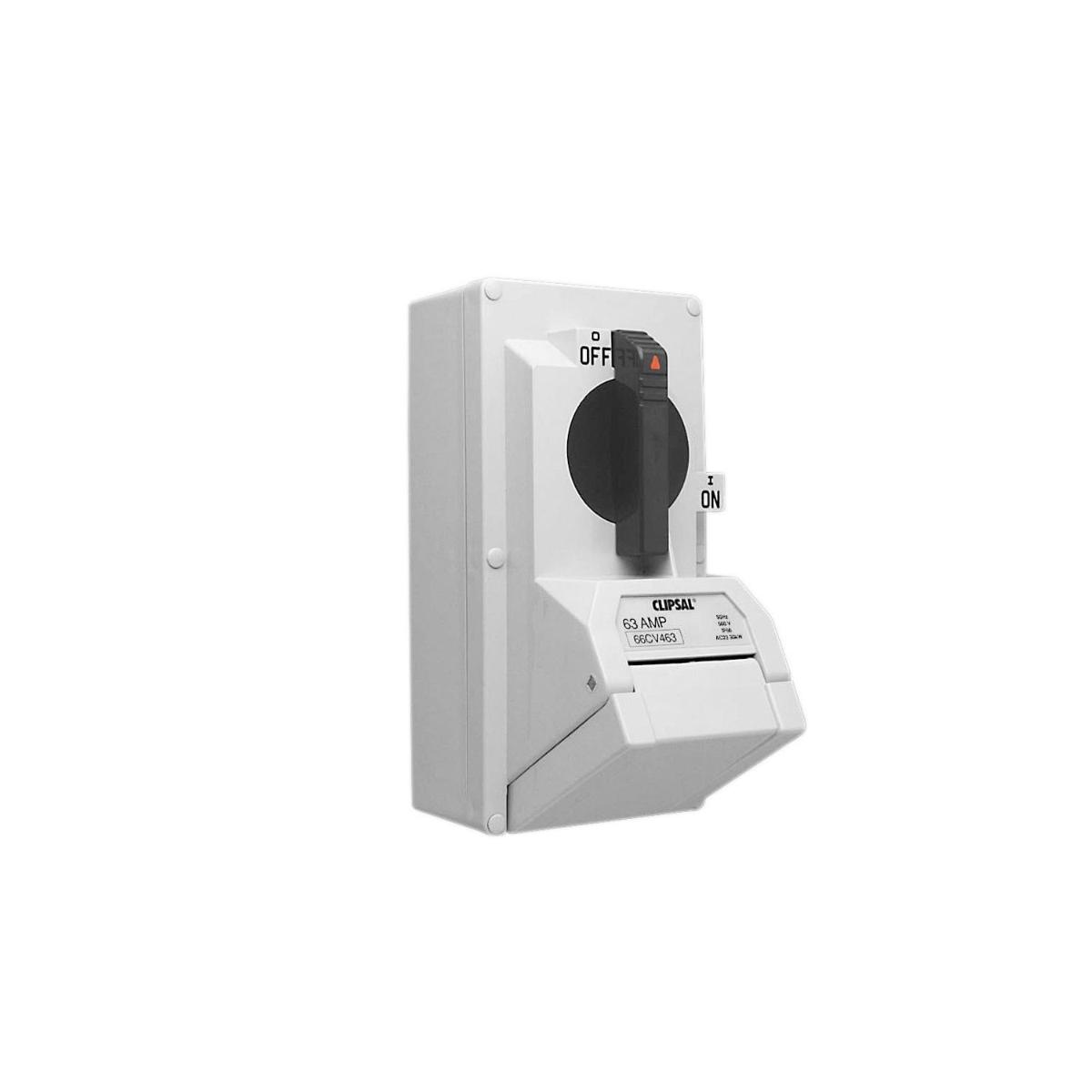

Clipsal 66CV463-RG Switched Socket Pvc Ip66 4 Pin 63a
Code: CLI66CV463RG
Unit of measure:
EACH
Description
Clipsal 66CV463-RG Switched Socket Pvc Ip66 4 Pin 63a
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Poles | 3 Pole + E |
| Phase | 3 Phase |
| Shape | Rectangular |
| Mount | Surface |
| Standard | AS 60529, AS/NZS 3947.3 |
| Depth | 215mm |
| Colour | Grey |
| Gang | 1 Gang |
| Supplier Code | 66CV463-RG |
| Voltage | 500V |
| Connection Type | Screw Terminal |
| Number of Pins | 4 Pin |
| UNSPCS | 39121400 |
| Height | 320mm |
| Width | 160mm |
| Material | Polycarbonate |
| Range | 66 Series |
| Weight | 4.07kg |
| Brand Name | Clipsal |
| Item Name | Switchplug Combination |
| Number of Modules | 2 Modules |
| Box Quantity | 1 |
| Sockets | 1 |
| IP Rating | IP66 |
| Frequency | 50Hz |
| Current | 63A |
