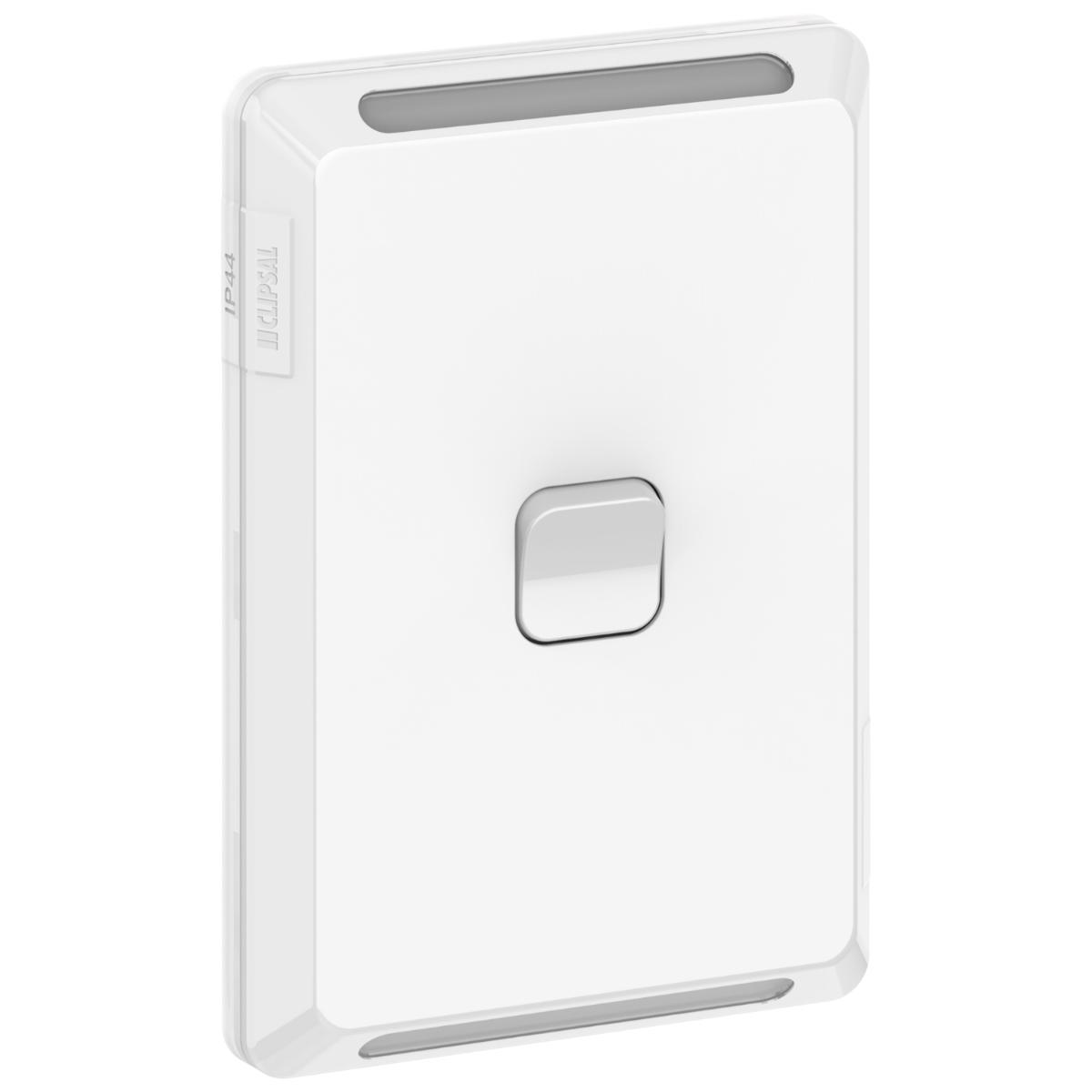

Clipsal P3041V44-XW Switch, Pro Series, Vertical 1 Gang, 1/2 Way 20A, /16AX 230/240V, IP44, Extra White
Code: CLIP3041V44XW
Unit of measure:
EACH
Description
Clipsal P3041V44XW 10 Amp 1 Gang Pro Series Vertical Internal Waterproof Rocker Switch IP44 White
Switch assembly. Pro Series skin grid and switch mechanism are included. Suitable for 1-gang vertical installations. Clipsal Pro Series. IP: 44. Colour: Extra White Rated current: 20A / 16AX Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Relative humidity | 10-95 % |
| Colour tint | white |
| Ambient air temperature for operation | 0-45 °C |
| Installation direction | vertical |
| Depth | 40mm |
| Colour | Extra White |
| Height Packaging (mm) | 40 |
| Rated current | 20 A/16 AX |
| Grid Plate Size | Standard Size |
| Supplier Code | P3041V44-XW |
| Length Packaging (mm) | 120 |
| Height | 116mm |
| Width | 78mm |
| Type of packing | polybag |
| Amperage Range | 10 Amp |
| Fixing mode | by screws |
| Device application | lighting |
| [Ue] rated operational voltage | 230/240 V |
| Switch Type | Rocker |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Control type | rocker |
| Quantity per set | set of 5 |
| IP degree of protection | IP44 |
| Range | Pro Series |
| Clamping connection capacity | 3 x 2.5mm² for stranded cable(s) |
| Orientation | Universal |
| Weight | 0.1Kg |
| Surface treatment | untreated |
| Number of rocker | 1 |
| Product certifications | RCM |
| Brand Name | Clipsal |
| Device mounting | wall |
| Surface finish | glossy |
| Series | Clipsal PRO |
| Device presentation | complete product |
| Number Of Switches | 1 |
| Length | 120mm |
| Specialty Feature | Waterproof |
| Barcode (Secondary) | 9311554804909 |
| Switch function | 1-pole 1/2-way |
| Net weight | 0.105 kg |
| Width Packaging (mm) | 85 |
| Connections - terminals | screw terminal |
| Product or component type | switch |
