Description

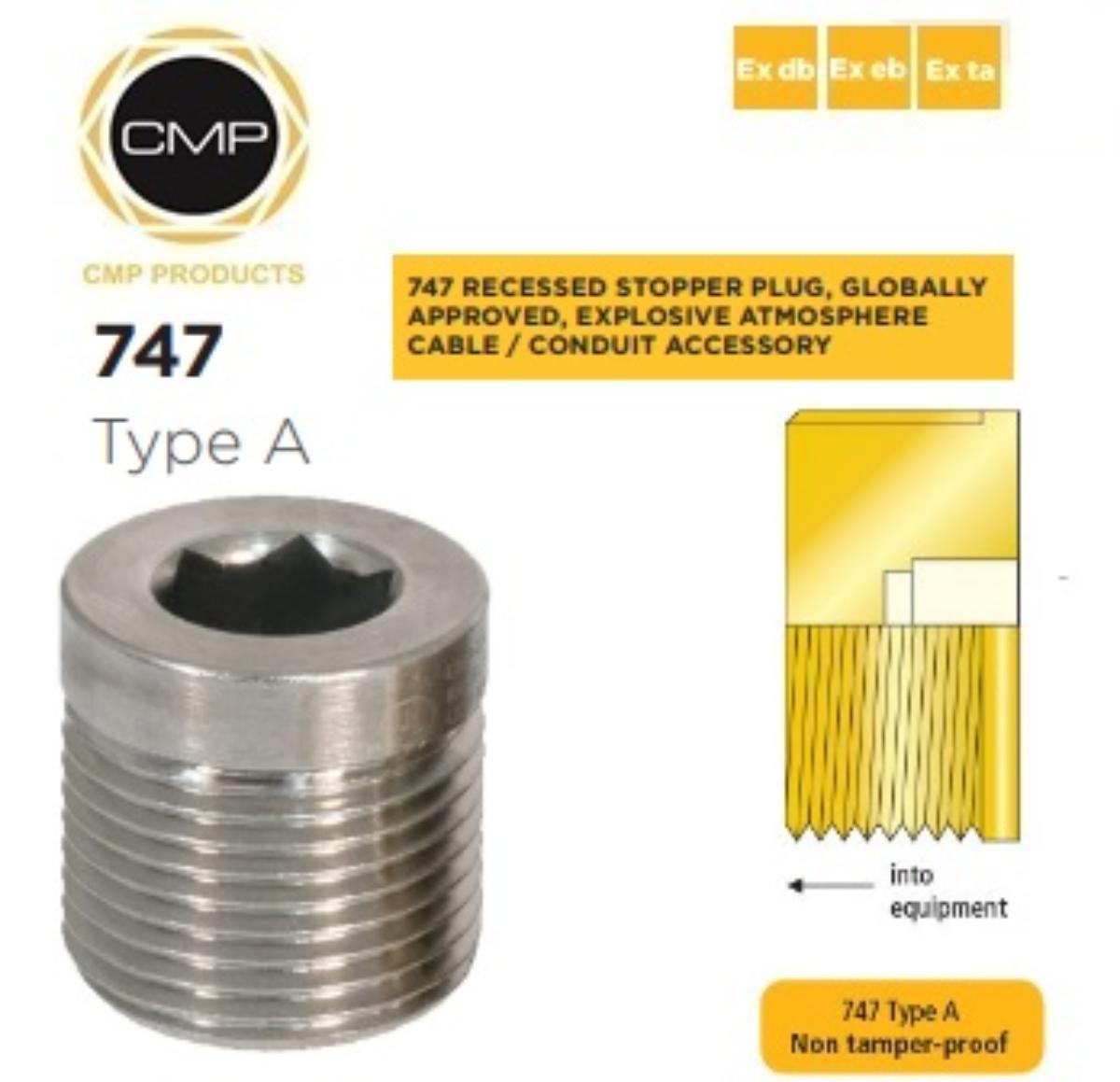

CMP 747DAM45 Plug Stop (Ex d) 747 Type A Recess A/Key NPB M32
Plug Stop (Ex d) 747 Type A Recess A/Key NPB M32
Features:
• Plug Stop (Exd/Exe) Type A Recess Allen Key 747 Series , Nickel Plated Brass (NPB) M32 x 15.0mm Thread length
• 747 recessed stopper plug, globally approved, explosive atmosphere cable / conduit accessory
• Provides means of blanking unused cable entries
• For use with threaded entry holes only – for stopper plugs suitable for use in clearance/through holes, please see 757 or 767
• Tamper-proof (Type B) version available
• -60˚C to 200˚C
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Screwed (Y/N) | Y |
| Size | M32 |
| Material | Nickel Plated Brass (NPB) |
| Colour | Silver |
| Brand Name | CMP Products |
| Box Qty | 1 |
| Series | 747 Series , |
| UOM | EACH |
| Length | 20mm |
| IP Rating | IP66 |
| Height | 32mm |
| Width | 32mm |
| Mounting thread Length (mm) | (M) 15mm Thread length |
