CMP 797DM3MT2M5 ADAPTOR MALE TO MALE (Exd) 797 NPB M25(M)X3/4InchNPT(M)

Code: CMP797DM3MT2M5

Brand: CMP Products

Unit of measure: EACH

Description

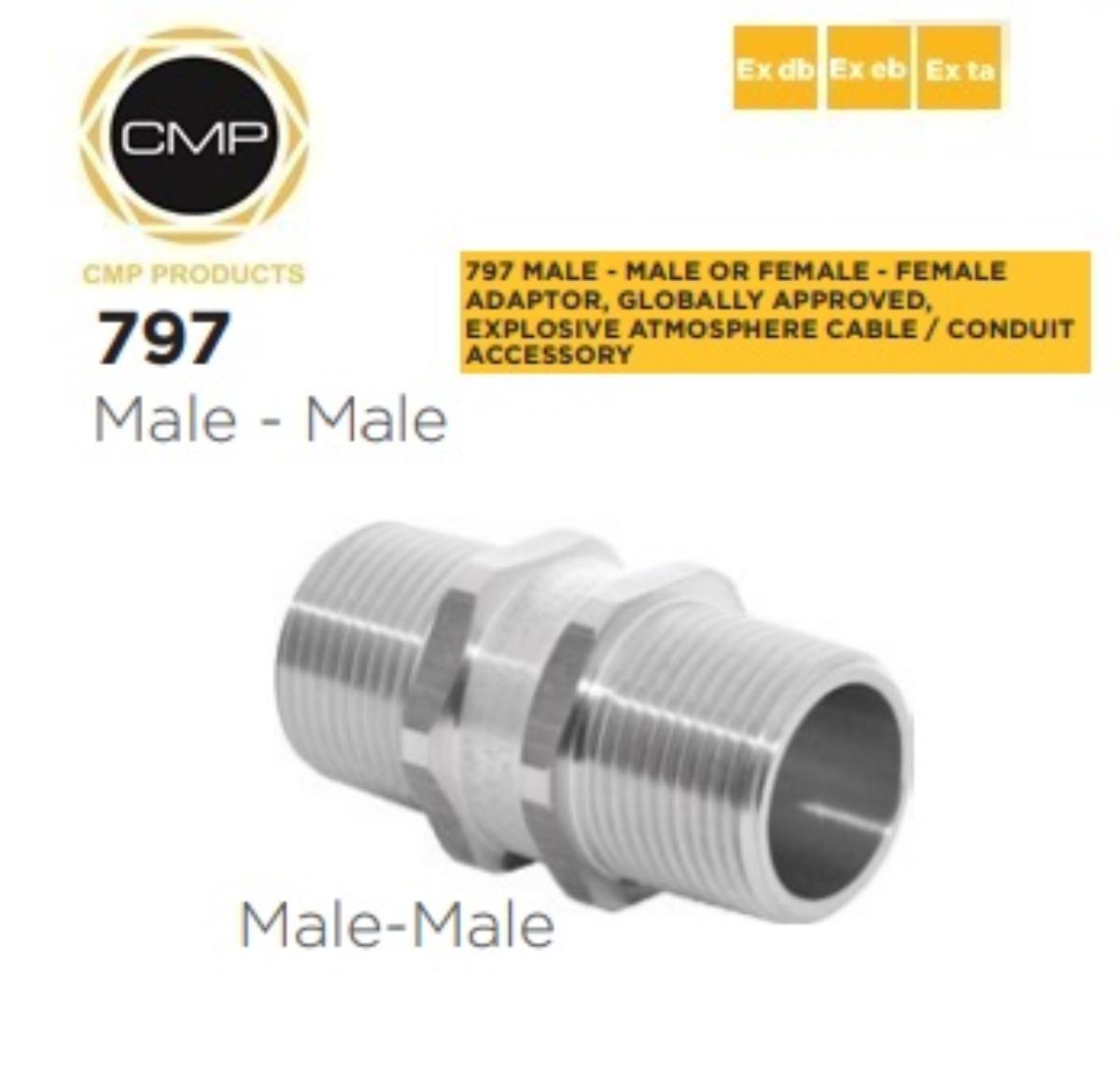

CMP 797DM3MT2M5 ADAPTOR MALE TO MALE (Exd) 797 NPB M25(M)X3/4InchNPT(M)

ADAPTOR MALE TO MALE (Exd) 797 NPB M25(M)X3/4InchesNPT(M)

Features:
• Adaptor ( Male to Male) (Exd/Exe) 797 Series , Nickel Plated Brass (NPB) M25(M)X3/4"NPT(M)
• Designed to convert existing threads
• Supplied with male or female threads
• Can be supplied with thread conversion
• Equipment interface o-ring seal available on male-male
• -60˚C to 200˚C

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Brand Name	CMP Products
Box Qty	1
Series	797 Series ,
UOM	EACH
Length	48.9mm
IP Rating	IP66, IP67 and IP68***
Size	M25(M)X3/4NPT(M)
Height	33.6mm
Material	Nickel Plated Brass (NPB)
Width	30.5mm
Mounting thread Length (mm)	(M) 15mm Thread length
Colour	Silver
