Description

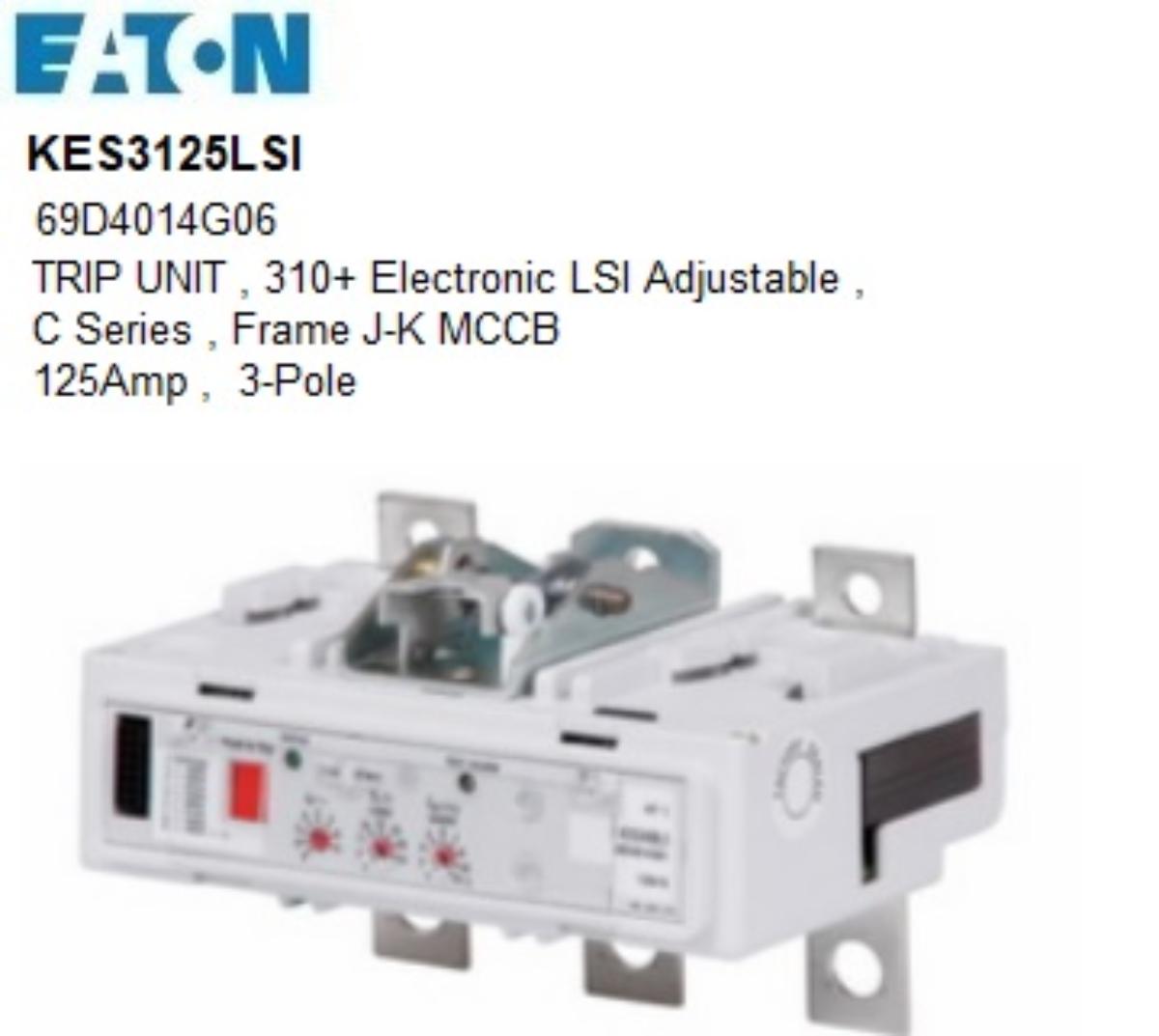

Eaton 69D4014G06 Circuit Breaker MCCB TRIP UNIT, 310+ Electronic LSI Adjustable, C Series, Frame J-K, 125Amp, 3-Pole, 55, 60, 70, 80, 90, 100, 110, 125 Amps, Electronic Trip Independently Adjustable Short Time Pickup and Delay Trip Unit Only KES3125LSI
Circuit Breaker MCCB TRIP UNIT, 310+ Electronic LSI Adjustable, C Series, Frame J-K, 125Amp, 3-Pole , 55, 60, 70, 80, 90, 100, 110, 125 Amps, Electronic Trip Independently Adjustable Short Time Pickup and Delay Trip Unit OnlyKES3125LSI
Features:
• EATON Trip Unit, Electronic Adjustable LSI, Series: C Series, 3 Pole, 125 A, J/K Breaker Frame, For Use With: Types CKD and CHKD Electronic Circuit Breakers
• Electronic adjustable LSI trip type
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Frame | K |
| Curve | Electronic Trip Unit Independently Adjustable Short Time Pickup and Delay |
| Pole Configuration | 3 Pole |
| Range | Series C , Frame J-K |
| Brand Name | Eaton |
| Item Name | Trip Unit |
| EAN/UPC | 2000000050164 |
| UOM | EACH |
| Type | RMS 310 Digitrip Trip Unit |
| Voltage | 600Vac |
| UNSPSC | 39121616 |
| Rated Current | 125A |
| Number of Poles | 3 |
| Current | 125A |
| Breaking Capacity | 35 kAIC at 480 Vac |
