Description

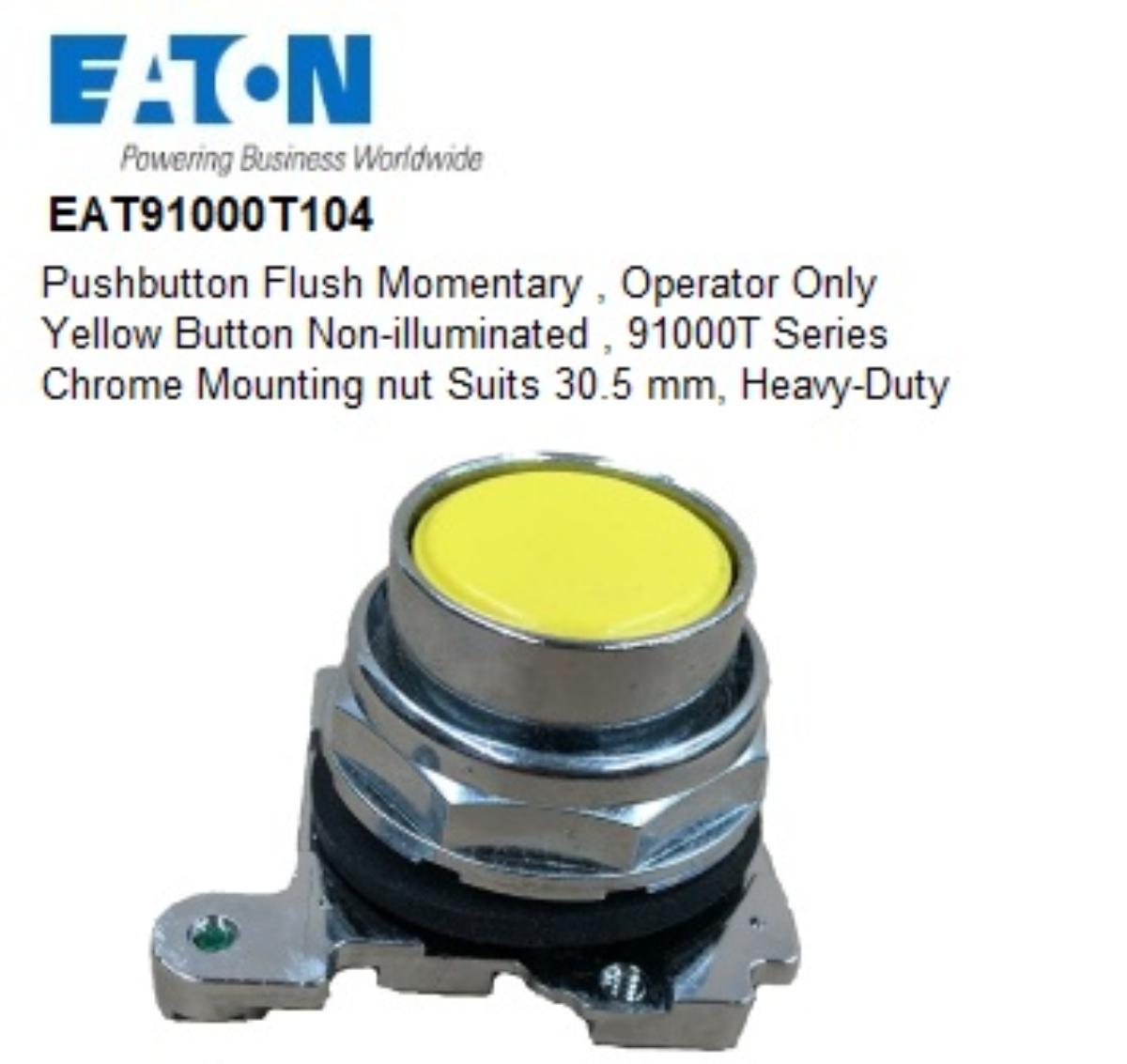

Pushbutton Flush Momentary, Operator Only Yellow Button Non-illuminated, 91000T Series Chrome Mounting nut Suits 30.5 mm, Heavy-Duty
Features:
• Mechanical life Pushbuttons: 10 x 106 operations
• Max. frequency of operations All pushbuttons: 6000 ops/hr
• Ingress protection (IP ratings to IEC144 (BS5420))
• IP65 IP66, NEMA 4 on pushbuttons when fitted with a rubber boot IP65 on enclosures
• Panel thickness : Minimum = 1.6mm to Maximum = 8mm including legend plate
• Climatic conditions Operating: Max 60degrees Celsius at 95% RH. Temp. –17degrees Celsius to +66degrees Celsius
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Pushbutton & Accessories |
| Operator Type | Flush |
| Standard | CE EN 60947-5-1, UL 508 File No. 131568, CSA C22.2 No. 14 File No. LR68551 |
| Material | zinc die cast construction with chrome plated housing and mounting nut. |
| Actuator Only / Complete | Actuator Only |
| Thread Size | 30.5 mm |
| Range | 91000T Series |
| Colour | Yellow Button |
| Brand Name | Eaton |
| Item Name | Push Button |
| Type | Pushbutton Flush |
| Bezel Material | Metal |
| IP Rating | Ingress protection (IP ratings to IEC144 (BS5420)) |
| Degree of Protection | IP66 |
| Diameter | 30.5 mm |
| Engraved | No |
