Description

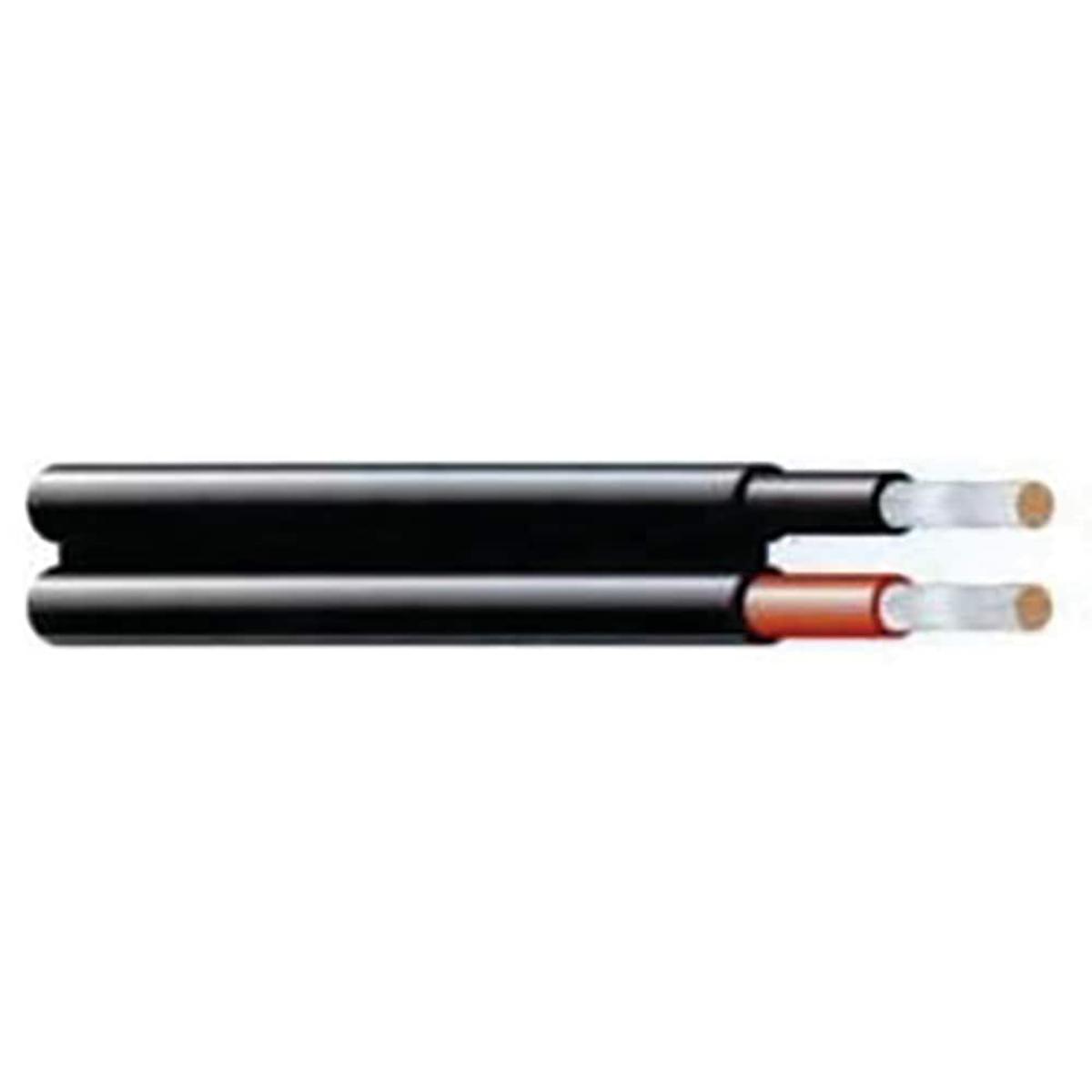

Electra Cables DC Solar Cable 4mm2 Twin PV1-F, 2 Cores, 1.5kV, Annealed Tinned Copper, 100m Length, Cross-linked Polyolefin, Black
The Electra Cables DC Solar Cable is a high-performance solution specifically designed for photovoltaic applications. This 4mm2 twin-core cable features a robust construction with annealed tinned copper conductors, ensuring excellent conductivity and durability. Rated for a voltage of 1.5kV, it is suitable for various solar energy installations, providing reliable power transmission in demanding environments. With an insulation and sheath material made from cross-linked polyolefin, this cable can withstand temperatures up to 120°C, making it ideal for outdoor use. The cable's diameter of 6mm allows for easy installation in various settings, including free-moving, fixed, or hanging configurations. Additionally, it complies with several international standards such as AS/NZS 5033:2021 and IEC62930, ensuring safety and performance in solar applications.
Features:
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Size | 4mm2 |
| Compliance Standards and Approvals | AS/NZS 5033:2021,IEC62930,IEC60332-1-2,IEC 60811-403 |
| Colour | Black |
| Brand Name | Size |
| Insulation Material | Cross-linked Polyolefin |
| Type | Solar Cable |
| UOM | Metric |
| Sheath Material | Cross-linked Polyolefin |
| Length | 100m |
| Voltage | 1.5kV |
| Cable Drum Length | 100m |
| Conductor Material | Annealed Tinned Copper |
| Temperature Range | 120°C |
| Number of Cores | 2 |
| Diameter | 6mm |
