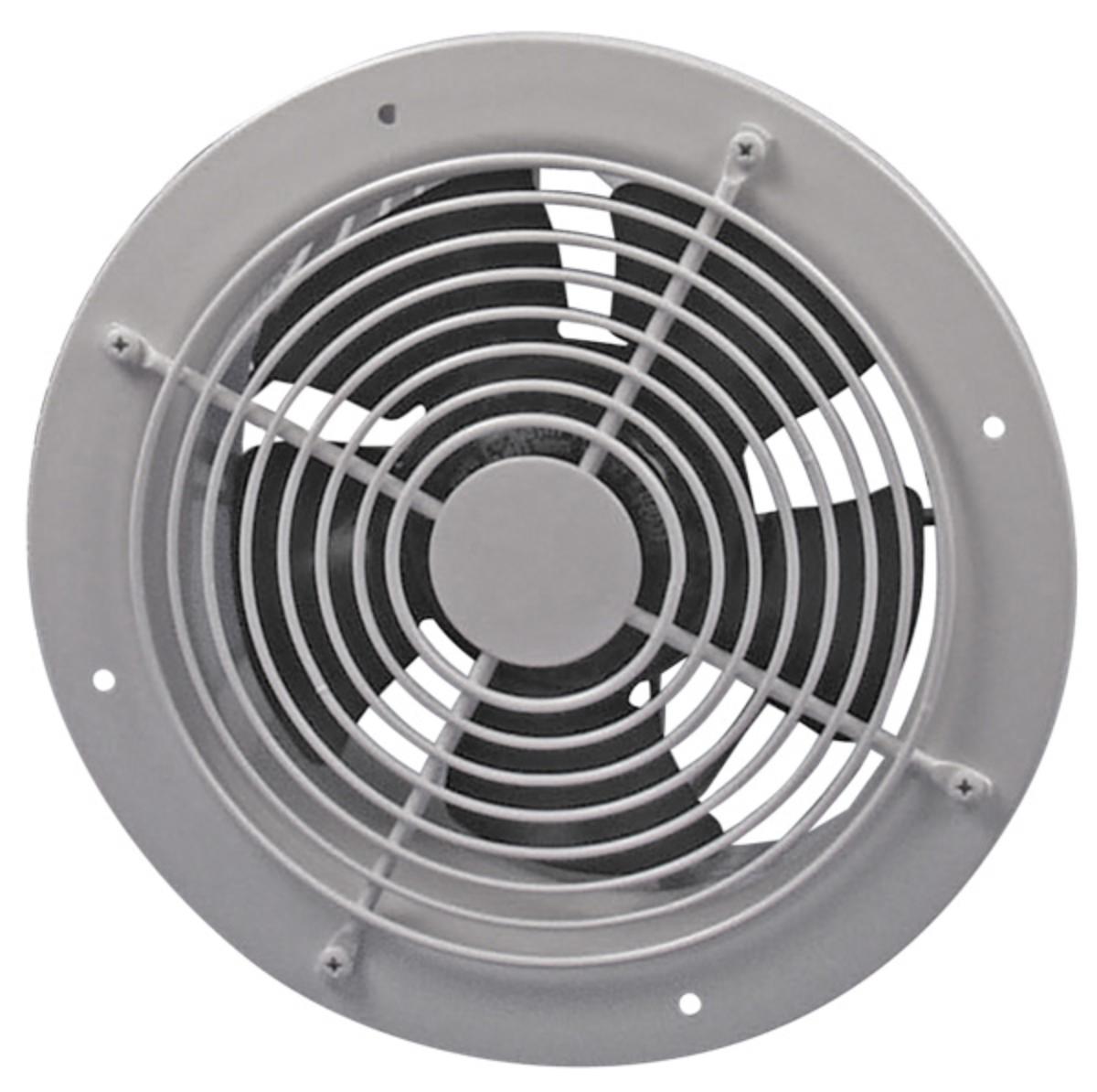

FANTECH RP252 Ring Plate Industrial 250mm 2pole Wall/Ceiling Fan
Code: FANRP252
Unit of measure:
EACH
Description
FANTECH RP252 Ring Plate Industrial 250mm 2pole Wall/Ceiling Fan
The Ring Plate Axial Fans are suitable for wall or ceiling mounting and feature a high quality galvanised steel casing, grille and impeller. Their robust construction makes them suitable for a broad range of commercial and industrial applications.
Features:
• 250mm dia, IP44, 1ph 230V, 0.183kW, 0.88A, 2725rpm
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Power Rating | 110 W |
| Blade Diameter | 250 mm |
| Speed Rating | 42 rps |
| Phase | 1 |
| Category | Exhaust Fans |
| Noise | 51 dB |
| Ducted (Y/N) | N |
| Mount | Ceiling/Wall |
| Standard | ISO 5801:2004, BS 848:Part 2, 1985 |
| Colour | Grey |
| Height Packaging (mm) | 345 |
| Air Delivery Cubic Metres (Average) | 1601-1700 |
| Voltage | 240 V |
| Length Packaging (mm) | 60 |
| Degree of Protection | IP44 |
| Height | 160 |
| Finish | Powder Coated |
| Width | 340 |
| Diameter | 250mm |
| Finish/Color | Powder Coated |
| Warranty | 18 Months* |
| Motor | External Rotor, Squirrel Cage Induction |
| Air Flow Capacity | 0.45 cu-m/sec |
| Material | Galvanized Steel |
| Fitting Shape | Round |
| Range | Ring Plate Series |
| Weight | 3.4 |
| Frequency Rating | 50 Hz |
| Duct Width | 266mm |
| Brand Name | Fantech |
| Mounting | Wall/Ceiling |
| Item Name | Exhaust Fan |
| EAN/UPC | 932597100090 |
| Cut-out Size | 251-300mm |
| Length | 340 |
| Barcode | 9325971000905 |
| Number of Poles | 2 |
| Speed Settings | Controllable |
| Width Packaging (mm) | 335 |
| Current | 0.63A |
