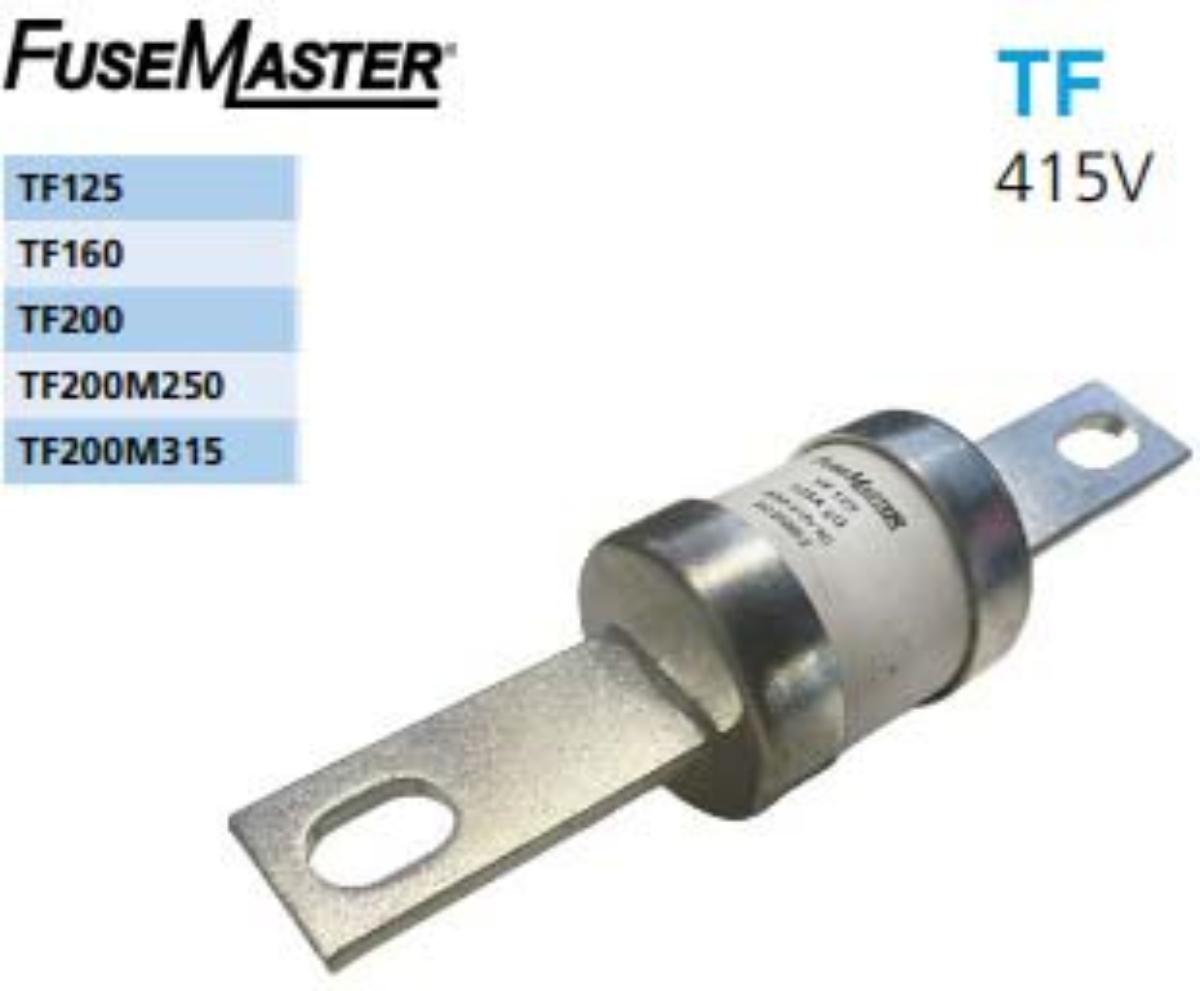

Fusemaster TF200 Fuse Cartridge Fuse Link HRC TF 200 Amp 40x111mm Fixing Centres 500VAC
Code: FUSTF200
Unit of measure:
EACH
Description
Fusemaster TF200 Fuse Cartridge Fuse Link HRC TF 200 Amp 40x111mm Fixing Centres 500VAC
Features:
• TF centre bolted tags-2hole fixing BS fuse links are ideal for safeguarding general industrial applications.
• These fuse links, available in sizes B1 to B4, C1 to C3, and D1, adhere to the standard BS88-2 and IEC 60269-2.
• They fall under the gG breaking range and utilisation categories, ensuring excellent peak and let-through current limitation.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Fuses |
| Size | 40x111mm Fixing Centres |
| Utilisation Category | Class gG |
| Fuse Type | HRC |
| Range | TF |
| Mounting | Bolt-In Centre Tag |
| Brand Name | Fusemaster |
| Box Qty | 5 |
| Length | 136.5mm |
| Breaking Capacity AC (kA) | 80kA |
| Rated Current | 200 Amp |
| Width | 40mm |
| Standards and Approvals | BS88: Part 6 |
