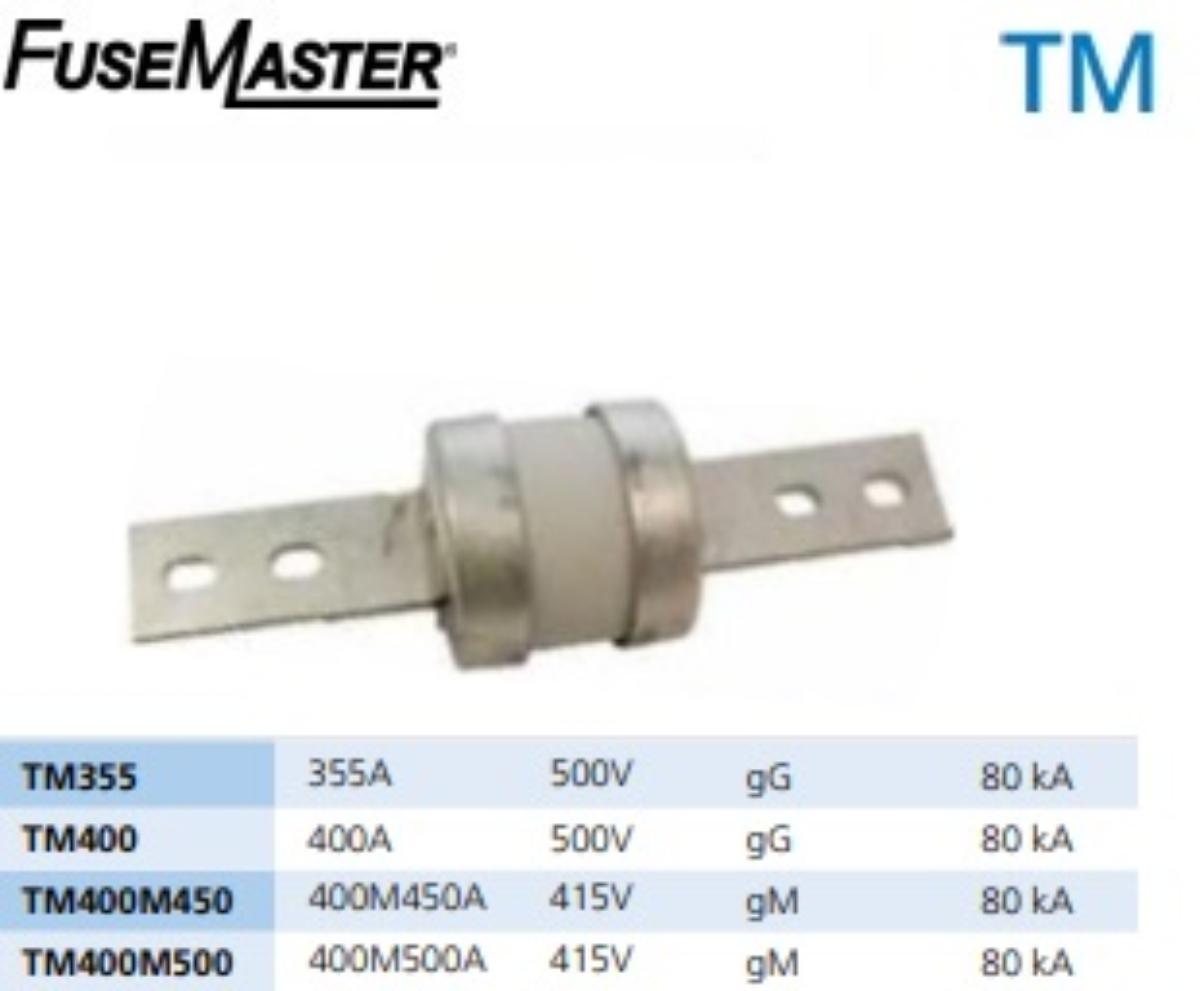

Fusemaster TM400M450 Fuse Cartridge Fuse Link HRC Central Tags 4-hole Fixing , TM400 Amp Motor Start 450 Amp 61.1mmx 133mm Fixing Centres , 500VAC
Code: FUSTM400M450
Unit of measure:
EACH
Description
Fuse Cartridge Fuse Link HRC Central Tags 4-hole Fixing, TM400 Amp Motor Start 450 Amp 61.1mmx 133mm Fixing Centres, 500VAC
Features:
• The element of an HRC fuse is similar to that of a regular fuse.
• It is manufactured from a metal such as silver that is designed to melt at a predetermined temperature.
• When the fuse is operating within it's normal current range, the heat in the element is dissipated without causing any damage to the element.
• HRC Fuses do not deteriorate with age, providing reliable operation.
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Fuses |
| Size | 61.1mmx 133mm Fixing Centres |
| Utilisation Category | Class gM |
| Fuse Type | HRC |
| Range | TM |
| Brand Name | Fusemaster |
| Mounting | Central Tags 4-hole Fixing |
| Box Qty | 1 |
| Length | 212 mm |
| Breaking Capacity AC (kA) | 80kA |
| Rated Current | 400 Amp Motor Start 450 Amp |
| Width | 50.5mm |
| Standards and Approvals | BS88-2, AS 60269-2 |
