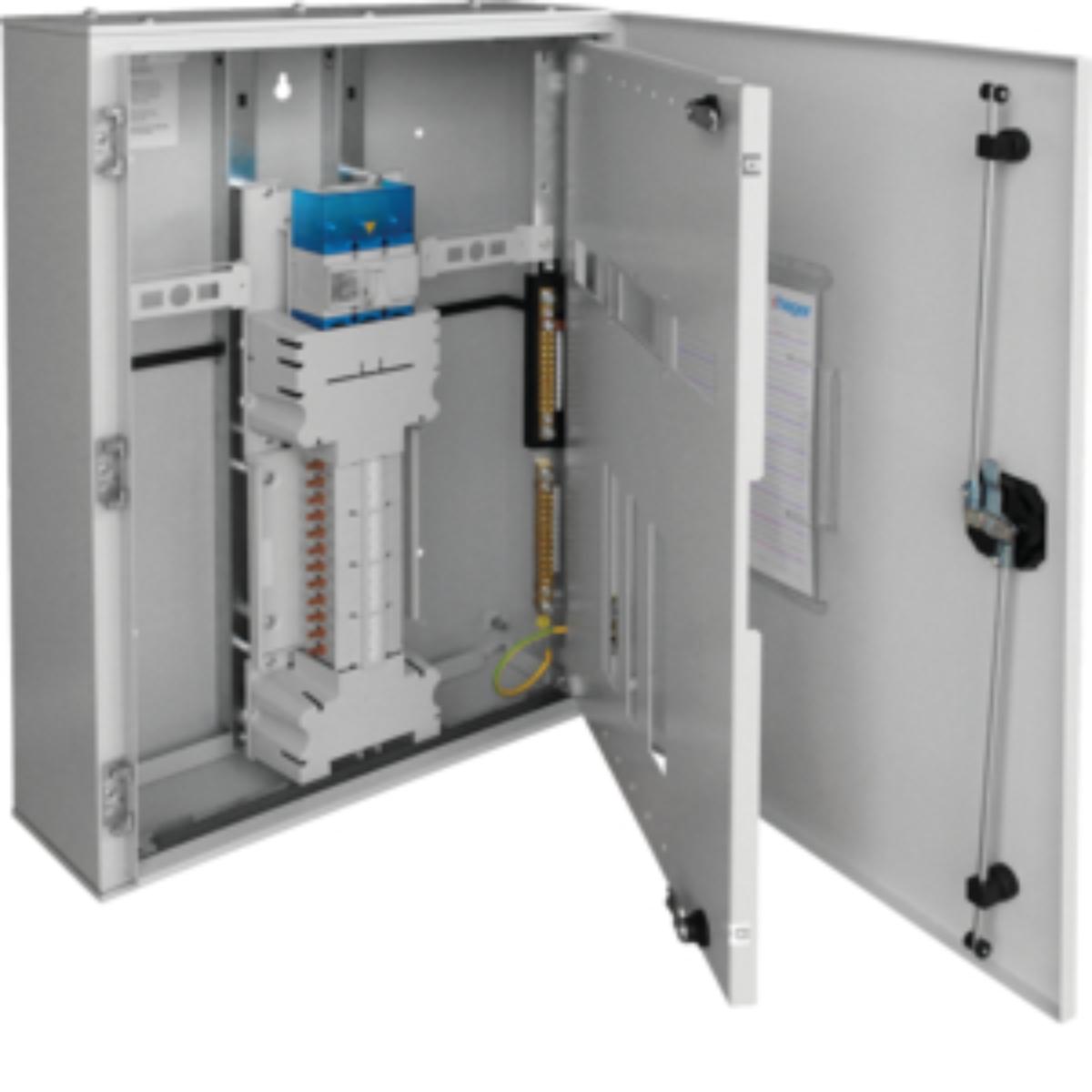

Hager JPA9600S25TW Apex Panelboard, Single Chasis, 96 Pole, 250A, Isolator Twin, 6 Module, 1600mmH x 600mmW x 200mmD, Grey
Code: HAGJPA9600S25TW
Unit of measure:
EACH
Description
Hager JPA9600S25TW Apex Panelboard, Single Chasis, 96 Pole, 250A, Isolator Twin, 6 Module, 1600mmH x 600mmW x 200mmD, Grey
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Complete With Main Switch | Yes |
| Poles | 96 Pole |
| Hum-free | FALSE |
| Over voltage protection | FALSE |
| Cooker group | 200 |
| Suitable for number of poles | FALSE |
| Comes With Earth & Neutral Bar | Yes |
| Lockable | FALSE |
| Single Phase or 3 Phase | 3 Phase |
| Depth | 200 |
| Colour | White |
| Height Packaging (mm) | 1600 |
| Extension possible | FALSE |
| Chassis Or Din | Both |
| Number of phases | 96 |
| Length Packaging (mm) | 600 |
| Snap mounting | FALSE |
| Height | 1600 |
| Housing material | Steel |
| Width | 600 |
| Protection | FALSE |
| Din Rail Size | 6 Pole |
| Main Switch Rating | 250 Amp |
| Range | Apex Series |
| With meter | 200 |
| Rows Of Din Rail | 2 |
| Weight | 64.4Kg |
| Brand Name | Hager |
| Secondary connection | 3 |
| Length | 600mm |
| IP Rating | IP43 |
| Mounting method | Surface mounted |
| Barcode | 9329659001925 |
| Voltage type (operating voltage) | 250 |
| Width Packaging (mm) | 200 |
