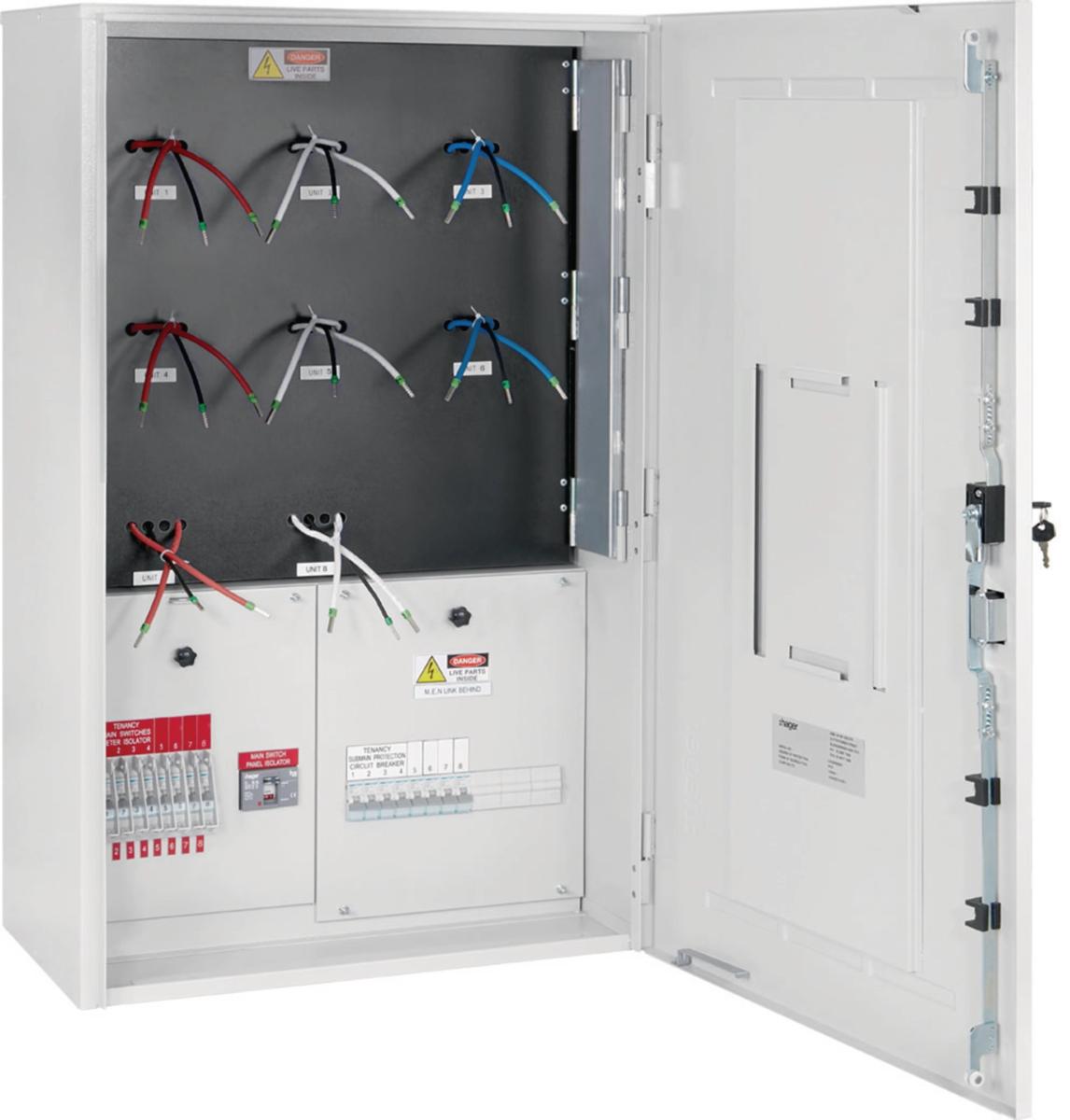

Hager VYGMS8W Group Metering Enclosure, IP23, 8 Meters, Wired, Drilled, SA
Code: HAGVYGMS8W
Unit of measure:
EACH
Description
Hager VYGMS8W Group Metering Enclosure, IP23, 8 Meters, Wired, Drilled, SA
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Number of openings for flange plates | 1 |
| Material plate thickness cabinet | 1.5 |
| RAL-number | 7035 |
| Nominal current (In) | 100 |
| Transparent cover/door | FALSE |
| Depth | 360 |
| Colour | Grey |
| Brand Name | Hager |
| IP Rating | IP23 |
| Impact strength | Other |
| With mounting plate | FALSE |
| Protection class | I |
| Mounting method | Surface mounted |
| Height | 1350 |
| Housing material | Steel |
| Number of conduit inlets | 4 |
| Number of modules | 22 |
| Built-in depth | 356 |
| Width | 625 |
